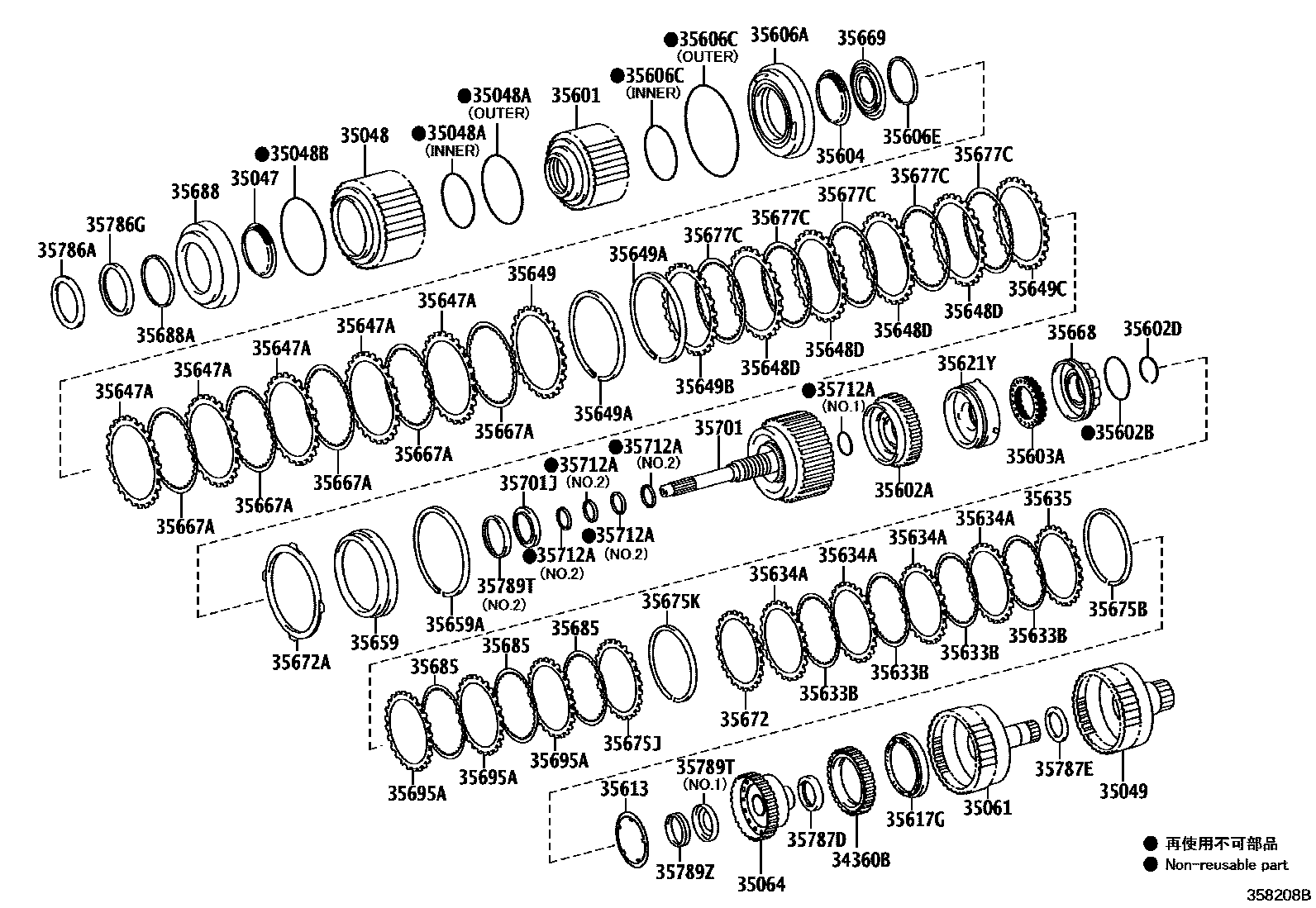

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34360BCLUTCH ASSY, UNDERDRIVE 1 WAY
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35048PISTON SUB-ASSY, REVERSE CLUTCH
35048ARING, O (FOR REVERSE CLUTCH PISTON)
OUTER
INNER
35048BRING, O (FOR REVERSE CLUTCH PISTON)
35049HUB SUB-ASSY, REVERSE CLUTCH
35061HUB SUB-ASSY, FORWARD CLUTCH
35064HUB SUB-ASSY, COAST CLUTCH
35601DRUM SUB-ASSY, CLUTCH
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
INNER
INNER
OUTER
OUTER
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35617GRING, CLUTCH DRUM OIL SEAL
35621YPISTON, COAST CLUTCH
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
T=2.4
T=2.0
35635FLANGE, FORWARD CLUTCH
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=4.4,MARK 0
T=4.5,MARK 1
T=4.6,MARK 2
T=4.7,MARK 3
T=4.8,MARK 4
T=4.9,MARK 5
T=5.0,MARK 6
T=5.1,MARK 7
T=5.2,MARK 8
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=4.0,MARK A
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35648DPLATE, CLUTCH, NO.3
35649FLANGE, REVERSE CLUTCH
T=3.0,MARK 6
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35649BFLANGE, REVERSE CLUTCH
T=3.0,MARK 2
35649CFLANGE, REVERSE CLUTCH
T=2.4,MARK 0
T=2.5,MARK 1
T=2.6,MARK 2
T=2.7,MARK 3
T=2.8,MARK 4
T=2.9,MARK 5
T=3.0,MARK 6
T=3.1,MARK 7
T=3.2,MARK 8
T=3.3,MARK 9
T=3.4,MARK A
T=3.5,MARK B
T=2.8,MARK 0
T=2.9,MARK 1
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
35659SLEEVE, REVERSE CLUTCH REACTION
35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
35667ADISK, DIRECT CLUTCH
35668BALANCER, CLUTCH, NO.1
35669BALANCER, CLUTCH, NO.2
35672PLATE, CLUTCH CUSHION
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675JFLANGE, COAST CLUTCH
MARK 0
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
T=3.0
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=3.7
T=3.8
T=3.9
35675KRING, SNAP (FOR COAST CLUTCH FLANGE)
35677CDISC, REAR CLUTCH
35685DISC, COAST CLUTCH
35688BALANCER, CLUTCH, NO.3
35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
35695APLATE, COAST CLUTCH
35701SHAFT SUB-ASSY, INPUT
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
35712ARING, INPUT SHAFT OIL SEAL
NO.2
NO.1
35786ARACE, THRUST BEARING, NO.1
35786GBEARING,THRUST NEEDLE ROLLER
35787DBEARING, THRUST NEEDLE ROLLER
35787EBEARING, THRUST NEEDLE ROLLER
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
NO.1
NO.2
35789ZBEARING, THRUST NEEDLE ROLLER
53 parts on this diagram · 3 diagrams in section
