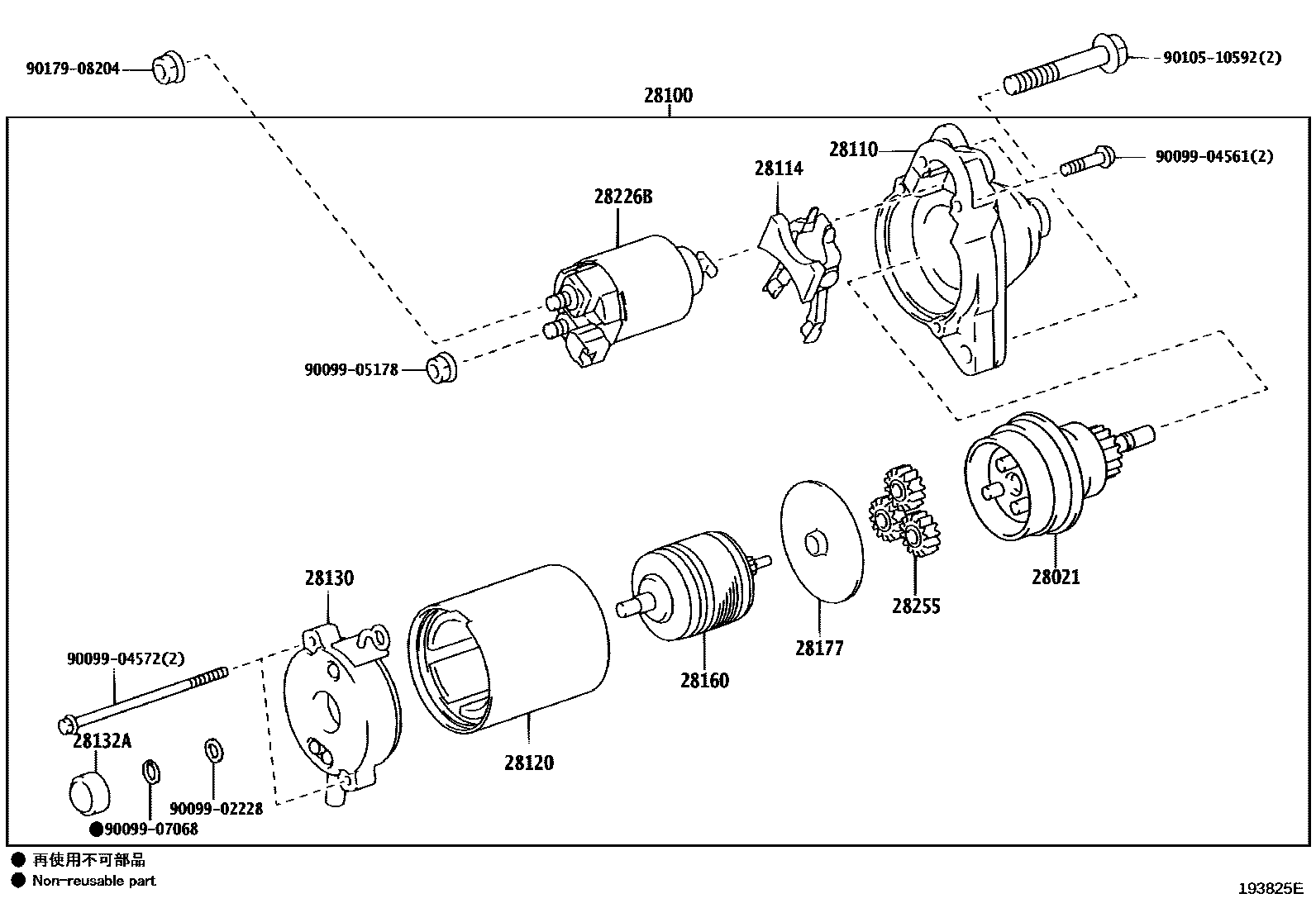

STARTER

0001 112V 1.7KW 0002 112V 1.7KW 0003 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i2GRFSE,4GRFSE..GRL1#201201-201809

28100STARTER ASSY

main28100-31071i2GRFSE,4GRFSE..GRL1#201201-201510

12V 1.7KW

main28100-31220i2GRFKS..GRL16201510-201809

12V 1.7KW

main28100-36150i8ARFTS..ARL10201510-201809

12V 1.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i2GRFSE,4GRFSE..GRL1#201201-201510

main28110-31210i2GRFKS..GRL16201510-201809

main28110-36150i8ARFTS..ARL10201510-201809

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i2GRFSE,4GRFSE..GRL1#201201-201809

28120YOKE ASSY, STARTER

main28120-28060i2GRFSE,4GRFSE..GRL1#201201-201809

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31070i2GRFSE,4GRFSE..GRL1#201201-201809

main28130-36150i8ARFTS..ARL10201510-201809

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRFSE,4GRFSE..GRL1#201201-201809

28160ARMATURE ASSY, STARTER

main28160-21060i2GRFSE,4GRFSE..GRL1#201201-201809

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFSE,4GRFSE..GRL1#201201-201809

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i2GRFSE,4GRFSE..GRL1#201201-201809

28255GEAR, PLANET

main28255-20020i2GRFSE,4GRFSE..GRL1#201201-201809

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9010510592

main90105-10592

9017908204

main90179-08204

18 parts on this diagram · 3 diagrams in section
