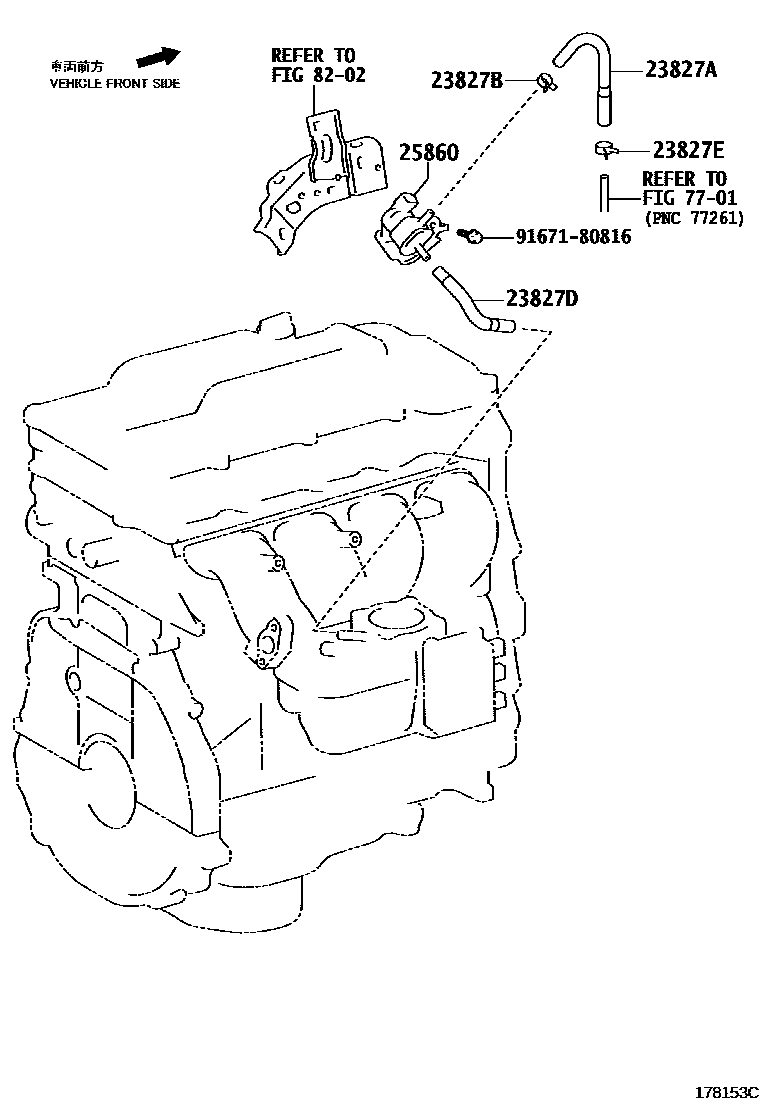

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31150i2GRFSE,4GRFSE..GRL1#¥2,550201201-201510

main23827-31160i2GRFXE..GWL10¥2,240201203-201809

main23827-36110i2ARFSE..AWL10¥750201309-201809

main23827-36150i8ARFTS..ARL10¥820201510-201809

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300i2GR#..GRL16,GWL10¥120201201-201809

main96136-42201i8ARFTS..ARL10¥180201510-201809

23827DHOSE, FUEL VAPOR FEED, NO.2

main23827-36120i2ARFSE..AWL10¥630201309-201809

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2GR#,4GRFSE..GRL1#,GWL10¥170201201-201809

main96137-41901i8ARFTS..ARL10¥160201510-201809

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i2GRFSE,4GRFSE..GRL1#¥3,840201201-201510

main25860-31090i2GRFXE..GWL10¥3,480201203-201809

main25860-36080i2ARFSE..AWL10¥3,480201309-201809

7701

8202

9167180816

main91671-80816¥80

8 parts on this diagram · 4 diagrams in section
