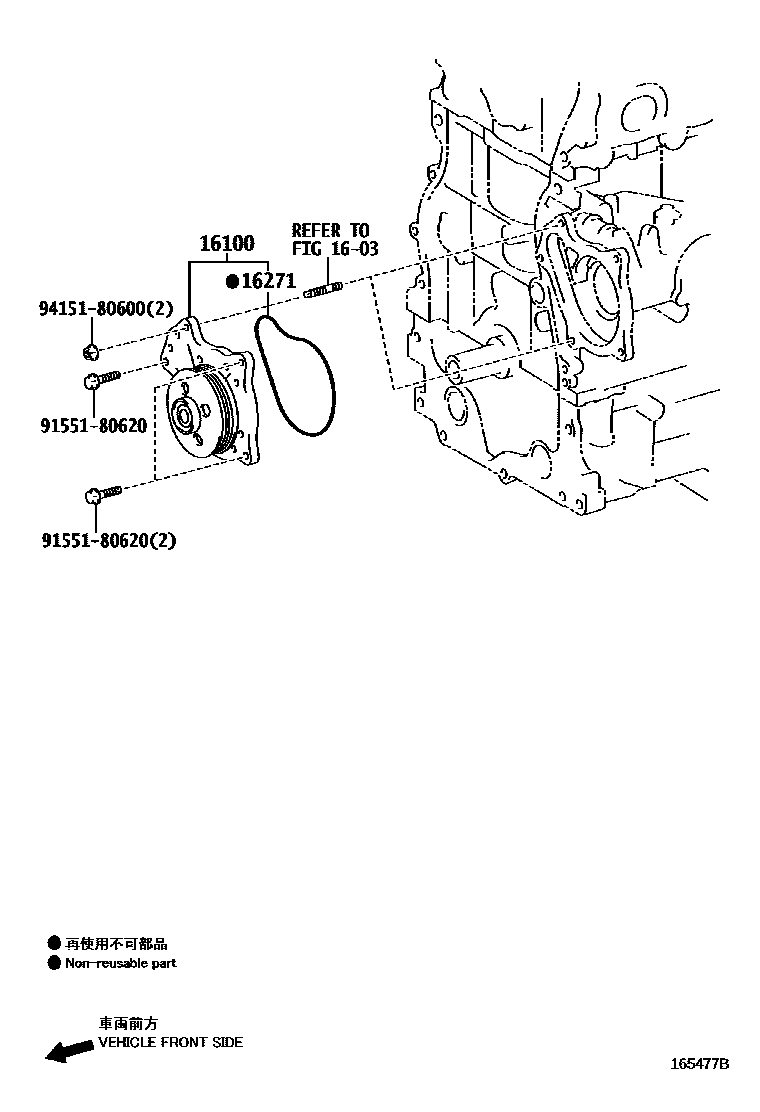

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39436i2GR#,4GRFSE..GRL1#,GWL10201201-201809

main16100-39575i2ARFSE..AWL10201309-201809

main16100-39595i8ARFTS..ARL10201510-201809

main16100-39615i2GRFKS..GRL16201510-201809

sub16100-39616

16271GASKET, WATER PUMP

main16271-31020i2GRFXE..GWL10201201-201809

main16271-31050i2GRFKS..GRL16201510-201809

main16271-36030i2ARFSE..AWL10201309-201809

main16271-36040i8ARFTS..ARL10201510-201809

9155180620

main91551-80620

9415180600

main94151-80600

5 parts on this diagram · 5 diagrams in section
