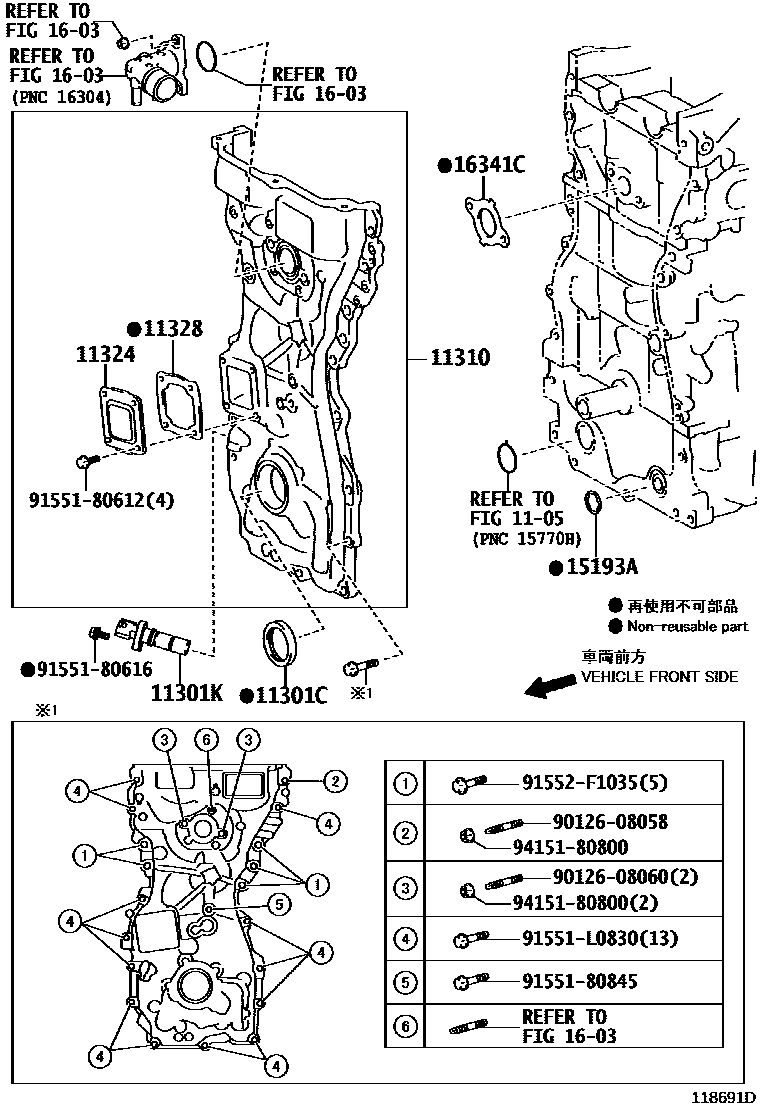

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFSE..AWL10¥400201409-201809

sub90311-42061¥400

main90311-42043i2ARFSE..AWL10¥400201309-201312

sub90311-42051¥400

main90311-42045i2GR#,4GRFSE..GRL1#,GWL10¥520201201-201809

main90311-42051i8ARFTS..ARL10¥400201312-201809

main90311-42052i2GRFKS..GRL16¥520201510-201809

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFSE..AWL10¥3,870201309-201809

main90919-05088i8ARFTS..ARL10¥4,130201510-201809

11310COVER ASSY, TIMING CHAIN

main11310-31080i2GRFKS..GRL16¥31,900201510-201809

main11310-36050i2ARFSE..AWL10¥19,700201309-201809

main11310-36080i8ARFTS..ARL10¥19,700201510-201809

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GR#,4GRFSE..GRL1#,GWL10¥660201201-201809

main11324-36010i2ARFSE..AWL10¥660201309-201809

main11324-36020i8ARFTS..ARL10¥660201510-201809

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GR#,4GRFSE..GRL1#,GWL10¥400201201-201809

main11328-36020i2ARFSE..AWL10¥460201309-201809

main11328-36030i8ARFTS..ARL10¥220201510-201809

15193AGASKET, OIL PUMP

main15193-31020i2GRFKS..GRL16¥220201510-201809

main15197-36010i2ARFSE..AWL10¥340201309-201809

1603

16341CGASKET, WATER OUTLET

main16341-36010i2ARFSE..AWL10¥440201309-201809

9012608058

main90126-08058¥80

9012608060

main90126-08060¥210

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

9155180845

main91551-80845¥110

91551L0830

main91551-L0830¥80

91552F1035

main91552-F1035¥120

9415180800

main94151-80800¥80
