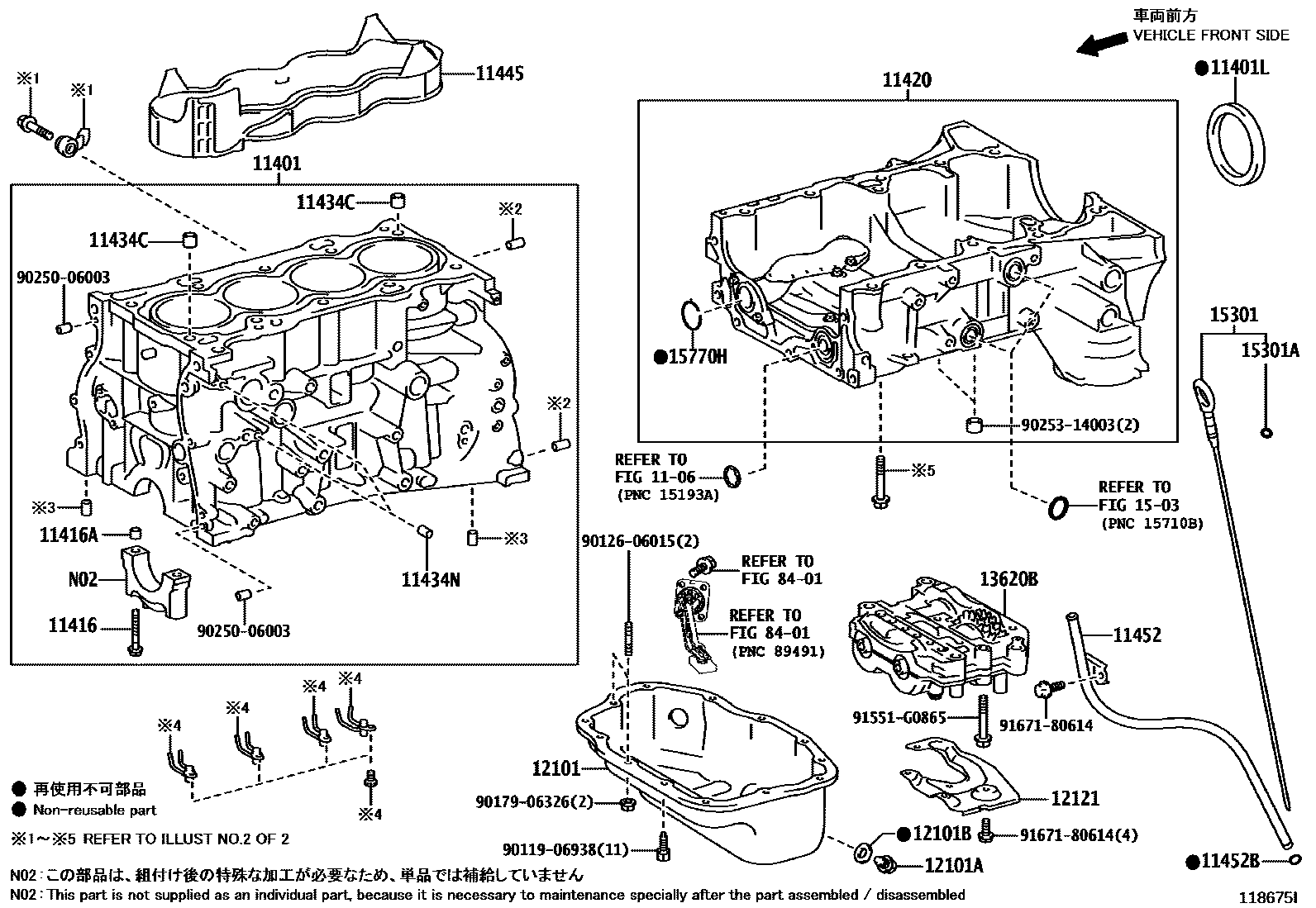

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1106

11401BLOCK SUB-ASSY, CYLINDER

main11401-39775i2GR#..GRL15,GWL10¥317,000201201-201403

sub11401-39776¥317,000

main11401-39776i2GR#..GRL15,GWL10¥317,000201403-201411

sub11401-39777¥264,000

sub13011-31143¥21,400

main11401-39777i2GRFXE..GWL10¥264,000201411-201809

sub11401-39778¥264,000

main11401-80758i4GRFSE..GRL11¥268,000201203-201211

sub11401-80810¥268,000

main11401-80810i4GRFSE..GRL11¥268,000201211-201403

sub11401-80817¥222,000

main11401-80817i4GRFSE..GRL11¥222,000201403-201510

main11401-80836i2GRFKS..GRL16¥316,000201510-201607

sub11401-80842¥263,000

main11401-80842i2GRFKS..GRL16¥263,000201607-201809

sub11401-80863¥198,000

main11410-39145i2ARFSE..AWL10¥263,000201309-201312

sub11410-39146¥165,000

main11410-39146i2ARFSE..AWL10¥165,000201312-201809

main11410-39215i8ARFTS..ARL10¥139,000201510-201809

11401LSEAL, ENGINE REAR OIL

main90311-89013i2ARFSE..AWL10¥1,390201309-201408

sub90311-89015¥1,390

main90311-89014i8ARFTS..ARL10¥1,270201510-201809

main90311-89015i2ARFSE..AWL10¥1,390201409-201809

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02153i2GR#..GRL16,GWL10¥240201201-201809

main90910-02154i8ARFTS..ARL10¥240201510-201708

main90910-02173i2ARFSE..AWL10¥240201309-201809

main90910-02197i8ARFTS..ARL10¥240201709-201809

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i2ARFSE..AWL10¥140201309-201809

main90253-14003i8ARFTS..ARL10¥140201510-201809

11420CRANKCASE ASSY, STIFFENING

main11420-36030i2ARFSE..AWL10¥33,500201309-201809

main11420-36070i8ARFTS..ARL10¥33,500201510-201809

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i2GR#,4GRFSE..GRL1#,GWL10¥140201201-201809

L=18,OD=8

main90253-15001i2ARFSE..AWL10¥120201309-201809

L=14,OD=15

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i2ARFSE..AWL10¥90201309-201809

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-31050i2GRFKS..GRL16¥1,700201510-201809

main11445-36010i2ARFSE..AWL10¥1,700201309-201809

main11445-36040i8ARFTS..ARL10¥1,700201510-201809

11452GUIDE, OIL LEVEL GAGE

main11452-31040i2GRFXE..GWL10¥1,380201203-201809

main11452-31050i2GRFSE..GRL15¥1,310201201-201809

main11452-36030i2ARFSE..AWL10¥1,670201309-201809

main11452-36070i8ARFTS..ARL10¥2,080201510-201809

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GR#,4GRFSE..GRL1#,GWL10¥140201201-201809

main96723-19010i8ARFTS..ARL10¥140201510-201809

main96741-19010i2ARFSE..AWL10¥250201309-201809

12101PAN SUB-ASSY, OIL

main12101-31101i2GRFXE..GWL10¥38,000201203-201809

main12101-31110i2GRFSE..GRL15¥50,300201201-201510

main12101-31250i2GRFKS..GRL16¥38,100201510-201809

main12101-36060i2ARFSE..AWL10¥10,500201309-201809

main12101-36100i8ARFTS..ARL10¥10,500201510-201809

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GR#..GRL16,GWL10¥160201201-201809

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GR#,4GRFSE..GRL1#,GWL10¥90201201-201809

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31060i4GRFSE..GRL11¥4,360201203-201510

main12121-31080i2GR#..GRL15,GWL10¥3,300201201-201809

main12121-36040i2ARFSE..AWL10¥1,320201309-201809

13620BBALANCER ASSY, ENGINE

main13620-36030i2ARFSE..AWL10¥31,300201309-201809

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31070i2GRFSE..GRL15¥750201201-201809

main15301-31080i4GRFSE..GRL11¥750201203-201510

main15301-31120i2GRFXE..GWL10¥990201203-201809

main15301-36040i2ARFSE..AWL10¥1,200201309-201312

sub15301-36041¥750

main15301-36041i2ARFSE,8ARFTS..ARL10,AWL10¥750201401-201809

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2ARFSE..AWL10¥140201201-201809

15770HGASKET(FOR OIL PIPE)

main11496-36030i8ARFTS..ARL10¥340201510-201809

main15157-36010i2ARFSE..AWL10¥340201309-201809

8401

9011906938

main90119-06938¥60

9012606015

main90126-06015¥110

9017906326

main90179-06326¥60

9025006003

main90250-06003¥90

9025314003

main90253-14003¥140

91551G0865

main91551-G0865¥100

9167180614

main91671-80614¥60

28 parts on this diagram · 10 diagrams in section
