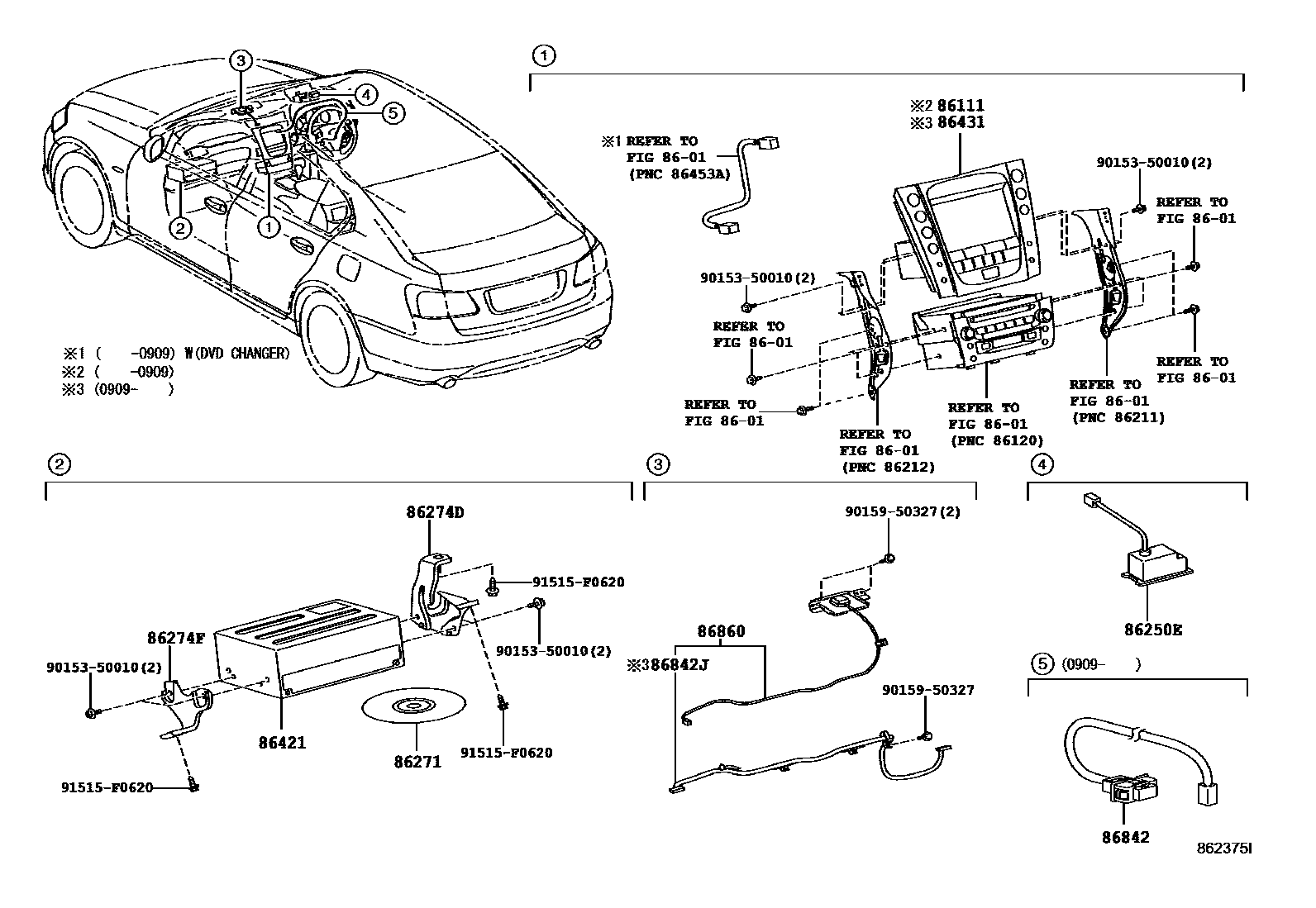

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601

86111MULTI-DISPLAY

main86111-30420-C0iGRS190,UZS190..GCC200501-200607

DENSO,BLACK,TRIM1#,2#

main86111-30420-E0iGRS190,UZS190..GCC200501-200607

DENSO,ORCHID BROWN,TRIM0#

main86111-30440-C0iGRS190,UZS190..RHD200501-200607

DENSO,BLACK,TRIM1#,2#

main86111-30440-E0iGRS190,UZS190..RHD200501-200607

DENSO,ORCHID BROWN,TRIM0#

main86111-30610-C0iGRS190,UZS190..LHD..EUR200501-200607

DENSO,BLACK,TRIM1#,2#

sub86111-30611

main86111-30610-E0iGRS190,UZS190..LHD..EUR200501-200607

DENSO,ORCHID BROWN,TRIM0#

sub86111-30611

main86111-30630-C0iGRS190,UZS190..LHD..EUR200607-200709

DENSO,BLACK,TRIM1#,2#

sub86111-30631

main86111-30630-E0iGRS190,UZS190..LHD..EUR200607-200709

DENSO,ORCHID BROWN,TRIM0#

sub86111-30631

main86111-30650-C0iGRS190,UZS190..RHD200607-200709

DENSO,BLACK,TRIM1#,2#

sub86111-30651

main86111-30650-E0iGRS190,UZS190..RHD200607-200709

DENSO,ORCHID BROWN,TRIM0#

sub86111-30651

main86111-30690-C0iGRS190,UZS190..GCC200607-200709

DENSO,BLACK,TRIM1#,2#

sub86111-30691

main86111-30690-E0iGRS190,UZS190..GCC200607-200709

DENSO,ORCHID BROWN,TRIM0#

sub86111-30691

main86111-30750-C0iGRS190,URS190..LHD..EUR200709-200801

DENSO,BLACK,TRIM1#,2#

sub86111-30751

main86111-30750-E0iGRS190,URS190..LHD..EUR200709-200801

DENSO,ORCHID BROWN,TRIM0#

sub86111-30751

main86111-30751-C0iGRS19#,URS190..LHD..EUR200802-200909

DENSO,BLACK,TRIM1#,2#

sub86111-30752

main86111-30751-E0iGRS19#,URS190..LHD..EUR200802-200909

DENSO,ORCHID BROWN,TRIM0#

sub86111-30752

main86111-30770-C0iGRS190..RHD200709-200909

DENSO,BLACK,TRIM1#,2#

sub86111-30771

main86111-30770-E0iURS190..RHD200709-200909

DENSO,ORCHID BROWN,TRIM0#

sub86111-30771

main86111-30810-C0iGRS190,UZS190..GCC200709-200801

DENSO,BLACK,TRIM1#,2#

sub86111-30811

main86111-30810-E0iGRS190,UZS190..GCC200709-200801

DENSO,ORCHID BROWN,TRIM0#

sub86111-30811

main86111-30811-C0iGRS190,URS190,UZS190..GCC200802-200909

DENSO,BLACK,TRIM1#,2#

sub86111-30812

main86111-30811-E0iGRS190,URS190,UZS190..GCC200802-200909

DENSO,ORCHID BROWN,TRIM0#

sub86111-30812

main86111-30820-C0iUZS190..EUR200709-200809

DENSO,BLACK,TRIM1#,2#

sub86111-30821

main86111-30820-E0iUZS190..EUR200709-200809

DENSO,ORCHID BROWN,TRIM0#

sub86111-30821

main86111-30A50-C0iURS190..RHD200809-200909

DENSO,WITH(*EMV & DVD NAVIGATION SYSTEM),BLACK,TRIM1#,2#

main86111-30A50-C0iURS190..RHD200809-200909

DENSO,BLACK,TRIM1#,2#

main86111-30A50-E0iURS190..RHD200809-200909

DENSO,ORCHID BROWN,TRIM0#

main86111-30A50-E0iURS190..RHD200809-200909

DENSO,WITH(*EMV & DVD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0#

86250EMICROPHONE ASSY, AMPLIFIER

main86250-30050iGRS190,UZS190..RHD200607-201112

main86250-30080iGRS190,UZS190..LHD200607-201112

main86250-60020iGRS190,UZS190..LHD200501-200607

main86250-60060iGRS190,UZS190..RHD200501-200607

86271DISC, DISC PLAYER

main86271-53010

main86807-0N011

main86271-53011

main86271-64012

main86271-53012

main86807-0N012

main86807-0N013

main86271-53013

main86807-0W021

main86807-0W022

main86807-0W023

main86807-0W024

main86807-0W025

main86807-0W026

main86271-53030

main86271-53031

main86807-0W032

main86807-0W033

main86807-0W035

main86807-0W036

main86271-33060

main86271-33061

main86271-33062

main86271-33063

main86271-33064

main86271-33070

main86807-0W071

main86271-47072

main86271-47073

main86271-60180

main86271-60181

main86271-48181

main86271-48220

main86271-48221

main86271-30640

main86271-30650

main86271-30651

main86271-50871

main86271-30880

main86271-50A60

main86271-50A61

main86271-50A62

86274DBRACKET, DISC PLAYER

main86274-30400iUZS190..EUR200709-200809

main86274-30420iURS190..RHD200809-200909

86274FBRACKET, DISC PLAYER, NO.2

main86274-30410iUZS190..EUR200709-200809

main86274-30430iURS190..RHD200809-200909

86421BOARD, NAVIGATION MODULE

main86421-33020iUZS190..EUR200709-200808

CHINA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM)

main86421-53030iURS190..RHD200809-200909

86431DISPLAY, DISPLAY & NAVIGATION MODULE

main86431-30100-C0iURS190..RHD200909-201007

DENSO,BLACK,TRIM1#,2#

sub86431-30101

main86431-30100-C0iURS190..RHD200909-201007

DENSO,WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM1#,2#

sub86431-30101

main86431-30100-E0iURS190..RHD200909-201007

DENSO,ORCHID BROWN,TRIM0#

sub86431-30101

main86431-30100-E0iURS190..RHD200909-201007

DENSO,WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0#

sub86431-30101

main86431-30240-C0iGRS190..GEN200909-201112

DENSO,BLACK,TRIM1#,2#

main86431-30240-C0iGRS190..RHD..EUR200909-201112

DENSO,THAILAND SPEC,BLACK,TRIM1#,2#

main86431-30240-C0iGRS190..RHD..EUR200909-201112

DENSO,BRUNEI SPEC,BLACK,TRIM1#,2#

main86431-30240-C0iGRS190..RHD..EUR200909-201112

DENSO,MALAYSIA SPEC,BLACK,TRIM1#,2#

main86431-30240-C0iGRS190..RHD..EUR200909-201112

DENSO,INDONESIA SPEC,BLACK,TRIM1#,2#

main86431-30240-E0iGRS190..RHD..EUR200909-201112

DENSO,THAILAND SPEC,ORCHID BROWN,TRIM0#

main86431-30240-E0iGRS190..RHD..EUR200909-201112

DENSO,BRUNEI SPEC,ORCHID BROWN,TRIM0#

main86431-30240-E0iGRS190..RHD..EUR200909-201112

DENSO,MALAYSIA SPEC,ORCHID BROWN,TRIM0#

main86431-30240-E0iGRS190..RHD..EUR200909-201112

DENSO,ORCHID BROWN,TRIM0#

main86431-30240-E0iGRS190..RHD..EUR200909-201112

DENSO,INDONESIA SPEC,ORCHID BROWN,TRIM0#

main86431-30250-C0iGRS19#,URS190..LHD..EUR200909-201112

DENSO,BLACK,TRIM1#,2#

main86431-30250-E0iGRS19#,URS190..LHD..EUR200909-201112

DENSO,ORCHID BROWN,TRIM0#

main86431-30300-C0iGRS190..RHD..EUR200909-201112

DENSO,BLACK,TRIM1#,2#

main86431-30300-C0iGRS190..GEN200909-201112

DENSO,NEW ZEALAND SPEC,BLACK,TRIM1#,2#

main86431-30300-C0iGRS190..GEN200909-201112

DENSO,AUSTRALIA SPEC,BLACK,TRIM1#,2#

main86431-30300-E0iGRS190..GEN200909-201112

DENSO,NEW ZEALAND SPEC,ORCHID BROWN,TRIM0#

main86431-30300-E0iGRS190..GEN200909-201112

DENSO,ORCHID BROWN,TRIM0#

main86431-30300-E0iGRS190..GEN200909-201112

DENSO,AUSTRALIA SPEC,ORCHID BROWN,TRIM0#

main86431-30310-C0iGRS190,URS190..GCC200909-201112

DENSO,BLACK,TRIM1#,2#

main86431-30310-E0iGRS190,URS190..GCC200909-201112

DENSO,ORCHID BROWN,TRIM0#

86842WIRE, NAVIGATION, NO.1

main86842-30380iURS190..RHD200909-201007

AUSTRALIA SPEC

main86842-30380iURS190..RHD200909-201007

NEW ZEALAND SPEC

86842JWIRE, NAVIGATION, NO.2

main86842-30370iURS190..RHD201007

WITH(*EMV & DVD NAVIGATION SYSTEM)

86860ANTENNA ASSY, NAVIGATION

main86860-30180iUZS190..EUR200709-200809

WITH(*EMV & DVD NAVIGATION SYSTEM)&WITH(BACK GUIDE MONITOR)

main86860-30190iURS190..RHD200809-200909

main86860-30270iURS190..RHD201007

WITH(*EMV & DVD NAVIGATION SYSTEM)

main86860-30290iURS190..RHD200909-201007

9015350010

main90153-50010

9015950327

main90159-50327

91515F0620

main91515-F0620

14 parts on this diagram · 2 diagrams in section
