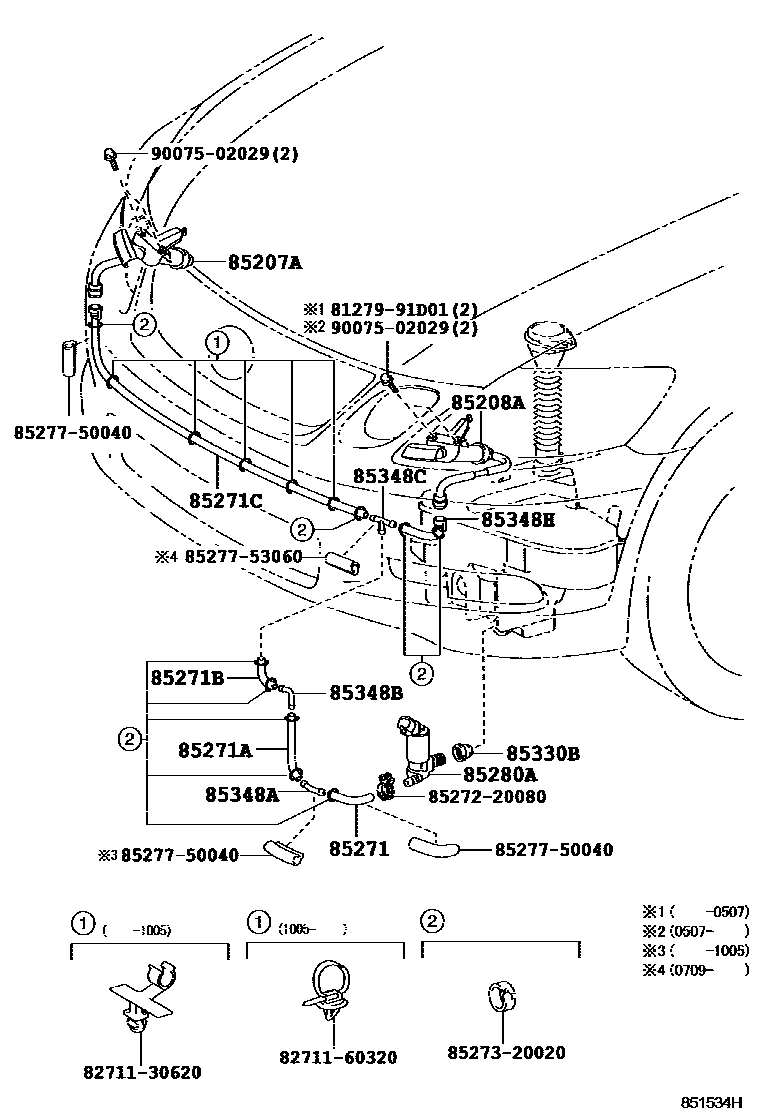

HEADLAMP CLEANER

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-30030iGRS190,UZS190200501-200508

sub85207-30031

main85207-30031iGRS190,UZS190200508-201112

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-30030iGRS190,UZS190200501-200508

sub85208-30031

main85208-30031iGRS190,UZS190200508-201112

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-20171iGRS190,UZS190200501-200709

L=60

85271AHOSE, HEADLAMP CLEANER, NO.2

main90445-14046iGRS190,UZS190200501-200709

L=140

85271BHOSE, HEADLAMP CLEANER, NO.3

main90445-14071iGRS190,UZS190200501-200709

L=50

85271CHOSE, HEADLAMP CLEANER, NO.4

main85275-60340iGRS190,UZS190200501-200709

L=1190

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-30040iGRS190,UZS190200501-201112

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iGRS190,UZS190200501-201112

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85279-14160iGRS190,UZS190200501-200709

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85379-95A09iGRS190,UZS190200501-200709

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85352-12010iGRS190,UZS190200501-200709

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

main85279-33050iGRS190,UZS190200501-200709

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

8271130620WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30620

8271160320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60320

8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20080

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

8527750040HOSE, HEADLAMP CLEANER, C

main85277-50040

8527753060HOSE, HEADLAMP CLEANER, C

main85277-53060

9007502029

main90075-02029

20 parts on this diagram · 1 diagram in section
