ELECTRONIC FUEL INJECTION SYSTEM

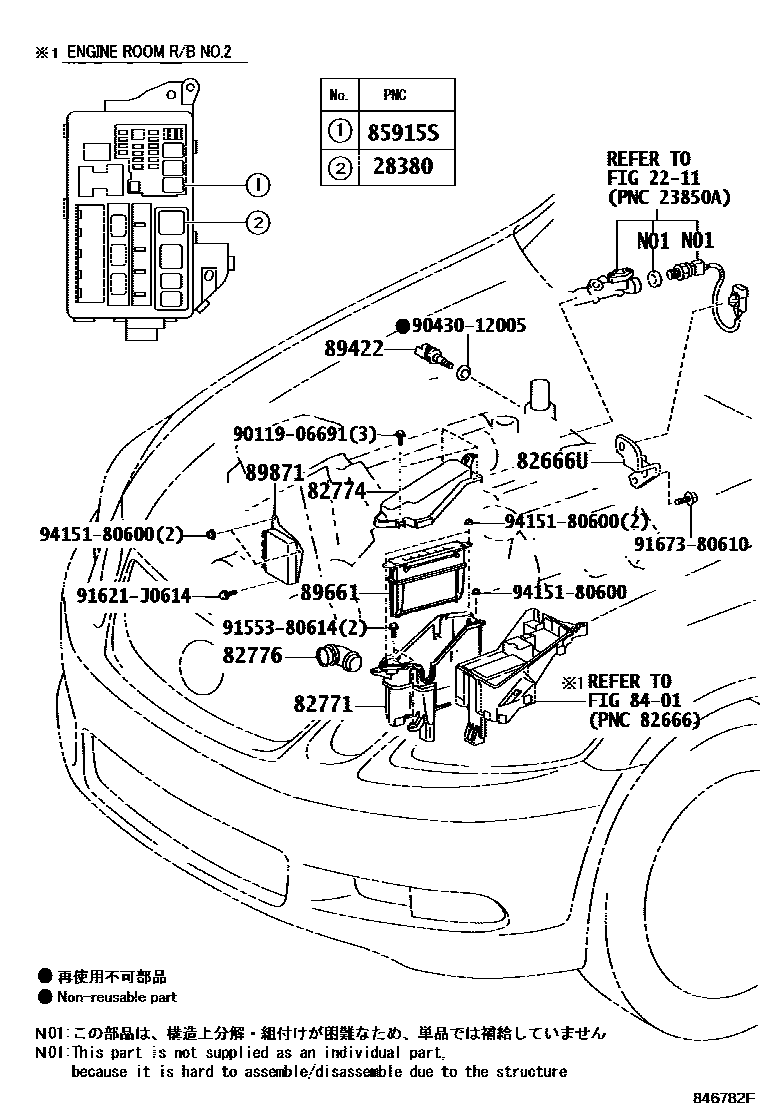

Parts diagram
2211
28380RELAY ASSY, FUEL PUMP
main90987-03003i200501-201112
82666UHOLDER, CONNECTOR
main82666-30780i200501-200709
82771BOX, ENGINE ROOM ECU
main82771-30040i200501-201112
main82771-30060i200709-201112
82774COVER, ENGINE ROOM ECU
main82774-30050i200501-200709
main82774-30060i200709
82776DUCT, ENGINE ROOM ECU OUTLET
main82776-30090i200501-200809
main82776-30100i200501-200709
main82776-30110i200709
8401
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
main90987-02027i200501-201112
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-30030i200501-200809
main89422-33030i200501-200709
89661COMPUTER, ENGINE CONTROL
main89661-30A00i200501-200504
TURKEY SPEC
sub89661-30A11
main89661-30A00i200501-200504
RUSSIA SPEC
sub89661-30A11
main89661-30A01i200505-200602
RUSSIA SPEC
main89661-30A01i200505-200602
TURKEY SPEC
main89661-30A02i200602-200607
TURKEY SPEC
sub89661-30A03
main89661-30A02i200602-200607
RUSSIA SPEC
sub89661-30A03
main89661-30A02i200604-200607
SOUTH AFRICA SPEC
sub89661-30A03
main89661-30A30i200501-200509
HONG KONG SPEC
main89661-30A31i200509-200607
HONG KONG SPEC
main89661-30A40i200501-200504
CHINA SPEC
sub89661-30A41
main89661-30A41i200505-200509
CHINA SPEC
main89661-30A42i200509-200607
CHINA SPEC
main89661-30A50i200501-200505
AUSTRALIA SPEC
sub89661-30A51
main89661-30A50i200501-200505
NEW ZEALAND SPEC
sub89661-30A51
main89661-30A51i200506-200602
NEW ZEALAND SPEC
main89661-30A51i200506-200602
AUSTRALIA SPEC
main89661-30A52i200602-200607
NEW ZEALAND SPEC
sub89661-30A53
main89661-30A52i200602-200607
AUSTRALIA SPEC
sub89661-30A53
main89661-30A60i200501-200504
sub89661-30A61
main89661-30A61i200505-200509
main89661-30A62i200509-200607
main89661-30B60i200501-200607
RUSSIA SPEC
main89661-30B60i200501-200607
CHINA SPEC
main89661-30D50i200709-200809
REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING
main89661-30D50i200607-200709
REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC
main89661-30D80i200607-200709
NEW ZEALAND SPEC
main89661-30D80i200607-200709
AUSTRALIA SPEC
main89661-30E10i200607-200709
main89661-30E20i200607-200809
main89661-30E50i200607-200709
sub89661-30E51
main89661-30E60i200607-200709
SOUTH AFRICA SPEC
sub89661-30E61
main89661-30E60i200607-200709
RUSSIA SPEC
sub89661-30E61
main89661-30E60i200607-200709
TURKEY SPEC
sub89661-30E61
main89661-30E60i200607-200709
SINGAPORE SPEC
sub89661-30E61
main89661-30E70i200607-200709
AUSTRALIA SPEC
sub89661-30E71
main89661-30E70i200607-200709
NEW ZEALAND SPEC
sub89661-30E71
main89661-30E90i200607-200709
RUSSIA SPEC
main89661-30E90i200607-200709
TURKEY SPEC
main89661-30E90i200607-200709
REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC
main89661-30E90i200709-200809
main89661-30F00i200607-200709
REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC
main89661-30F10i200607-200709
REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC
main89661-30F20i200607-200709
main89661-30J70i200709-200809
main89661-30J80i200709-200809
SOUTH AFRICA SPEC
main89661-30J80i200802-200809
CHILE SPEC
main89661-30J80i200709-200809
SINGAPORE SPEC
main89661-30J90i200709-200809
AUSTRALIA SPEC
main89661-30J90i200709-200809
NEW ZEALAND SPEC
main89661-30K10i200709-200809
sub89661-30K11
main89661-30K40i200709-200809
NEW ZEALAND SPEC
sub89661-30K41
main89661-30K40i200709-200809
AUSTRALIA SPEC
sub89661-30K41
main89661-30K50i200709-200809
TAIWAN SPEC
sub89661-30K51
main89661-30K70i200709-200809
REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC
main89661-30K80i200709-200809
REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC
main89661-30K90i200709-200809
main89661-30L70i200809-200909
sub89661-30L71
main89661-30L90i200809-200909
AUSTRALIA SPEC
sub89661-30L91
main89661-30L90i200809-200909
NEW ZEALAND SPEC
sub89661-30L91
main89661-30M00i200809-200909
TAIWAN SPEC
sub89661-30M01
main89661-30M20i200809-201007
REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC
main89661-30M30i200809-201112
main89661-30M90i200809-200909
main89661-30N00i200809-200909
SINGAPORE SPEC
main89661-30N00i200809-200909
CHILE SPEC
main89661-30N00i200809-200909
SOUTH AFRICA SPEC
main89661-30N10i200809-200909
AUSTRALIA SPEC
main89661-30N10i200809-200909
NEW ZEALAND SPEC
main89661-30N20i200809-200909
REGULATION COMPLIANCE LABEL & NAME PLATE-DOMESTIC&ARGENTINA SPEC
main89661-30N20i200809-200909
REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC
main89661-30N30i200809-200909
main89661-30N40i200809-200909
main89661-30P40i200909-201109
sub89661-30P41
main89661-30P41i201110-201112
main89661-30P60i200909-201109
NEW ZEALAND SPEC
sub89661-30P61
main89661-30P60i200909-201109
AUSTRALIA SPEC
sub89661-30P61
main89661-30P61i201110-201112
AUSTRALIA SPEC
main89661-30P61i201110-201112
NEW ZEALAND SPEC
main89661-30P70i200909-201109
TAIWAN SPEC
sub89661-30P71
main89661-30P71i201110-201112
TAIWAN SPEC
main89661-30R40i200907-201112
main89661-30R50i201007-201112
KAZAKHSTAN SPEC
main89661-30R50i200907-201007
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)
main89661-30R70i200909-201112
main89661-30R80i200909-201007
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)
main89661-30R80i201007-201112
SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC
main89661-30R80i200909-201007
CHILE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)
main89661-30R80i200909-201112
SOUTH AFRICA SPEC
main89661-30R80i200909-201112
SINGAPORE SPEC
main89661-30R80i201007-201112
CHILE SPEC
main89661-30R80i201007-201112
KAZAKHSTAN SPEC
main89661-30R90i200909-201112
AUSTRALIA SPEC
main89661-30R90i200909-201112
NEW ZEALAND SPEC
main89661-30S00i200909-201112
REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC
main89661-30S10i200909-201112
main89661-30S20i200909-201112
main89661-30S90i201007-201112
HONG KONG SPEC
main89666-30290i200501-200607
main89666-30310i200501-200607
main89666-30320i200501-200607
AUSTRALIA SPEC
main89666-30320i200501-200607
NEW ZEALAND SPEC
main89666-30370i200501-200504
sub89666-30371
main89666-30371i200505-200602
main89666-30372i200602-200607
sub89666-30373
89871DRIVER, INJECTOR
main89871-30030i200501-201110
sub89871-30031
main89871-30031i201111-201112
main89871-50010i200709-201112
main89871-53010i200907-201112
9011906691
main90119-06691
9043012005
main90430-12005
9155380614
main91553-80614
91621J0614
main91621-J0614
9167380610
main91673-80610
9415180600
main94151-80600

17 parts on this diagram · 3 diagrams in section
