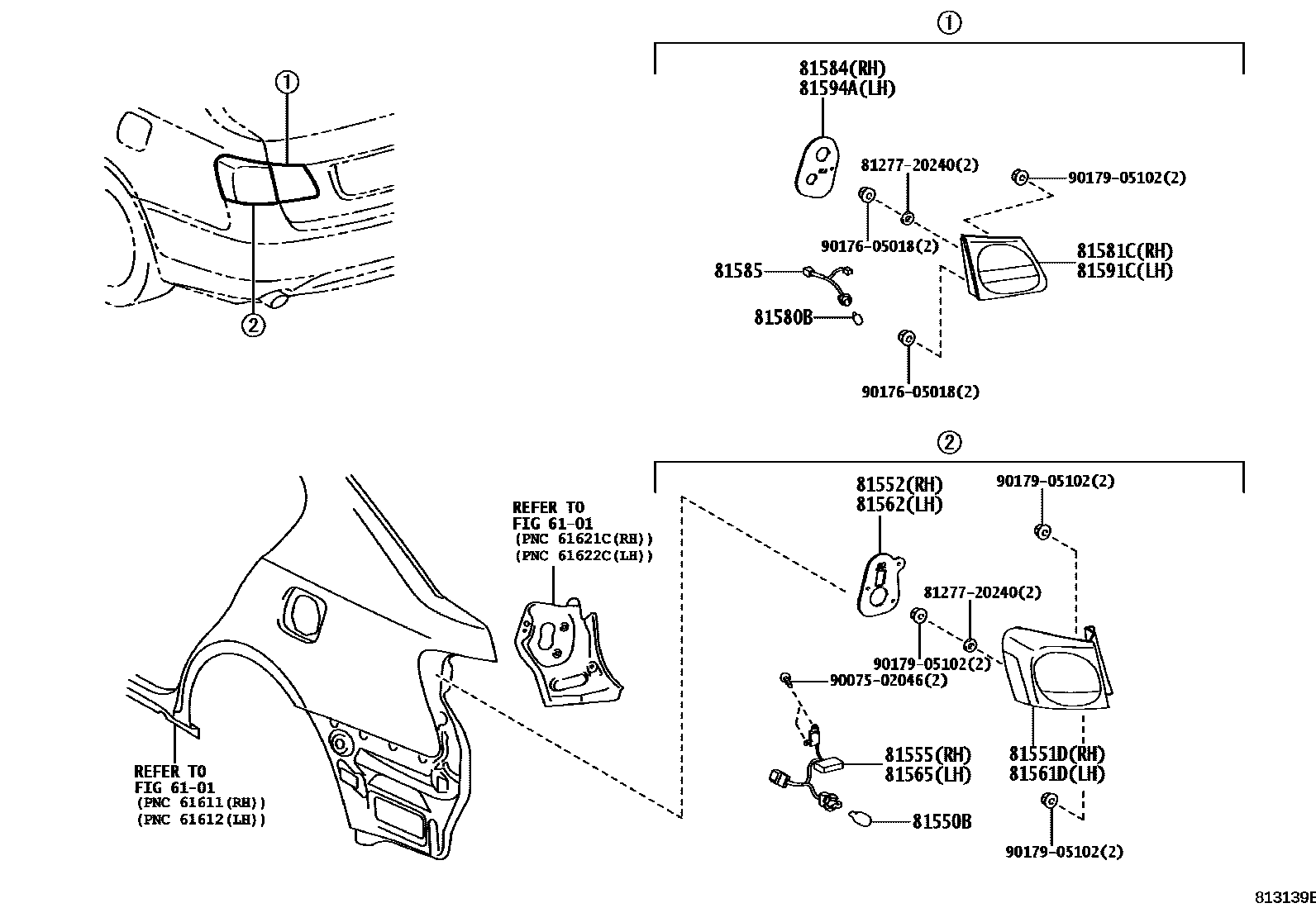

REAR COMBINATION LAMP

0001 1 0002 1W(FOG LAMP)

6101

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-15021iGRS19#,URS190,UZS190200501-201112

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-30A40iGRS190,UZS190200501-200611

sub81551-30A41

main81551-30A41iGRS190,UZS190200612-200709

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-30A40iGRS190,UZS190200501-200709

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30A40iGRS190,UZS190200501-200510

main81555-30A41iGRS19#,URS190,UZS190200510-200709

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-30A30iGRS190,UZS190200501-200611

sub81561-30A31

main81561-30A31iGRS19#,URS190,UZS190200612-200709

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-30A40iGRS190,UZS190200501-200709

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-30A30iGRS190,UZS190200501-200510

main81565-30A31iGRS190,UZS190200510-200709

81580BBULB (FOR REAR LAMP)

main90981-11059iGRS190..GCC200501-201112

12V 16W,CHINA SPEC,NO.1

main90981-11059iGRS190..GCC200501-201112

12V 16W

main90981-11059iGRS190,UZS190..GCC200501-201112

12V 16W,NO.1

main90981-11059iGRS190,URS190,UZS190..GCC200709-201112

12V 16W,PHILIPPINE SPEC,NO.1

main90981-13043iGRS190,UZS190..EUR,GEN200501-201112

12V 21W,CHINA SPEC,NO.2

main90981-13043iURS190,UZS190..GCC200709-201112

12V 21W,PHILIPPINE SPEC,NO.2

main90981-13043iGRS190,UZS190..EUR,GEN200501-201112

12V 21W,NO.2

81581CLENS AND BODY, REAR LAMP, RH

main81581-30280iGRS190,URS190,UZS190..GCC200501-200709

main81581-30330iGRS190..GCC200501-200611

CHINA SPEC

sub81581-30331

main81581-30331iURS190,UZS190..GCC200709

PHILIPPINE SPEC

main81581-30331iGRS190..GCC200612-200709

CHINA SPEC

main81581-30331iGRS190..GCC200612-200709

PHILIPPIN SPEC

81584PACKING, REAR LAMP RH

main81584-30280iGRS190,UZS190200501-200709

81585SOCKET & WIRE, REAR LAMP

main81585-30280iGRS190,URS190,UZS190..GCC200501-200709

main81585-30330iURS190,UZS190..GCC200501-200709

CHINA SPEC

main81585-30330iGRS19#,URS190,UZS190..EUR,GEN200709

PHILIPPINE SPEC

81591CLENS, REAR LAMP, LH

main81591-30220iGRS190,URS190,UZS190..GCC200501-200709

main81591-30270iGRS190,UZS190..EUR,GEN200501-200611

CHINA SPEC

sub81591-30271

main81591-30271iGRS190,UZS190..EUR,GEN200612-200709

CHINA SPEC

main81591-30271iGRS190,UZS190..EUR,GEN200612-200709

PHILIPPIN SPEC

main81591-30271iGRS190..GCC200709

PHILIPPINE SPEC

81594AGASKET, REAR LAMP LH

main81594-30220iGRS19#,URS190,UZS190200501-200709

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9007502046

main90075-02046

9017605018

main90176-05018

9017905102

main90179-05102

18 parts on this diagram · 2 diagrams in section
