EPC Data

FRONT SEAT & SEAT TRACK

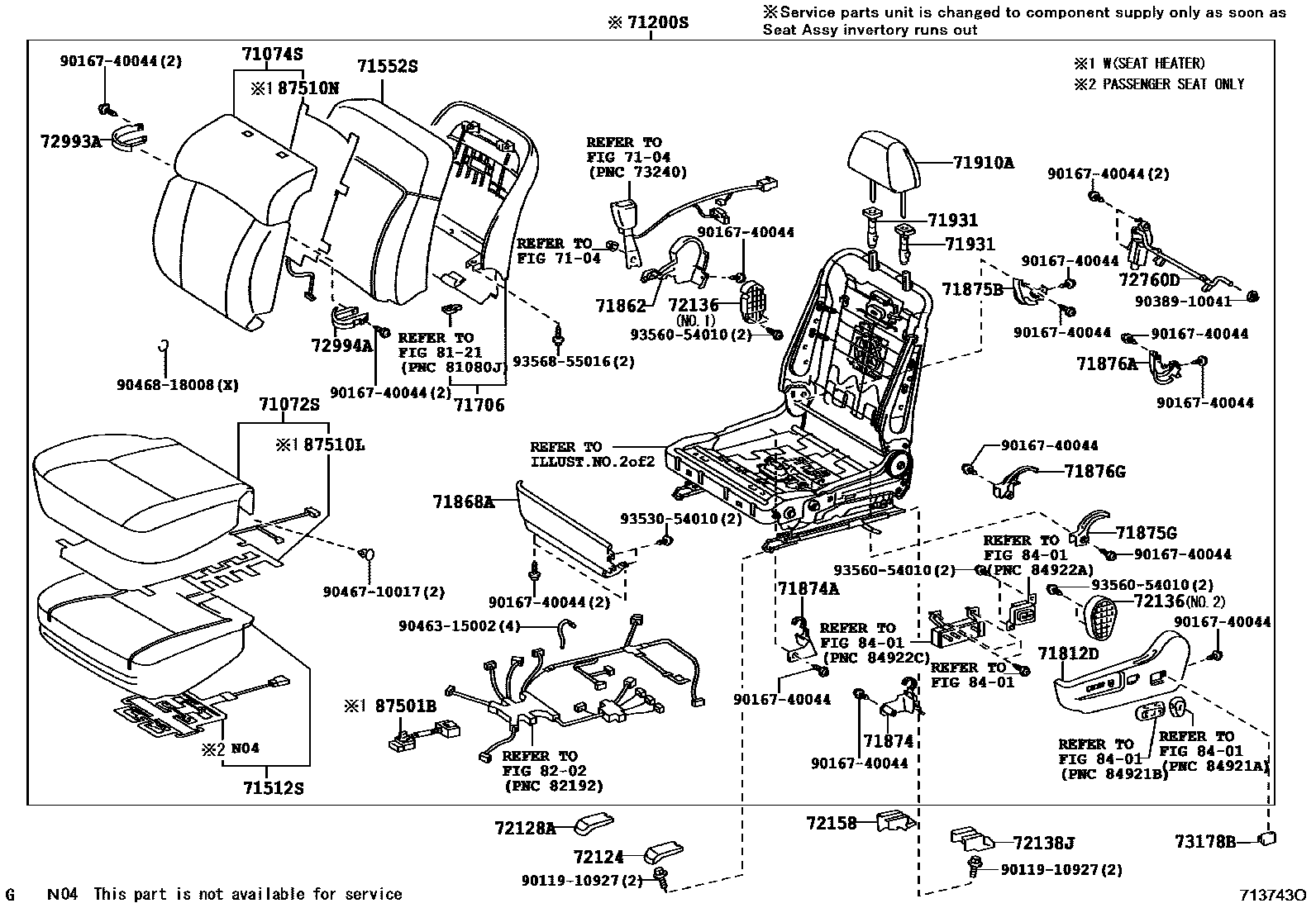

Parts diagram
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-30B20-C0i200501-200704
BLACK,TRIM2#
sub71072-30B21
main71072-30B40-C0i200501-200704
BLACK,TRIM2#
main71072-30C40-C0i200704-200709
BLACK,TRIM2#
sub71072-30C41
main71072-30C50-C0i200704-200709
BLACK,TRIM2#
sub71072-30C51
main71072-30D20-A1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
sub71072-30D21
main71072-30D20-A1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub71072-30D21
main71072-30D20-A1i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub71072-30D21
main71072-30D20-A1i200709-200909
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
sub71072-30D21
main71072-30D20-A1i200709-200909
NEW IVORY,TRIM0#
sub71072-30D21
main71072-30D20-B1i200709-200909
LT.GRAY,TRIM1#
sub71072-30D21
main71072-30D20-B1i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71072-30D21
main71072-30D20-B1i200709-200909
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71072-30D21
main71072-30D20-B1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71072-30D21
main71072-30D20-B1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71072-30D21
main71072-30D20-C1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71072-30D21
main71072-30D20-C1i200709-200909
BLACK,TRIM2#
sub71072-30D21
main71072-30D20-C1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71072-30D21
main71072-30D20-C1i200709-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71072-30D21
main71072-30D20-C1i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71072-30D21
main71072-30D30-A1i200709-200908
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
sub71072-30D31
main71072-30D30-A1i200709-200908
NEW IVORY,TRIM0#
sub71072-30D31
main71072-30D30-A1i200709-200908
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub71072-30D31
main71072-30D30-B1i200709-200908
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D30-B1i200709-200908
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D30-B1i200709-200908
LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D30-C1i200709-200908
BLACK,TRIM2#
sub71072-30D31
main71072-30D30-C1i200709-200908
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71072-30D31
main71072-30D30-C1i200709-200908
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71072-30D31
main71072-30D31-A5i200909-201007
IVORY,TRIM0#
sub71072-30D31
main71072-30D31-A5i200909-201007
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71072-30D31
main71072-30D31-A5i200909-201007
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71072-30D31
main71072-30D31-A6i201007-201105
IVORY,TRIM0#
sub71072-30D31
main71072-30D31-A6i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71072-30D31
main71072-30D31-A6i201007-201105
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71072-30D31
main71072-30D31-A7i201105-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71072-30D31
main71072-30D31-A7i201105-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71072-30D31
main71072-30D31-A7i201105-201112
IVORY,TRIM0#
sub71072-30D31
main71072-30D31-B4i200909-201007
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D31-B4i200909-201007
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D31-B4i200909-201007
LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D31-B5i201007-201105
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D31-B5i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D31-B5i201007-201105
LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D31-B6i201105-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D31-B6i201105-201112
LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D31-B6i201105-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71072-30D31
main71072-30D31-C4i200909-201007
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71072-30D31
main71072-30D31-C4i200909-201007
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71072-30D31
main71072-30D31-C4i200909-201007
BLACK,TRIM2#
sub71072-30D31
main71072-30D31-C5i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71072-30D31
main71072-30D31-C5i201007-201105
BLACK,TRIM2#
sub71072-30D31
main71072-30D31-C5i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM20
sub71072-30D31
main71072-30D31-C5i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71072-30D31
main71072-30D31-C5i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
sub71072-30D31
main71072-30D31-C6i201105-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71072-30D31
main71072-30D31-C6i201105-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71072-30D31
main71072-30D31-C6i201105-201112
BLACK,TRIM2#
sub71072-30D31
main71072-30D60-A0i200709-200908
IVORY,TRIM0#
sub71072-30D62
sub71072-30D61
main71072-30D60-B0i200709-200908
LT.GRAY,TRIM1#
sub71072-30D62
sub71072-30D61
main71072-30D60-C0i200709-200908
BLACK,TRIM2#
sub71072-30D62
sub71072-30D61
main71072-30D61-A2i200909-201105
IVORY,TRIM0#
sub71072-30D61
sub71072-30P10
main71072-30D61-A3i201105-201112
IVORY,TRIM0#
sub71072-30D61
sub71072-30P10
main71072-30D61-B2i200909-201105
LT.GRAY,TRIM1#
sub71072-30D61
sub71072-30P10
main71072-30D61-B3i201105-201112
LT.GRAY,TRIM1#
sub71072-30D61
sub71072-30P10
main71072-30D61-C2i200909-201105
BLACK,TRIM2#
sub71072-30D61
sub71072-30P10
main71072-30D61-C3i201105-201112
BLACK,TRIM2#
sub71072-30D61
sub71072-30P10
main71072-30D70-A0i200709-200908
IVORY,TRIM0#
sub71072-30D72
sub71072-30D71
main71072-30D70-B0i200709-200908
LT.GRAY,TRIM1#
sub71072-30D72
sub71072-30D71
main71072-30D70-C0i200709-200908
BLACK,TRIM2#
sub71072-30D72
sub71072-30D71
main71072-30D71-A1i200909-201007
IVORY,TRIM0#
sub71072-30D71
sub71072-30P20
main71072-30D71-A2i201007-201105
IVORY,TRIM0#
sub71072-30D71
sub71072-30P20
main71072-30D71-A3i201105-201112
IVORY,TRIM0#
sub71072-30D71
sub71072-30P20
main71072-30D71-B1i200909-201007
LT.GRAY,TRIM1#
sub71072-30D71
sub71072-30P20
main71072-30D71-B2i201007-201105
LT.GRAY,TRIM1#
sub71072-30D71
sub71072-30P20
main71072-30D71-B3i201105-201112
LT.GRAY,TRIM1#
sub71072-30D71
sub71072-30P20
main71072-30D71-C1i200909-201007
BLACK,TRIM2#
sub71072-30D71
sub71072-30P20
main71072-30D71-C2i201007-201105
BLACK,TRIM2#
sub71072-30D71
sub71072-30P20
main71072-30D71-C3i201105-201112
BLACK,TRIM2#
sub71072-30D71
sub71072-30P20
main71072-30E30-A3i200909-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71072-30E30
main71072-30E30-A3i200909-201105
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71072-30E30
main71072-30E30-A3i200909-201105
IVORY,TRIM0#
sub71072-30E30
main71072-30E30-A4i201105-201112
IVORY,TRIM0#
sub71072-30E30
main71072-30E30-A4i201105-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71072-30E30
main71072-30E30-A4i201105-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71072-30E30
main71072-30E30-B1i200909-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71072-30E30
main71072-30E30-B1i200909-201105
LT.GRAY,TRIM1#
sub71072-30E30
main71072-30E30-B1i200909-201105
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71072-30E30
main71072-30E30-B2i201105-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71072-30E30
main71072-30E30-B2i201105-201112
LT.GRAY,TRIM1#
sub71072-30E30
main71072-30E30-B2i201105-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71072-30E30
main71072-30E30-C2i200909-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM20
sub71072-30E30
main71072-30E30-C2i200909-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71072-30E30
main71072-30E30-C2i200909-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
sub71072-30E30
main71072-30E30-C2i200909-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71072-30E30
main71072-30E30-C2i200909-201105
BLACK,TRIM2#
sub71072-30E30
main71072-30E30-C3i201105-201112
BLACK,TRIM2#
sub71072-30E30
main71072-30E30-C3i201105-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71072-30E30
main71072-30E30-C3i201105-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71072-30E30
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-30A80-C0i200501-200709
BLACK,TRIM2#
sub71074-30A81
main71074-30B90-C0i200501-200709
BLACK,TRIM2#
sub71074-30B91
main71074-30D90-A1i200709-200909
IVORY,TRIM0#
sub71074-30D92
main71074-30D90-B1i200709-200909
LT.GRAY,TRIM1#
sub71074-30D92
main71074-30D90-C1i200709-200909
BLACK,TRIM2#
sub71074-30D92
main71074-30E00-A1i200709-200909
IVORY,TRIM0#
sub71074-30E02
main71074-30E00-B1i200709-200909
LT.GRAY,TRIM1#
sub71074-30E02
main71074-30E00-C1i200709-200909
BLACK,TRIM2#
sub71074-30E02
main71074-30E10-A0i200709-200909
NEW IVORY,TRIM0#
sub71074-30E11
main71074-30E10-A0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
sub71074-30E11
main71074-30E10-A0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub71074-30E11
main71074-30E10-A0i200709-200909
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
sub71074-30E11
main71074-30E10-A0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub71074-30E11
main71074-30E10-B0i200709-200909
LT.GRAY,TRIM1#
sub71074-30E11
main71074-30E10-B0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71074-30E11
main71074-30E10-B0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71074-30E11
main71074-30E10-B0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71074-30E11
main71074-30E10-B0i200709-200909
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71074-30E11
main71074-30E10-C0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71074-30E11
main71074-30E10-C0i200709-200909
BLACK,TRIM2#
sub71074-30E11
main71074-30E10-C0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71074-30E11
main71074-30E10-C0i200709-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71074-30E11
main71074-30E10-C0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71074-30E11
main71074-30E20-A0i200709-200909
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
main71074-30E20-A0i200709-200909
NEW IVORY,TRIM0#
main71074-30E20-A0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
main71074-30E20-B0i200709-200909
LT.GRAY,TRIM1#
main71074-30E20-B0i200709-200909
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main71074-30E20-B0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
main71074-30E20-C0i200709-200909
BLACK,TRIM2#
main71074-30E20-C0i200709-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71074-30E20-C0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
main71074-30F30-A0i200909-201007
IVORY,TRIM0#
sub71074-30F30
main71074-30F30-A0i200909-201007
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71074-30F30
main71074-30F30-A0i200909-201007
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71074-30F30
main71074-30F30-A1i201007-201105
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71074-30F30
main71074-30F30-A1i201007-201105
IVORY,TRIM0#
sub71074-30F30
main71074-30F30-A1i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71074-30F30
main71074-30F30-A1i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71074-30F30
main71074-30F30-A2i201105-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71074-30F30
main71074-30F30-A2i201105-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71074-30F30
main71074-30F30-A2i201105-201112
IVORY,TRIM0#
sub71074-30F30
main71074-30F30-B0i200909-201007
LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-B0i200909-201007
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-B0i200909-201007
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-B1i201007-201105
LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-B1i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-B1i201007-201105
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-B1i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-B2i201105-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-B2i201105-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-B2i201105-201112
LT.GRAY,TRIM1#
sub71074-30F30
main71074-30F30-C0i200909-201007
BLACK,TRIM2#
sub71074-30F30
main71074-30F30-C0i200909-201007
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71074-30F30
main71074-30F30-C0i200909-201007
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71074-30F30
main71074-30F30-C1i201007-201105
BLACK,TRIM2#
sub71074-30F30
main71074-30F30-C1i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
sub71074-30F30
main71074-30F30-C1i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71074-30F30
main71074-30F30-C1i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM20
sub71074-30F30
main71074-30F30-C1i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71074-30F30
main71074-30F30-C1i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
sub71074-30F30
main71074-30F30-C2i201105-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71074-30F30
main71074-30F30-C2i201105-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71074-30F30
main71074-30F30-C2i201105-201112
BLACK,TRIM2#
sub71074-30F30
main71074-30F60-A0i200909-201007
IVORY,TRIM0#
sub71074-30F60
sub71074-30F61
main71074-30F60-A1i201007-201105
IVORY,TRIM0#
sub71074-30F60
sub71074-30F61
main71074-30F60-A2i201105-201112
IVORY,TRIM0#
sub71074-30F60
sub71074-30F61
main71074-30F60-B0i200909-201007
LT.GRAY,TRIM1#
sub71074-30F60
sub71074-30F61
main71074-30F60-B1i201007-201105
LT.GRAY,TRIM1#
sub71074-30F60
sub71074-30F61
main71074-30F60-B2i201105-201112
LT.GRAY,TRIM1#
sub71074-30F60
sub71074-30F61
main71074-30F60-C0i200909-201007
BLACK,TRIM2#
sub71074-30F60
sub71074-30F61
main71074-30F60-C1i201007-201105
BLACK,TRIM2#
sub71074-30F60
sub71074-30F61
main71074-30F60-C2i201105-201112
BLACK,TRIM2#
sub71074-30F60
sub71074-30F61
71200SSEAT ASSY, FRONT LH
main71200-30B90-C2i200501-200704
BLACK,TRIM2#
sub71200-30B92
main71200-30B91-C2i200704-200709
BLACK,TRIM2#
sub71200-3AV90
main71200-30C30-C2i200501-200704
BLACK,TRIM2#
sub71200-30C32
main71200-30C31-C2i200704-200709
BLACK,TRIM2#
sub71200-3AW00
main71200-30K40-A2i200909-201007
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71200-30K40
main71200-30K40-A2i200909-201007
IVORY,TRIM0#
sub71200-30K40
main71200-30K40-A4i201007-201105
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71200-30K40
main71200-30K40-A4i201007-201105
IVORY,TRIM0#
sub71200-30K40
main71200-30K40-A5i201105-201112
IVORY,TRIM0#
sub71200-30K40
main71200-30K40-A5i201105-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71200-30K40
main71200-30K40-B1i200909-201007
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71200-30K40
main71200-30K40-B1i200909-201007
LT.GRAY,TRIM1#
sub71200-30K40
main71200-30K40-B3i201007-201105
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71200-30K40
main71200-30K40-B3i201007-201105
LT.GRAY,TRIM1#
sub71200-30K40
main71200-30K40-B4i201105-201112
LT.GRAY,TRIM1#
sub71200-30K40
main71200-30K40-B4i201105-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71200-30K40
main71200-30K40-C1i200909-201007
BLACK,TRIM2#
sub71200-30K40
main71200-30K40-C1i200909-201007
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71200-30K40
main71200-30K40-C4i201007-201105
BLACK,TRIM2#
sub71200-30K40
main71200-30K40-C4i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71200-30K40
main71200-30K40-C5i201105-201112
BLACK,TRIM2#
sub71200-30K40
main71200-30K40-C5i201105-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71200-30K40
main71200-30N60-A0i200709-200809
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71200-30N60-A0i200709-200809
IVORY,TRIM0#
main71200-30N60-B0i200709-200809
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71200-30N60-B0i200709-200809
GRAY,TRIM1#
main71200-30N60-C0i200709-200809
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71200-30N60-C0i200709-200809
BLACK,TRIM2#
main71200-30N61-A0i200809-200909
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71200-30N61-A0i200809-200909
IVORY,TRIM0#
main71200-30N61-B0i200809-200909
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71200-30N61-B0i200809-200909
GRAY,TRIM1#
main71200-30N61-C0i200809-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71200-30N61-C0i200809-200909
BLACK,TRIM2#
main71200-30P30-A0i200709-200809
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71200-30P30-A0i200709-200809
IVORY,TRIM0#
main71200-30P30-B0i200709-200809
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71200-30P30-B0i200709-200809
GRAY,TRIM1#
main71200-30P30-C0i200709-200809
BLACK,TRIM2#
main71200-30P30-C0i200709-200809
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71200-30P31-A0i200809-200909
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71200-30P31-A0i200809-200909
IVORY,TRIM0#
main71200-30P31-B0i200809-200909
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71200-30P31-B0i200809-200909
GRAY,TRIM1#
main71200-30P31-C0i200809-200909
BLACK,TRIM2#
main71200-30P31-C0i200809-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71200-30Q21-C0i200907-200909
BLACK,TRIM2#
main71200-30Q40-A0i200709-200809
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71200-30Q42
main71200-30Q40-A0i200709-200809
IVORY,TRIM0#
sub71200-30Q42
main71200-30Q40-B0i200709-200809
GRAY,TRIM1#
sub71200-30Q42
main71200-30Q40-B0i200709-200809
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
sub71200-30Q42
main71200-30Q40-C0i200709-200809
BLACK,TRIM2#
sub71200-30Q42
main71200-30Q40-C0i200709-200809
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71200-30Q42
main71200-30Q50-A1i200709-200809
IVORY,TRIM0#
sub71200-30Q53
main71200-30Q50-B1i200709-200809
GRAY,TRIM1#
sub71200-30Q53
main71200-30Q50-C1i200709-200809
BLACK,TRIM2#
sub71200-30Q53
main71200-30Q51-A0i200809-200909
IVORY,TRIM0#
sub71200-3AW10
main71200-30Q51-B0i200809-200909
GRAY,TRIM1#
sub71200-3AW10
main71200-30Q51-C0i200809-200909
BLACK,TRIM2#
sub71200-3AW10
main71200-30Q60-A1i200709-200809
IVORY,TRIM0#
sub71200-30Q63
main71200-30Q60-B1i200709-200809
GRAY,TRIM1#
sub71200-30Q63
main71200-30Q60-C1i200709-200809
BLACK,TRIM2#
sub71200-30Q63
main71200-30Q61-A0i200809-200909
IVORY,TRIM0#
sub71200-3AW20
main71200-30Q61-B0i200809-200909
GRAY,TRIM1#
sub71200-3AW20
main71200-30Q61-C0i200809-200909
BLACK,TRIM2#
sub71200-3AW20
main71200-30R00-A2i200909-201007
IVORY,TRIM0#
sub71200-30R00
main71200-30R00-A4i201007-201105
IVORY,TRIM0#
sub71200-30R00
main71200-30R00-A5i201105-201112
IVORY,TRIM0#
sub71200-30R00
main71200-30R00-B1i200909-201007
LT.GRAY,TRIM1#
sub71200-30R00
main71200-30R00-B3i201007-201105
LT.GRAY,TRIM1#
sub71200-30R00
main71200-30R00-B4i201105-201112
LT.GRAY,TRIM1#
sub71200-30R00
main71200-30R00-C1i200909-201007
BLACK,TRIM2#
sub71200-30R00
main71200-30R00-C3i201007-201105
BLACK,TRIM2#
sub71200-30R00
main71200-30R00-C4i201105-201112
BLACK,TRIM2#
sub71200-30R00
main71200-30R20-A2i200909-201007
IVORY,TRIM0#
sub71200-30R20
sub71200-30R21
main71200-30R20-A4i201007-201105
IVORY,TRIM0#
sub71200-30R20
sub71200-30R21
main71200-30R20-A5i201105-201112
IVORY,TRIM0#
sub71200-30R20
sub71200-30R21
main71200-30R20-B1i200909-201007
LT.GRAY,TRIM1#
sub71200-30R20
sub71200-30R21
main71200-30R20-B3i201007-201105
LT.GRAY,TRIM1#
sub71200-30R20
sub71200-30R21
main71200-30R20-B4i201105-201112
LT.GRAY,TRIM1#
sub71200-30R20
sub71200-30R21
main71200-30R20-C1i200909-201007
BLACK,TRIM2#
sub71200-30R20
sub71200-30R21
main71200-30R20-C3i201007-201105
BLACK,TRIM2#
sub71200-30R20
sub71200-30R21
main71200-30R20-C4i201105-201112
BLACK,TRIM2#
sub71200-30R20
sub71200-30R21
main71200-30R30-A2i200909-201007
IVORY,TRIM0#
sub71200-30R30
sub71200-30R31
main71200-30R30-A4i201007-201105
IVORY,TRIM0#
sub71200-30R30
sub71200-30R31
main71200-30R30-A5i201105-201112
IVORY,TRIM0#
sub71200-30R30
sub71200-30R31
main71200-30R30-B1i200909-201007
LT.GRAY,TRIM1#
sub71200-30R30
sub71200-30R31
main71200-30R30-B3i201007-201105
LT.GRAY,TRIM1#
sub71200-30R30
sub71200-30R31
main71200-30R30-B4i201105-201112
LT.GRAY,TRIM1#
sub71200-30R30
sub71200-30R31
main71200-30R30-C1i200909-201007
BLACK,TRIM2#
sub71200-30R30
sub71200-30R31
main71200-30R30-C3i201007-201105
BLACK,TRIM2#
sub71200-30R30
sub71200-30R31
main71200-30R30-C4i201105-201112
BLACK,TRIM2#
sub71200-30R30
sub71200-30R31
main71200-30R50-A2i200909-201007
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71200-30R50
main71200-30R50-A2i200909-201007
IVORY,TRIM0#
sub71200-30R50
main71200-30R50-A4i201007-201105
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71200-30R50
main71200-30R50-A4i201007-201105
IVORY,TRIM0#
sub71200-30R50
main71200-30R50-A5i201105-201112
IVORY,TRIM0#
sub71200-30R50
main71200-30R50-A5i201105-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71200-30R50
main71200-30R50-B1i200909-201007
LT.GRAY,TRIM1#
sub71200-30R50
main71200-30R50-B1i200909-201007
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71200-30R50
main71200-30R50-B3i201007-201105
LT.GRAY,TRIM1#
sub71200-30R50
main71200-30R50-B3i201007-201105
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71200-30R50
main71200-30R50-B4i201105-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71200-30R50
main71200-30R50-B4i201105-201112
LT.GRAY,TRIM1#
sub71200-30R50
main71200-30R50-C1i200909-201007
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71200-30R50
main71200-30R50-C1i200909-201007
BLACK,TRIM2#
sub71200-30R50
main71200-30R50-C4i201007-201105
BLACK,TRIM2#
sub71200-30R50
main71200-30R50-C4i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71200-30R50
main71200-30R50-C5i201105-201112
BLACK,TRIM2#
sub71200-30R50
main71200-30R50-C5i201105-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71200-30R50
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-30030i200501-200704
main71502-30031i200704-201112
main71512-30640i200501-200704
main71512-30660i200704-201112
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-30710i200501-200909
main71552-30730i200501-200909
main71552-30860i200909-201112
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71706-30200-A1i200501-200809
IVORY,TRIM0#
main71706-30200-B1i200501-200709
LT.GRAY,TRIM1#
main71706-30200-B2i200709-200809
LT.GRAY,TRIM1#
main71706-30200-C1i200501-200809
BLACK,TRIM2#
main71706-30201-A1i200809-200909
IVORY,TRIM0#
main71706-30201-B2i200809-200909
LT.GRAY,TRIM1#
main71706-30201-C1i200809-200909
BLACK,TRIM2#
main71706-30210-A2i200909-201112
IVORY,TRIM0#
main71706-30210-B0i200909-201112
LT.GRAY,TRIM1#
main71706-30210-C0i200909-201112
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-30380-A0i200501-200704
IVORY,TRIM0#
main71812-30380-B0i200501-200704
GRAY,TRIM1#
main71812-30380-C0i200501-200704
BLACK,TRIM2#
main71812-30390-A0i200704-200909
IVORY,TRIM0#
sub71812-30390
main71812-30390-A1i200909-201112
IVORY,TRIM0#
sub71812-30390
main71812-30390-B0i200704-200709
GRAY,TRIM1#
sub71812-30390
main71812-30390-B1i200709-201112
LT.GRAY,TRIM1#
sub71812-30390
main71812-30390-C0i200704-201112
BLACK,TRIM2#
sub71812-30390
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-60100-A1i200501-200909
IVORY,TRIM0#
sub71862-60100
main71862-60100-A3i200909-201112
IVORY,TRIM0#
sub71862-60100
main71862-60100-B5i200501-200709
GRAY,TRIM1#
sub71862-60100
main71862-60100-B6i200709-201112
LT.GRAY,TRIM1#
sub71862-60100
main71862-60100-C0i200501-201112
BLACK,TRIM2#
sub71862-60100
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-30200-A0i200501-200909
IVORY,TRIM0#
sub71868-30200
main71868-30200-A1i200909-201112
IVORY,TRIM0#
sub71868-30200
main71868-30200-B0i200501-200709
GRAY,TRIM1#
sub71868-30200
main71868-30200-B1i200709-201112
LT.GRAY,TRIM1#
sub71868-30200
main71868-30200-C0i200501-201112
BLACK,TRIM2#
sub71868-30200
main71868-30210-A0i200907-200909
IVORY,TRIM0#
sub71868-30210
main71868-30210-A1i200909-201112
IVORY,TRIM0#
sub71868-30210
main71868-30210-B1i200907-201112
LT.GRAY,TRIM1#
sub71868-30210
main71868-30210-C0i200907-201112
BLACK,TRIM2#
sub71868-30210
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-30010i200501-201112
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-30020i200501-201112
main71874-30030i200907-201112
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-60140i200501-201112
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-30170-A0i200501-200704
IVORY,TRIM0#
sub71876-30170
main71876-30170-B0i200501-200704
GRAY,TRIM1#
sub71876-30170
main71876-30170-C0i200501-200704
BLACK,TRIM2#
sub71876-30170
main71876-30180-A0i200704-200909
IVORY,TRIM0#
sub71876-30180
main71876-30180-A1i200909-201112
IVORY,TRIM0#
sub71876-30180
main71876-30180-B0i200704-200709
GRAY,TRIM1#
sub71876-30180
main71876-30180-B1i200709-201112
LT.GRAY,TRIM1#
sub71876-30180
main71876-30180-C0i200704-201112
BLACK,TRIM2#
sub71876-30180
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-58050i200501-201112
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-60140i200501-201112
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-60170-A1i200501-200909
IVORY,TRIM0#
sub71876-60170
main71876-60170-A4i200909-201112
IVORY,TRIM0#
sub71876-60170
main71876-60170-B6i200501-200709
GRAY,TRIM1#
sub71876-60170
main71876-60170-B9i200709-201112
LT.GRAY,TRIM1#
sub71876-60170
main71876-60170-C0i200501-201112
BLACK,TRIM2#
sub71876-60170
71910AHEADREST ASSY, FRONT SEAT
main71910-30A00-A0i200709-200909
IVORY,TRIM0#,RH
sub71910-30A01
main71910-30A00-A0i200709-200909
IVORY,TRIM0#,LH
sub71910-30A01
main71910-30A00-B0i200709-200909
LT.GRAY,TRIM1#,RH
sub71910-30A01
main71910-30A00-B0i200709-200909
LT.GRAY,TRIM1#,LH
sub71910-30A01
main71910-30A00-C0i200501-200909
BLACK,TRIM2#,LH
sub71910-30A01
main71910-30A00-C0i200501-200909
BLACK,TRIM2#,RH
sub71910-30A01
main71910-30A60-A0i200709-200903
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#,RH
sub71910-30A61
main71910-30A60-A0i200709-200903
NEW IVORY,TRIM0#,RH
sub71910-30A61
main71910-30A60-A0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#,LH
sub71910-30A61
main71910-30A60-A0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#,LH
sub71910-30A61
main71910-30A60-A0i200709-200909
NEW IVORY,TRIM0#,LH
sub71910-30A61
main71910-30A60-A0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#,LH
sub71910-30A61
main71910-30A60-A0i200709-200909
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#,LH
sub71910-30A61
main71910-30A60-A0i200709-200903
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#,RH
sub71910-30A61
main71910-30A60-B1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#,LH
sub71910-30A61
main71910-30A60-B1i200709-200903
LT.GRAY,TRIM1#,RH
sub71910-30A61
main71910-30A60-B1i200709-200903
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#,RH
sub71910-30A61
main71910-30A60-B1i200709-200903
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#,RH
sub71910-30A61
main71910-30A60-B1i200709-200909
LT.GRAY,TRIM1#,LH
sub71910-30A61
main71910-30A60-B1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#,LH
sub71910-30A61
main71910-30A60-B1i200709-200909
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#,LH
sub71910-30A61
main71910-30A60-B1i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#,LH
sub71910-30A61
main71910-30A60-C0i200709-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,LH
sub71910-30A61
main71910-30A60-C0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#,LH
sub71910-30A61
main71910-30A60-C0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#,LH
sub71910-30A61
main71910-30A60-C0i200709-200903
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#,RH
sub71910-30A61
main71910-30A60-C0i200709-200903
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,RH
sub71910-30A61
main71910-30A60-C0i200709-200903
BLACK,TRIM2#,RH
sub71910-30A61
main71910-30A60-C0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,LH
sub71910-30A61
main71910-30A60-C0i200709-200909
BLACK,TRIM2#,LH
sub71910-30A61
main71910-30B20-A1i200709-200909
IVORY,TRIM0#,LH
sub71910-30B21
main71910-30B20-A1i200709-200909
IVORY,TRIM0#,RH
sub71910-30B21
main71910-30B20-B1i200709-200909
LT.GRAY,TRIM1#,LH
sub71910-30B21
main71910-30B20-B1i200709-200909
LT.GRAY,TRIM1#,RH
sub71910-30B21
main71910-30B20-C0i200501-200909
BLACK,TRIM2#,LH
sub71910-30B21
main71910-30B20-C0i200501-200909
BLACK,TRIM2#,RH
sub71910-30B21
main71910-30B30-A0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#,RH
sub71910-30B31
main71910-30B30-A0i200709-200903
NEW IVORY,TRIM0#,LH
sub71910-30B31
main71910-30B30-A0i200709-200903
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#,LH
sub71910-30B31
main71910-30B30-A0i200709-200903
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#,LH
sub71910-30B31
main71910-30B30-A0i200709-200909
NEW IVORY,TRIM0#,RH
sub71910-30B31
main71910-30B30-A0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#,RH
sub71910-30B31
main71910-30B30-A0i200709-200909
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#,RH
sub71910-30B31
main71910-30B30-A0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#,RH
sub71910-30B31
main71910-30B30-B2i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#,RH
sub71910-30B31
main71910-30B30-B2i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#,RH
sub71910-30B31
main71910-30B30-B2i200709-200909
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#,RH
sub71910-30B31
main71910-30B30-B2i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#,RH
sub71910-30B31
main71910-30B30-B2i200709-200909
LT.GRAY,TRIM1#,RH
sub71910-30B31
main71910-30B30-B2i200709-200903
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#,LH
sub71910-30B31
main71910-30B30-B2i200709-200903
LT.GRAY,TRIM1#,LH
sub71910-30B31
main71910-30B30-B2i200709-200903
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#,LH
sub71910-30B31
main71910-30B30-C1i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#,RH
sub71910-30B31
main71910-30B30-C1i200709-200903
BLACK,TRIM2#,LH
sub71910-30B31
main71910-30B30-C1i200709-200903
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,LH
sub71910-30B31
main71910-30B30-C1i200709-200903
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#,LH
sub71910-30B31
main71910-30B30-C1i200709-200909
BLACK,TRIM2#,RH
sub71910-30B31
main71910-30B30-C1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,RH
sub71910-30B31
main71910-30B30-C1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#,RH
sub71910-30B31
main71910-30B30-C1i200709-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,RH
sub71910-30B31
main71910-30D60-A1i200909-201112
IVORY,TRIM0#
sub71910-30D61
sub71910-30D60
main71910-30D60-A1i200909-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71910-30D61
sub71910-30D60
main71910-30D60-A1i200909-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71910-30D61
sub71910-30D60
main71910-30D60-A2i201007-201105
IVORY,TRIM0#
sub71910-30D61
sub71910-30D60
main71910-30D60-A2i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71910-30D61
sub71910-30D60
main71910-30D60-A2i201007-201105
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71910-30D61
sub71910-30D60
main71910-30D60-A2i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71910-30D61
sub71910-30D60
main71910-30D60-B1i200909-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71910-30D61
sub71910-30D60
main71910-30D60-B1i200909-201112
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71910-30D61
sub71910-30D60
main71910-30D60-B1i200909-201112
LT.GRAY,TRIM1#
sub71910-30D61
sub71910-30D60
main71910-30D60-B2i201007-201105
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
sub71910-30D61
sub71910-30D60
main71910-30D60-B2i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71910-30D61
sub71910-30D60
main71910-30D60-B2i201007-201105
LT.GRAY,TRIM1#
sub71910-30D61
sub71910-30D60
main71910-30D60-B2i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71910-30D61
sub71910-30D60
main71910-30D60-C1i200909-201112
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71910-30D61
sub71910-30D60
main71910-30D60-C1i200909-201112
BLACK,TRIM2#
sub71910-30D61
sub71910-30D60
main71910-30D60-C1i200909-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71910-30D61
sub71910-30D60
main71910-30D60-C2i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
sub71910-30D61
sub71910-30D60
main71910-30D60-C2i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM20
sub71910-30D61
sub71910-30D60
main71910-30D60-C2i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71910-30D61
sub71910-30D60
main71910-30D60-C2i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71910-30D61
sub71910-30D60
main71910-30D60-C2i201007-201105
BLACK,TRIM2#
sub71910-30D61
sub71910-30D60
main71910-30D60-C2i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
sub71910-30D61
sub71910-30D60
main71910-30D80-A1i200909-201112
IVORY,TRIM0#
sub71910-30D81
sub71910-30D80
main71910-30D80-A2i201007-201105
IVORY,TRIM0#
sub71910-30D81
sub71910-30D80
main71910-30D80-B1i200909-201112
LT.GRAY,TRIM1#
sub71910-30D81
sub71910-30D80
main71910-30D80-B2i201007-201105
LT.GRAY,TRIM1#
sub71910-30D81
sub71910-30D80
main71910-30D80-C1i200909-201112
BLACK,TRIM2#
sub71910-30D81
sub71910-30D80
main71910-30D80-C2i201007-201105
BLACK,TRIM2#
sub71910-30D81
sub71910-30D80
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-A3i200501-200707
W(LOCK)&W(BUTTON),IVORY,TRIM0#,PASSENGER
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B7i200501-200707
W(LOCK)&W(BUTTON),GRAY,TRIM1#,PASSENGER
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-C0i200501-200707
W(LOCK)&W(BUTTON),BLACK,TRIM2#,PASSENGER
sub71930-52030
sub71930-42020
sub71930-44020
main71930-52030-A1i200708-200909
W(LOCK)&W(BUTTON),IVORY,TRIM0#,PASSENGER
sub71930-52030
main71930-52030-B1i200708-200709
W(LOCK)&W(BUTTON),GRAY,TRIM1#,PASSENGER
sub71930-52030
main71930-52030-B5i200709-200909
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#,PASSENGER
sub71930-52030
main71930-52030-C0i200708-200909
W(LOCK)&W(BUTTON),BLACK,TRIM2#,PASSENGER
sub71930-52030
main71931-30040-A0i200501-200909
W/O(LOCK),IVORY,TRIM0#,DRIVER
sub71931-30040
main71931-30040-B0i200501-200709
W/O(LOCK),GRAY,TRIM1#,DRIVER
sub71931-30040
main71931-30040-B1i200709-200909
W/O(LOCK),LT.GRAY,TRIM1#,DRIVER
sub71931-30040
main71931-30040-C0i200501-200909
W/O(LOCK),BLACK,TRIM2#,DRIVER
sub71931-30040
main71931-42020-A3i200501-200909
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#,PASSENGER
sub71931-42020
main71931-42020-B2i200709-200909
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#,PASSENGER
sub71931-42020
main71931-42020-B7i200501-200709
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#,PASSENGER
sub71931-42020
main71931-42020-C0i200501-200909
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,PASSENGER
sub71931-42020
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-30120-A0i200501-200909
IVORY,TRIM0#
sub72123-30120
main72123-30120-A1i200909-201112
IVORY,TRIM0#
sub72123-30120
main72123-30120-B0i200501-200709
GRAY,TRIM1#
sub72123-30120
main72123-30120-B1i200709-201112
LT.GRAY,TRIM1#
sub72123-30120
main72123-30120-C0i200501-201112
BLACK,TRIM2#
sub72123-30120
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-30120-A0i200501-200909
IVORY,TRIM0#
sub72123-30120
main72123-30120-A1i200909-201112
IVORY,TRIM0#
sub72123-30120
main72123-30120-B0i200501-200709
GRAY,TRIM1#
sub72123-30120
main72123-30120-B1i200709-201112
LT.GRAY,TRIM1#
sub72123-30120
main72123-30120-C0i200501-201112
BLACK,TRIM2#
sub72123-30120
main72128-30100-A0i200907-200909
IVORY,TRIM0#
sub72128-30100
main72128-30100-A1i200909-201112
IVORY,TRIM0#
sub72128-30100
main72128-30100-B1i200907-201112
LT.GRAY,TRIM1#
sub72128-30100
main72128-30100-C0i200907-201112
BLACK,TRIM2#
sub72128-30100
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-30040i200501-200503
NO.1
main72136-30050i200501-201105
RH SEAT, NO.2
sub72136-53060
main72136-30060i200501-201105
LH SEAT, NO.2
sub72136-53070
main72136-53020i200503-201112
NO.1
main72136-53060i201106-201112
RH SEAT, NO.2
main72136-53070i201106-201112
LH SEAT, NO.2
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72138-30070-A0i200501-200909
IVORY,TRIM0#
sub72138-30070
main72138-30070-A1i200909-201112
IVORY,TRIM0#
sub72138-30070
main72138-30070-B0i200501-200709
GRAY,TRIM1#
sub72138-30070
main72138-30070-B1i200709-201112
LT.GRAY,TRIM1#
sub72138-30070
main72138-30070-C0i200501-201112
BLACK,TRIM2#
sub72138-30070
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-30120-A0i200907-200909
IVORY,TRIM0#
sub72158-30120
main72158-30120-A1i200909-201112
IVORY,TRIM0#
sub72158-30120
main72158-30120-B1i200907-201112
LT.GRAY,TRIM1#
sub72158-30120
main72158-30120-C0i200907-201112
BLACK,TRIM2#
sub72158-30120
main72158-30130-A0i200501-200909
IVORY,TRIM0#
sub72158-30130
main72158-30130-A1i200909-201112
IVORY,TRIM0#
sub72158-30130
main72158-30130-B0i200501-200709
GRAY,TRIM1#
sub72158-30130
main72158-30130-B1i200709-201112
LT.GRAY,TRIM1#
sub72158-30130
main72158-30130-C0i200501-201112
BLACK,TRIM2#
sub72158-30130
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-30170i200501-201112
72993COVER, FRONT SEATBACK
main72993-30130-A0i200501-200709
IVORY,TRIM0#
main72993-30130-B0i200501-200709
GRAY,TRIM1#
main72993-30130-C0i200501-200709
BLACK,TRIM2#
main72993-30150i200709-201112
72993ACOVER, FRONT SEATBACK
main72993-30130-A0i200501-200709
IVORY,TRIM0#
main72993-30130-B0i200501-200709
GRAY,TRIM1#
main72993-30130-C0i200501-200709
BLACK,TRIM2#
main72993-30150i200709-201112
72994COVER, FRONT SEATBACK
main72994-30020-A0i200501-200709
IVORY,TRIM0#
main72994-30020-B0i200501-200709
GRAY,TRIM1#
main72994-30020-C0i200501-200709
BLACK,TRIM2#
main72994-30040i200709-201112
72994ACOVER, FRONT SEATBACK
main72994-30020-A0i200501-200709
IVORY,TRIM0#
main72994-30020-B0i200501-200709
GRAY,TRIM1#
main72994-30020-C0i200501-200709
BLACK,TRIM2#
main72994-30040i200709-201112
73178BCAP, SEAT BELT ANCHOR COVER
main73178-30030-A0i200501-200704
IVORY,TRIM0#
sub73178-30030
main73178-30030-B1i200501-200704
GRAY,TRIM1#
sub73178-30030
main73178-30030-C0i200501-200704
BLACK,TRIM2#
sub73178-30030
main73178-30061-A0i200704-200711
IVORY,TRIM0#,RH
sub73178-30062
main73178-30061-B0i200704-200709
GRAY,TRIM1#,RH
sub73178-30062
main73178-30061-B1i200709-200711
LT.GRAY,TRIM1#,RH
sub73178-30062
main73178-30061-C0i200704-200711
BLACK,TRIM2#,RH
sub73178-30062
main73178-30062-A0i200712-200809
IVORY,TRIM0#,RH
main73178-30062-B1i200712-200809
LT.GRAY,TRIM1#,RH
main73178-30062-C0i200712-200809
BLACK,TRIM2#,RH
main73178-30090-A0i200809-200909
IVORY,TRIM0#,RH
sub73178-30090
main73178-30090-A1i200909-201112
IVORY,TRIM0#,RH
sub73178-30090
main73178-30090-B0i200809-201112
LT.GRAY,TRIM1#,RH
sub73178-30090
main73178-30090-C0i200809-201112
BLACK,TRIM2#,RH
sub73178-30090
main73179-30020-A0i200704-200711
IVORY,TRIM0#,LH
sub73179-30021
main73179-30020-B0i200704-200709
GRAY,TRIM1#,LH
sub73179-30021
main73179-30020-B1i200709-200711
LT.GRAY,TRIM1#,LH
sub73179-30021
main73179-30020-C0i200704-200711
BLACK,TRIM2#,LH
sub73179-30021
main73179-30021-A0i200712-200809
IVORY,TRIM0#,LH
main73179-30021-B1i200712-200809
LT.GRAY,TRIM1#,LH
main73179-30021-C0i200712-200809
BLACK,TRIM2#,LH
main73179-30030-A0i200809-200909
IVORY,TRIM0#,LH
sub73179-30030
main73179-30030-A1i200909-201112
IVORY,TRIM0#,LH
sub73179-30030
main73179-30030-B0i200809-201112
LT.GRAY,TRIM1#,LH
sub73179-30030
main73179-30030-C0i200809-201112
BLACK,TRIM2#,LH
sub73179-30030
8121
8202
8401
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-60010i200709
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
sub87501-60060
main87501-60010i200909-201112
sub87501-60060
main87501-60010i200709
SEAT COVER MATERIAL-LEATHER
sub87501-60060
main87501-60010i200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
sub87501-60060
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-30310i200709-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
main87510-30310i200709-201112
SEAT COVER MATERIAL-LEATHER
main87510-30310i200709-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
main87510-30310i200709-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-30060i200709-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
main87530-30060i200709-201112
SEAT COVER MATERIAL-LEATHER
main87530-30060i200709-201112
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
main87530-30060i200709-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
9011910927
main90119-10927
9016740044
main90167-40044
9038910041
main90389-10041
9046315002
main90463-15002
9046710017
main90467-10017
9046818008
main90468-18008
9353054010
main93530-54010
9356054010
main93560-54010
9356855016
main93568-55016

45 parts on this diagram · 6 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
