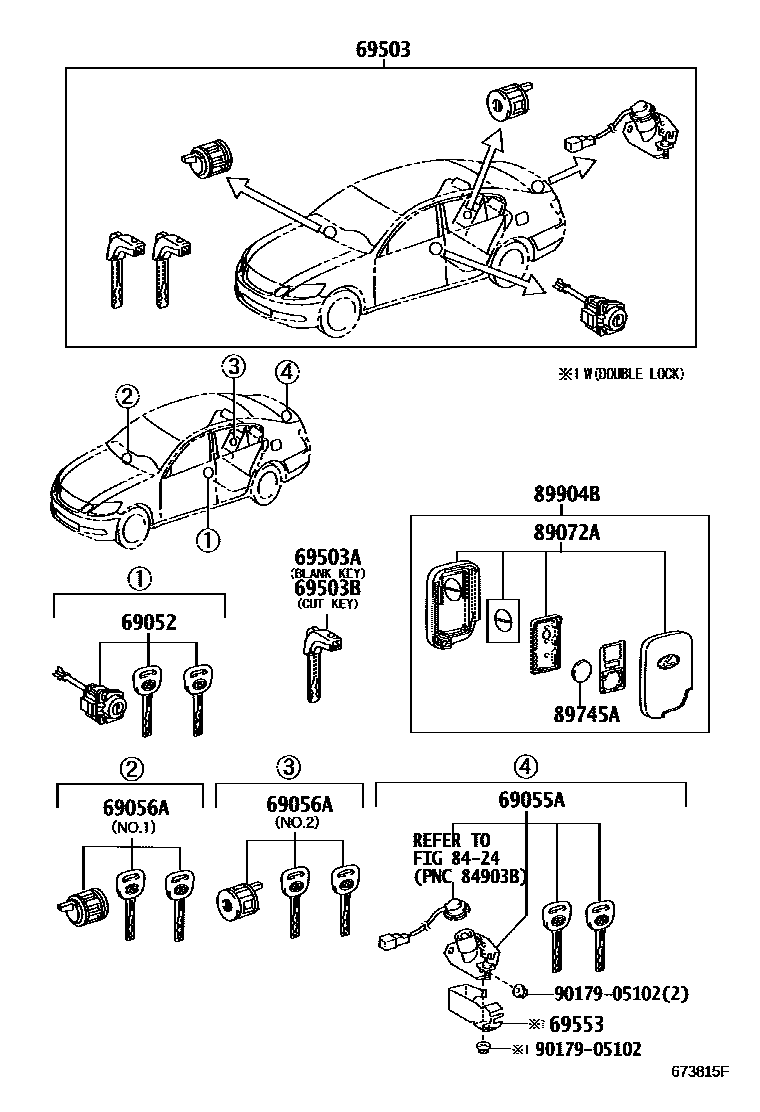

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
TAIWAN SPEC
RUSSIA SPEC
CHINA SPEC
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
NO.1
NO.1 OR NO.2
69503AKEY, BLANK
AUSTRALIA SPEC
NEW ZEALAND SPEC
BLANK KEY
69503BKEY, CUT
MASTER KEY
69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
DOOR LOCK-FRONT,2STEP,DOUBLE LOCK
8424
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
WIRELESS DOOR LOCK-WITH(PANIC),433MHZ&WITH(CARD KEY)
sub89072-53273
sub89072-53274
sub89072-53291
89745ABATTERY, TRANSMITTER
THAILAND SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
SINGAPORE SPEC,TYPE A:REFER ILLUST.
NEW ZEALAND SPEC,TYPE A:REFER ILLUST.
CHINA SPEC,TYPE A:REFER ILLUST.
AUSTRALIA SPEC,TYPE A:REFER ILLUST.
INDONESIA SPEC,TYPE A:REFER ILLUST.
TAIWAN SPEC,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
HONG KONG SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
SINGAPORE SPEC,TYPE A:REFER ILLUST.
sub89904-30322
THAILAND SPEC,TYPE A:REFER ILLUST.
sub89904-30322
INDONESIA SPEC,TYPE A:REFER ILLUST.
sub89904-30322
MOROCCO SPEC&WITH(CARD KEY),TYPE B:REFER ILLUST.
sub89904-30631
TYPE B:REFER ILLUST.
WIRELESS DOOR LOCK-WITH(PANIC),433MHZ,TYPE A:REFER ILLUST.
sub89904-53321
SINGAPORE SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST.
sub89904-53321
WIRELESS DOOR LOCK-WITH(PANIC),433MHZ&WITH(CARD KEY),TYPE A:REFER ILLUST.
sub89904-53321
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
9017905102
12 parts on this diagram · 4 diagrams in section
