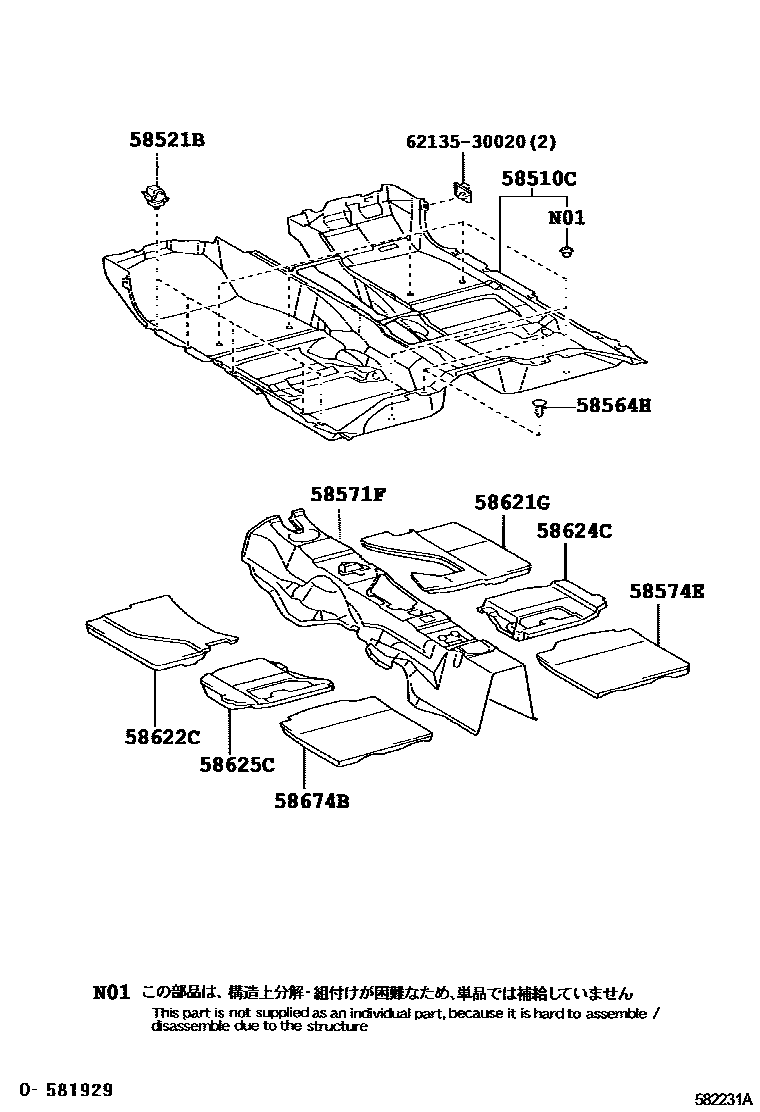

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-30A10-A0iGRS190,UZS190..RHD..EUR200501-200709

IVORY,TRIM0#

sub58510-30A11

main58510-30A10-B0iGRS190,UZS190..RHD..EUR200501-200709

GRAY,TRIM1#

sub58510-30A11

main58510-30A10-C0iGRS190,UZS190..RHD..EUR200501-200709

BLACK,TRIM2#

sub58510-30A11

main58510-30A90-A0iGRS190..GEN200709-200909

AUSTRALIA SPEC,IVORY,TRIM0#

sub58510-30A91

main58510-30A90-A0iGRS190..GEN200709-200909

NEW ZEALAND SPEC,IVORY,TRIM0#

sub58510-30A91

main58510-30A90-A0iGRS190..GEN200709-200909

IVORY,TRIM0#

sub58510-30A91

main58510-30A90-A1iGRS190..GEN200909-201112

IVORY,TRIM0#

sub58510-30A91

main58510-30A90-A1iGRS190..RHD..EUR200909-201112

AUSTRALIA SPEC,IVORY,TRIM0#

sub58510-30A91

main58510-30A90-A1iGRS190..RHD..EUR200909-201112

NEW ZEALAND SPEC,IVORY,TRIM0#

sub58510-30A91

main58510-30A90-B0iGRS190..RHD..EUR200709-201112

AUSTRALIA SPEC,LT.GRAY,TRIM1#

sub58510-30A91

main58510-30A90-B0iGRS190..RHD..EUR200709-201112

NEW ZEALAND SPEC,LT.GRAY,TRIM1#

sub58510-30A91

main58510-30A90-B0iGRS190..RHD..EUR200709-201112

LT.GRAY,TRIM1#

sub58510-30A91

main58510-30A90-C0iGRS190..GEN200709-201112

AUSTRALIA SPEC,BLACK,TRIM2#

sub58510-30A91

main58510-30A90-C0iGRS190..RHD..EUR200709-201112

NEW ZEALAND SPEC,BLACK,TRIM2#

sub58510-30A91

main58510-30A90-C0iGRS190..RHD..EUR200709-201112

BLACK,TRIM2#

sub58510-30A91

main58510-30B00-A0iGRS190,URS190..RHD..EUR200709-200909

IVORY,TRIM0#

sub58510-30B01

main58510-30B00-A1iGRS190,URS190..RHD..EUR200909-201112

IVORY,TRIM0#

sub58510-30B01

main58510-30B00-B0iGRS190,URS190..RHD..EUR200709-201112

LT.GRAY,TRIM1#

sub58510-30B01

main58510-30B00-C0iGRS190,URS190..RHD..EUR200709-201112

BLACK,TRIM2#

sub58510-30B01

main58510-30B10-A0iGRS190,UZS190..GCC200709-200909

IVORY,TRIM0#

sub58510-30B11

main58510-30B10-A1iGRS190..GCC200909-201112

IVORY,TRIM0#

sub58510-30B11

main58510-30B10-B0iGRS190,UZS190..GCC200709-201112

LT.GRAY,TRIM1#

sub58510-30B11

main58510-30B10-C0iGRS190,UZS190..GCC200709-201112

BLACK,TRIM2#

sub58510-30B11

main58510-30B20-A0iURS190..LHD;GRS190,UZS190..LHD..EUR200709-200909

IVORY,TRIM0#

sub58510-30B21

main58510-30B20-A1iURS190..LHD;GRS190..LHD..EUR200909-201112

IVORY,TRIM0#

sub58510-30B21

main58510-30B20-B0iURS190..LHD;GRS190,UZS190..LHD..EUR200709-201112

LT.GRAY,TRIM1#

sub58510-30B21

main58510-30B20-C0iURS190..LHD;GRS190,UZS190..LHD..EUR200709-201112

BLACK,TRIM2#

sub58510-30B21

main58510-30B40-A0iGRS196200907-200909

IVORY,TRIM0#

sub58510-30B41

main58510-30B40-A1iGRS196200909-201112

IVORY,TRIM0#

sub58510-30B41

main58510-30B40-B0iGRS196200907-201112

LT.GRAY,TRIM1#

sub58510-30B41

main58510-30B40-C0iGRS196200907-201112

BLACK,TRIM2#

sub58510-30B41

main58510-3K630-A0iGRS190,UZS190..GCC200501-200709

IVORY,TRIM0#

sub58510-3K631

main58510-3K630-B0iGRS190,UZS190..GCC200501-200709

GRAY,TRIM1#

sub58510-3K631

main58510-3K630-C0iGRS190,UZS190..GCC200501-200709

BLACK,TRIM2#

sub58510-3K631

main58510-3K780-A0iGRS190,UZS190..LHD..EUR200501-200709

IVORY,TRIM0#

sub58510-3K781

main58510-3K780-B0iGRS190,UZS190..LHD..EUR200501-200709

GRAY,TRIM1#

sub58510-3K781

main58510-3K780-C0iGRS190,UZS190..LHD..EUR200501-200709

BLACK,TRIM2#

sub58510-3K781

main58510-3K790-A0iGRS190,UZS190..RHD..EUR200501-200709

NEW ZEALAND SPEC,IVORY,TRIM0#

sub58510-3K791

main58510-3K790-A0iGRS190..GEN200501-200709

IVORY,TRIM0#

sub58510-3K791

main58510-3K790-A0iGRS190..GEN200501-200709

AUSTRALIA SPEC,IVORY,TRIM0#

sub58510-3K791

main58510-3K790-B0iGRS190,UZS190..RHD..EUR200501-200709

AUSTRALIA SPEC,GRAY,TRIM1#

sub58510-3K791

main58510-3K790-B0iGRS190,UZS190..RHD..EUR200501-200709

NEW ZEALAND SPEC,GRAY,TRIM1#

sub58510-3K791

main58510-3K790-B0iGRS190,UZS190..RHD..EUR200501-200709

GRAY,TRIM1#

sub58510-3K791

main58510-3K790-C0iGRS190,UZS190..RHD..EUR200501-200709

AUSTRALIA SPEC,BLACK,TRIM2#

sub58510-3K791

main58510-3K790-C0iGRS190,UZS190..RHD..EUR200501-200709

NEW ZEALAND SPEC,BLACK,TRIM2#

sub58510-3K791

main58510-3K790-C0iGRS190,UZS190..RHD..EUR200501-200709

BLACK,TRIM2#

sub58510-3K791

58521BHOOK, FLOOR CARPET

main58521-30140iGRS190,UZS190200501-200709

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-05164-B8iGRS190,UZS190200501-201112

LT.GRAY

sub90467-05164

58571FPAD, FRONT FLOOR, FRONT

main58571-30050iGRS190,UZS190..LHD200501-200709

main58571-30060iGRS196200907

main58571-30080iGRS190,UZS190..RHD200501-200709

sub58571-30160

main58571-30160iGRS190,URS190..RHD200709

main58571-30170iGRS190,URS190,UZS190..LHD200709

58574EPAD, REAR FLOOR SILENCER, NO.1

main58673-30020iGRS190,UZS190200501-200709

sub58673-30021

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30150iGRS190,UZS190200501-200709

sub58621-30151

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30160iGRS190,UZS190200501-200709

sub58622-30161

main58622-30170iGRS196200907

sub58622-30171

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30140iGRS190,UZS190200501-200709

sub58624-30141

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30090iGRS190,UZS190200501-200709

sub58625-30091

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30020iGRS190,UZS190200501-200709

sub58674-30021

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

11 parts on this diagram · 1 diagram in section
