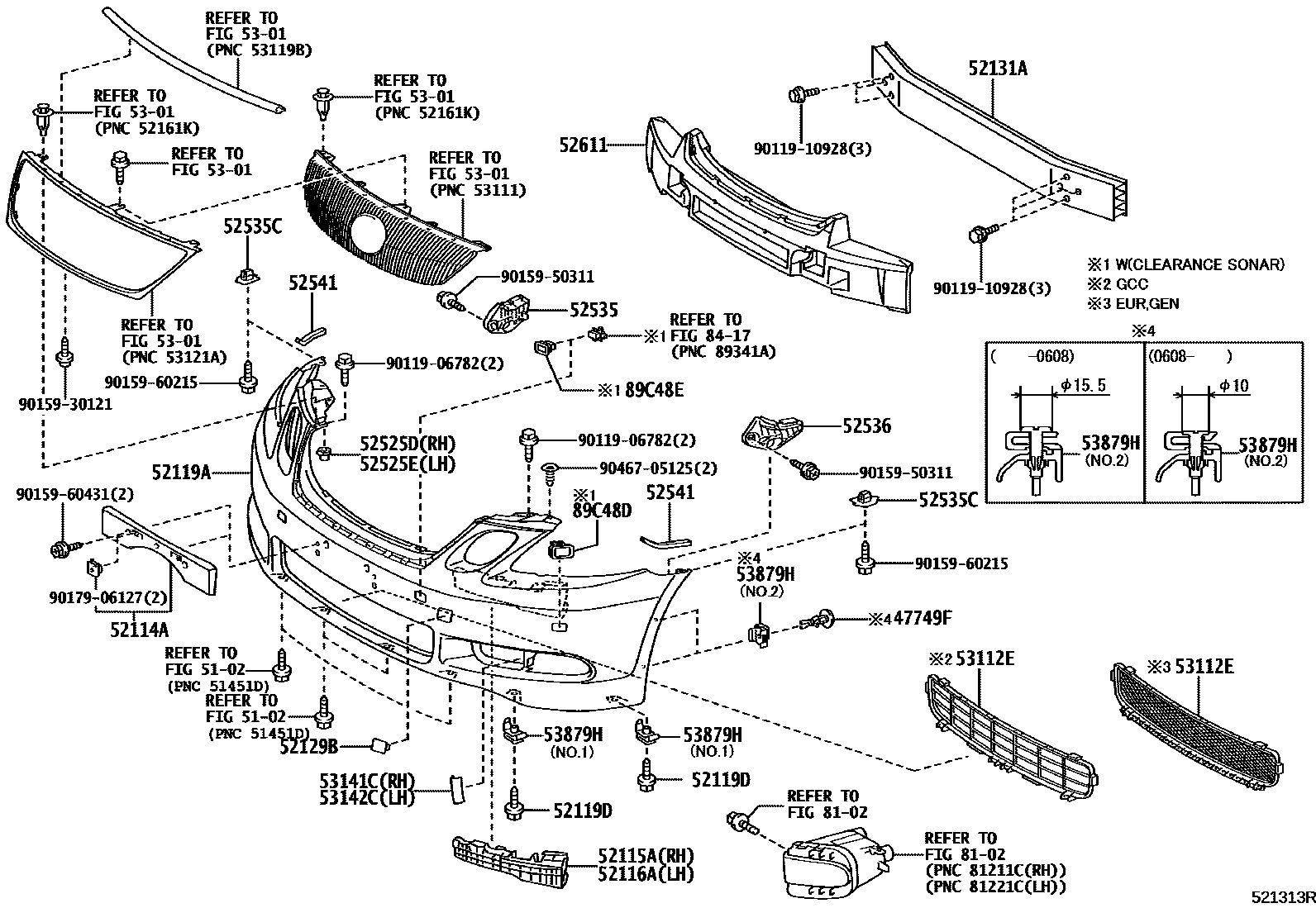

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-50090×4iGRS19#,URS190,UZS190200709-201112

main47749-58010×4iGRS190,UZS190200501-200608

5102

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-30140iGRS190,UZS190..EUR,GEN200501-200709

sub52114-30141

main52114-30150iUZS190..LHD..EUR200501-200709

CHINA SPEC

main52114-30190iGRS190,URS190,UZS190..EUR,GEN200709-200802

PHILIPPINE SPEC

main52114-30191iURS190,UZS190..GCC200803

PHILIPPINE SPEC

main52114-30200iGRS190,URS190..RHD..EUR200709

AUSTRALIA SPEC

main52114-30180iURS190..LHD..EUR200709

TAIWAN SPEC

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-30110iGRS190,UZS190200501-200709

main52115-30130iGRS19#,URS190,UZS190200709-201112

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-30070iGRS190,UZS190200501-200709

main52116-30080iGRS19#,URS190,UZS190200709-201112

52119ACOVER, FRONT BUMPER

main52119-30986iUZS190..EUR200709-200809

PAINT REQ.

main52119-30991iGRS19#,URS190..EUR,GEN200709-201112

PAINT REQ.

main52119-30964supersedes 52119-30963iUZS190..LHD..EUR200501-200709

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52119-30982iURS190..LHD..EUR200709-201112

PAINT REQ.,TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH

main52119-30985supersedes 52119-30992iGRS190,URS190..RHD..EUR200709-201112

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

52119DSCREW, NO.1

main90159-60477×4iGRS190,UZS190200501-200709

52129BCOVER, FRONT BUMPER, LOWER

main52129-30901iGRS190,UZS190200501-200709

main52129-30902iGRS19#,URS190,UZS190200709-201112

52131AREINFORCEMENT, FRONT BUMPER

main52131-30260iGRS190,UZS190200501-200709

52525DRETAINER, FRONT BUMPER BRACKET, RH

main52525-30040iGRS190,UZS190200501-200709

52525ERETAINER, FRONT BUMPER BRACKET, LH

main52525-30040iGRS190,UZS190200501-200709

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30210iGRS190,UZS190200501-200709

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060×2iGRS19#,URS190,UZS190200709

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30190iGRS190,UZS190200501-200709

52541PROTECTOR, FRONT BUMPER

main52541-30100×2iGRS190,URS190,UZS190200709-200802

main52541-30101×2iGRS19#,URS190,UZS190200803

main52541-30120×2iGRS190,UZS190200501-200507

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30300iGRS190,UZS190200501-200709

main52611-30350iGRS19#,URS190,UZS190200709

5301

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-30230iGRS190,UZS190..EUR,GEN200501-200709

NO PAINT REQ.

main53112-30250iGRS190,UZS190..GCC200501-200709

NO PAINT REQ.

main53112-30310iURS190,UZS190..GCC200709

NO PAINT REQ.,PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH

main53112-30320iGRS190,URS190..RHD..EUR200709

NO PAINT REQ.,NEW ZEALAND SPEC

53141CGARNISH, RADIATOR GRILLE

main53141-30050iGRS190,UZS190200501-200709

main53141-30090iGRS19#,URS190,UZS190200709

53142CGARNISH, RADIATOR GRILLE, NO.2

main53142-30040iGRS190,UZS190200501-200709

main53142-30050iGRS19#,URS190,UZS190200709

53879HRETAINER, FRONT FENDER LINER

main53879-17020×4iGRS190,UZS190200501-200709

NO.1

main53879-50020×4iGRS19#,URS190,UZS190200709-201112

NO.2

main53879-58010×4iGRS190,UZS190200501-200608

NO.2

8102

8417

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-44020-A3×2iUZS190..EUR200709-200809

WHITE PEARL CS.,077

main89348-44020-B2×2iUZS190..EUR200709-200809

PREMIUM SILVER,1F2

main89348-44020-B5×2iUZS190..EUR200709-200809

DK.GRAY MC.,1G0

main89348-44020-B6×2iUZS190..EUR200709-200809

FROSTY PEARL MC.,1G5

main89348-44020-C3×2iUZS190..EUR200709-200809

BLACK,212

main89348-44020-D1×2iUZS190..EUR200709-200809

RED MC.CS.,3R1

main89348-44020-E2×2iUZS190..EUR200709-200809

BEIGE ME.,4T1

main89348-44020-G1×2iUZS190..EUR200709-200809

JADE GREEN ME.,6V0

main89348-44020-J3×2iUZS190..EUR200709-200809

PREMIUM LT.BLUE.,8T9

main89348-44020-J4×2iUZS190..EUR200709-200809

DK.BLUE MC. CC.,8U0

main89348-44020-A1×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,062

main89348-44020-A2×2iGRS190,UZS190200501-200709

CLEARANCE & BACK SONAR-WITH,BLUISH PEARL CS.,074

main89348-44020-B1×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1E0

main89348-44020-C1×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,BLACK,202

main89348-44020-C4×2iGRS190..GCC200809-201007

CHINA SPEC&CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214

main89348-44020-C5×2iGRS19#,URS190201007-201112

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-44020-E1×2iGRS190..GCC;UZS190..LHD..EUR200701-200709

CHINA SPEC&CLEARANCE & BACK SONAR-WITH,PREMIUM BEIGE,4S7

main89348-44020-E3×2iGRS19#,URS190200909-201112

CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

main89348-44020-G0×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7

main89348-44020-G3×2iGRS190,URS190..GCC200909-201007

CHINA SPEC&CLEARANCE & BACK SONAR-WITH,DEEP PERIDOT MC.,6V6

main89348-44020-J2×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,DARK BLUE MC.,8P8

main89348-44020-J6×2iGRS190,URS190..GCC200909-201007

CHINA SPEC&CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3

main89348-44020-K0×2iGRS190..GCC;UZS190..LHD..EUR200701-200709

CHINA SPEC&CLEARANCE & BACK SONAR-WITH,DK.PURPLE M.M.,9AB

89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-44020-A3×2iUZS190..EUR200709-200809

WHITE PEARL CS.,077

main89348-44020-B2×2iUZS190..EUR200709-200809

PREMIUM SILVER,1F2

main89348-44020-B5×2iUZS190..EUR200709-200809

DK.GRAY MC.,1G0

main89348-44020-B6×2iUZS190..EUR200709-200809

FROSTY PEARL MC.,1G5

main89348-44020-C3×2iUZS190..EUR200709-200809

BLACK,212

main89348-44020-D1×2iUZS190..EUR200709-200809

RED MC.CS.,3R1

main89348-44020-E2×2iUZS190..EUR200709-200809

BEIGE ME.,4T1

main89348-44020-G1×2iUZS190..EUR200709-200809

JADE GREEN ME.,6V0

main89348-44020-J3×2iUZS190..EUR200709-200809

PREMIUM LT.BLUE.,8T9

main89348-44020-J4×2iUZS190..EUR200709-200809

DK.BLUE MC. CC.,8U0

main89348-44020-A1×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,062

main89348-44020-A2×2iGRS190,UZS190200501-200709

CLEARANCE & BACK SONAR-WITH,BLUISH PEARL CS.,074

main89348-44020-B1×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1E0

main89348-44020-C1×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,BLACK,202

main89348-44020-C4×2iGRS190;URS190..EUR;UZS190..GCC200709-201112

CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214

main89348-44020-C5×2iGRS19#,URS190201007-201112

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-44020-E1×2iGRS190..GCC;UZS190..LHD..EUR200701-200709

CHINA SPEC&CLEARANCE & BACK SONAR-WITH,PREMIUM BEIGE,4S7

main89348-44020-E3×2iGRS19#,URS190200909-201112

CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

main89348-44020-G0×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7

main89348-44020-G3×2iGRS19#,URS190200909-201112

CLEARANCE & BACK SONAR-WITH,DEEP PERIDOT MC.,6V6

main89348-44020-J2×2iGRS190,UZS190200501-200607

CLEARANCE & BACK SONAR-WITH,DARK BLUE MC.,8P8

main89348-44020-J6×2iGRS19#,URS190200909-201112

CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3

main89348-44020-K0×2iGRS190,UZS190200501-200709

CLEARANCE & BACK SONAR-WITH,DK.PURPLE M.M.,9AB

9011906782

main90119-06782

9011910928

main90119-10928

9015930121

main90159-30121

9015950311

main90159-50311

9015960215

main90159-60215

9015960431

main90159-60431

9017906127

main90179-06127

9046705125

main90467-05125

33 parts on this diagram · 2 diagrams in section
