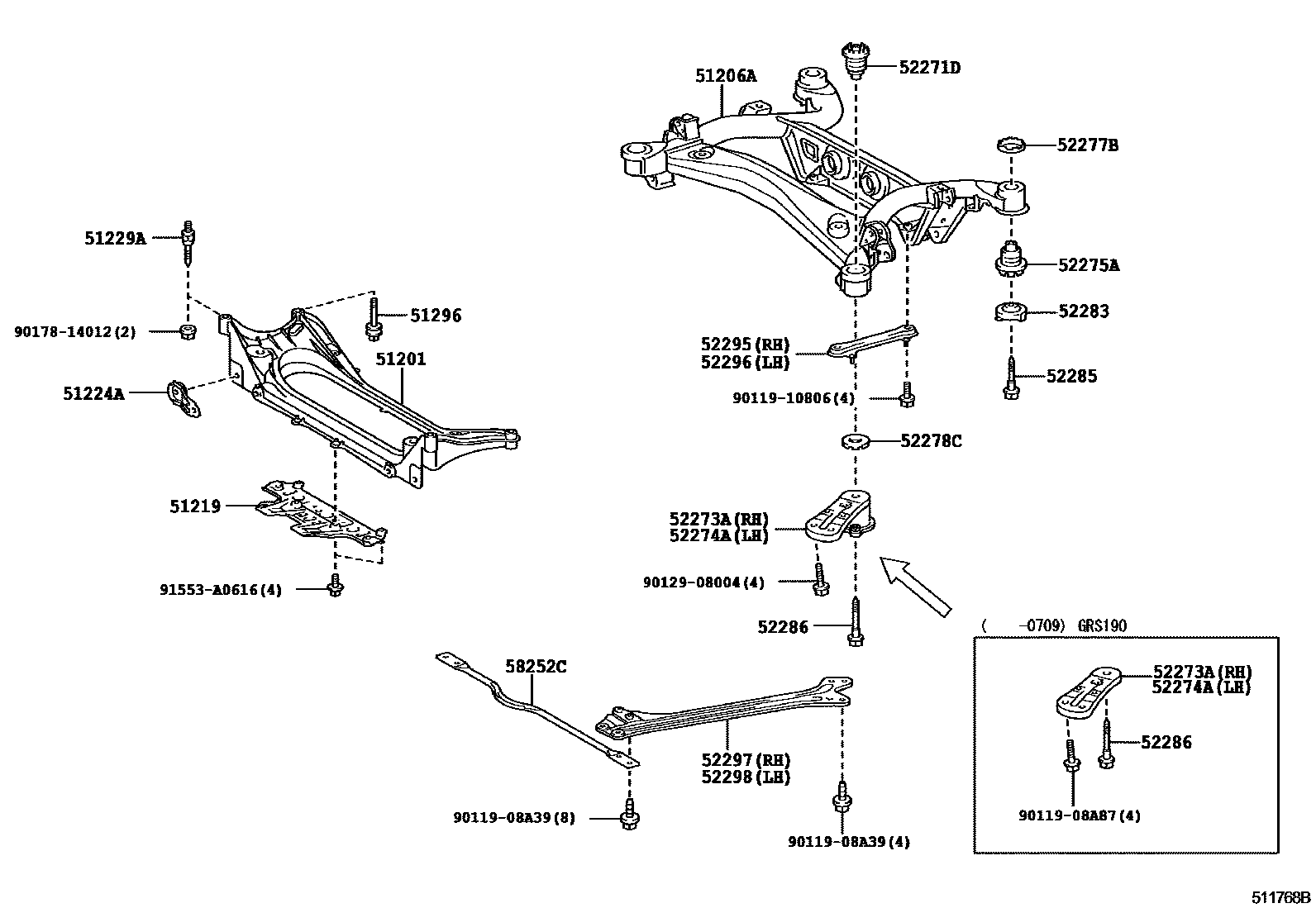

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1UNDER COVER 0004 1UNDER COVER 0005 1UNDER COVER 0006 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iGRS190,URS190,UZS190200501-201012

sub51201-30140

main51201-30140iGRS190,URS190201012-201112

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30080iGRS190200501-200812

sub51206-30081

main51206-30081iGRS190200901

sub51206-30082

main51206-30090iUZS190200501-200509

sub51206-30100

main51206-30100iUZS190200510-200812

sub51206-30101

main51206-30101iGRS196,URS190200901

sub51206-30160

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30030iGRS190,UZS190200501-200505

sub51219-30031

main51219-30031iGRS190,UZS190200505-200809

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030iGRS190,UZS190200501-200809

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90951-01004iGRS190,UZS190200501-201112

main90951-01005iGRS196200907-201112

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16013iGRS190,UZS190200501-201112

main90119-16017iGRS196200907-201112

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30100iGRS190,UZS190200501-200708

sub52271-30120

main52271-30120iGRS19#,URS190,UZS190200709

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-30070iUZS190200501-200709

main52273-30080iGRS190200501-200709

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-30050iUZS190200501-200709

main52273-30080iGRS190200501-200709

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30130iGRS19#,URS190,UZS190200501-200709

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30060iGRS190,UZS190200501-200709

sub52277-30070

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30050iGRS190,UZS190200501-200709

sub52278-30080

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060iGRS190,UZS190200501-200709

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iGRS190,UZS190200501-200709

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010iGRS190,UZS190200501-200506

main52286-53020iGRS190,UZS190200507-200709

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iGRS190,UZS190200501-200709

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iGRS190,UZS190200501-200709

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-30011iUZS190200501-200502

sub52297-53030

main52297-53030iUZS190200503-200709

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-30011iUZS190200501-200502

sub52298-53030

main52298-53030iUZS190200503-200709

58252CBRACE, FLOOR PANEL, REAR NO.1

main58252-30020iUZS190200501-200709

9011908A39

main90119-08A39

9011908A87

main90119-08A87

9011910806

main90119-10806

9012908004

main90129-08004

9017814012

main90178-14012

91553A0616

main91553-A0616

26 parts on this diagram · 6 diagrams in section
