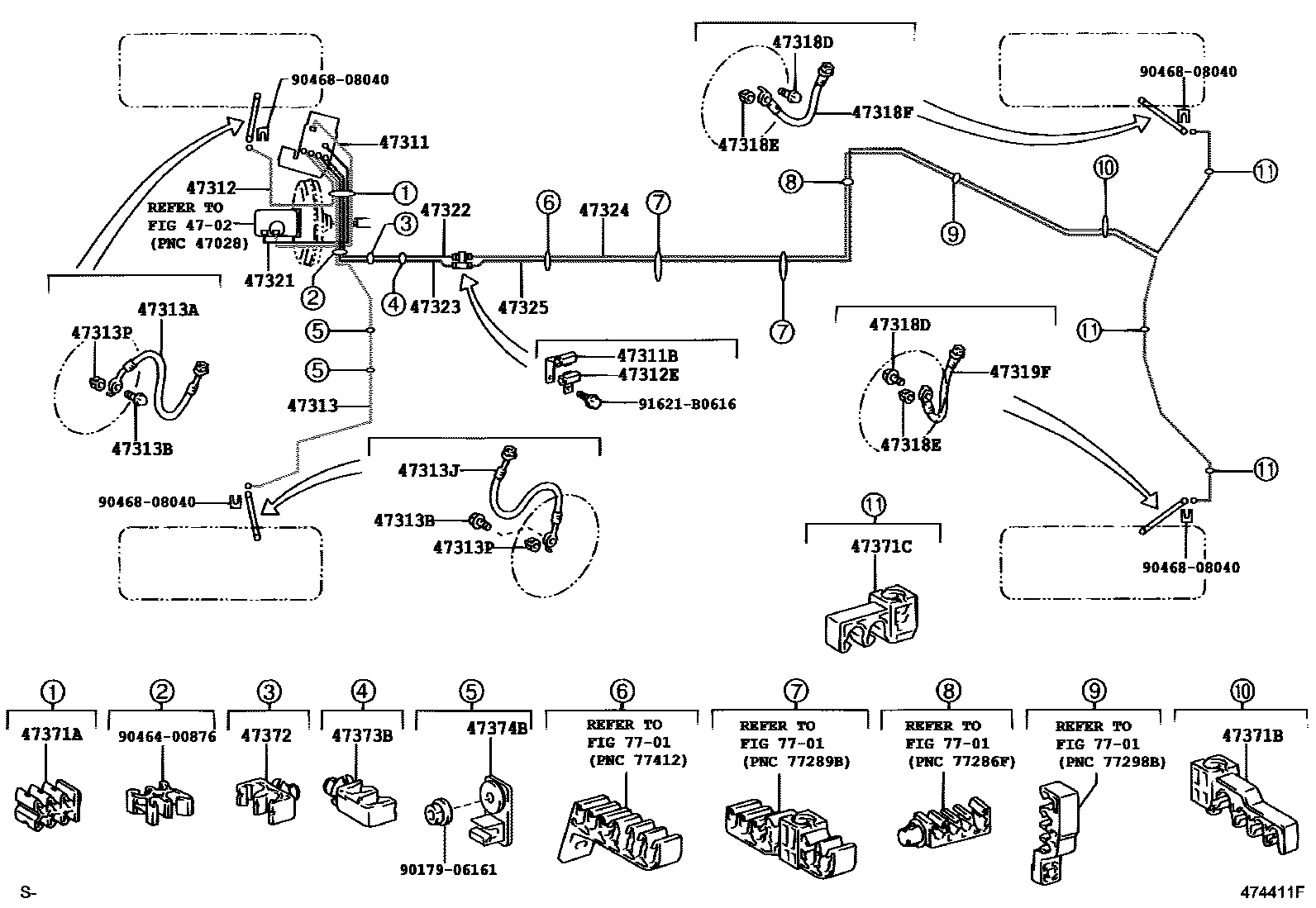

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-30680iGRS190..RHD200501-200709

main47311-30690iGRS190..LHD200501-200709

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10250iGRS19#,URS190,UZS190200501-200709

47312TUBE, FRONT BRAKE, NO.2

main47312-30560iGRS190..RHD200501-200709

main47312-30591iGRS190..LHD200501-200709

main47312-30601iGRS196200907

main47312-30611iUZS190200501-200809

main47312-30620iUZS190..RHD200501-200709

main47312-30690iURS190..RHD200709

main47312-30700iURS190..LHD200709

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10144iGRS190,UZS190200501-200709

main90412-10278iGRS19#,URS190,UZS190200709

47313TUBE, FRONT BRAKE, NO.3

main47313-30540iGRS190..LHD200501-200709

main47313-30550iGRS196200907

main47313-30561iUZS190200501-200809

main47313-30570iGRS190..RHD200501-200709

main47313-30590iUZS190..RHD200501-200709

main47313-30650iURS190..RHD200709

main47313-30660iURS190..LHD200709

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E06iGRS190,UZS190200501-200701

sub90947-02F66

main90947-02E53iGRS196200907

main90947-02F66iGRS190..GCC;UZS190..LHD..EUR200701-200912

CHINA SPEC

main90947-02F66iGRS190,URS190200709-200911

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iGRS190,UZS190200501-200709

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02E06iGRS190,UZS190200501-200701

sub90947-02F66

main90947-02E54iGRS196200907

main90947-02F66iGRS190,UZS190200701-200912

CHINA SPEC

main90947-02F66iGRS190,URS190200709-200911

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iGRS190,UZS190200501-200709

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iGRS190,UZS190200501-200709

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iGRS190,UZS190200501-200709

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02D88iGRS190,UZS190200501-200701

sub90947-02F67

main90947-02F67iGRS190,UZS190200701-200912

CHINA SPEC

main90947-02F67iGRS19#,URS190200709-200911

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02D88iGRS190,UZS190200501-200701

sub90947-02F67

main90947-02F67iGRS190,UZS190200701-200912

CHINA SPEC

main90947-02F67iGRS19#,URS190200709-200911

47321TUBE, REAR BRAKE, NO.1

main47321-30390iGRS190..RHD200501-200709

main47321-30400iGRS190..LHD200501-200709

47322TUBE, REAR BRAKE, NO.2

main47322-30330iGRS190..RHD200501-200709

main47322-30340iUZS190..RHD200501-200709

main47322-30351iGRS190..LHD200501-200709

main47322-30361iUZS190..LHD200501-200809

sub47322-30390

main47322-30400iURS190..RHD200709

main47322-30410iURS190..LHD200709

47323TUBE, REAR BRAKE, NO.3

main47323-30290iGRS190..RHD200501-200709

main47323-30300iUZS190..RHD200501-200709

sub47323-30350

main47323-30311iGRS190..LHD200501-200709

main47323-30321iUZS190..LHD200501-200809

main47323-30360iURS190..RHD200709

main47323-30370iURS190..LHD200709

47324TUBE, REAR BRAKE, NO.4

main47324-30310iGRS190,UZS190200501-200709

47325TUBE, REAR BRAKE, NO.5

main47325-30090iGRS190,UZS190200501-200709

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01C51iGRS190200501-200709

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D09iGRS190200501-200809

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D11iGRS190,UZS190200501-200709

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D12iGRS190,UZS190200501-200709

main90949-01D62iURS190200709

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D13iGRS190,UZS190200501-200709

47374BCLAMP, BRAKE TUBE, NO.4

main90949-04036iGRS190,UZS190..RHD200501-200709

7701

9017906161

main90179-06161

9046400876

main90464-00876

9046808040

main90468-08040

91621B0616

main91621-B0616

30 parts on this diagram · 9 diagrams in section
