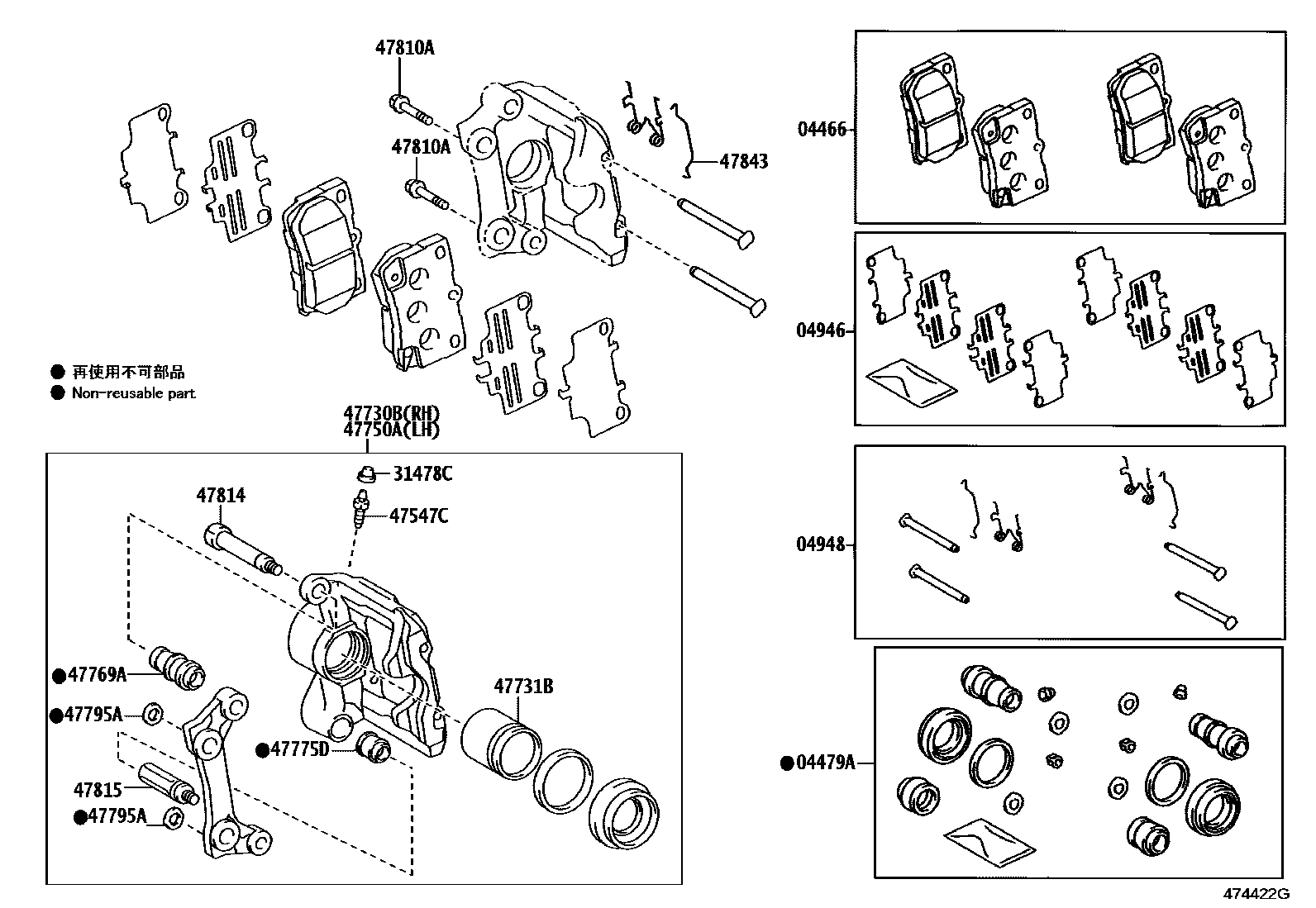

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0005 1CALIPER MARK=18R38 0007 1NEW ZEALAND,CHINA,AUSTRALIA,I0008 1NEW ZEALAND,AUSTRALIA,ISRAEL,

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGRS190;UZS190..GCC200501-201112

MARK NBK PN529H

main04466-22190iURS190..LHD..EUR200709-201112

MARK NBK PN529H,TAIWAN SPEC

main04466-22190iURS190..LHD..EUR200709-201112

MARK NBK PN529H,AUSTRALIA SPEC

main04466-22190iURS190..RHD200709-201112

MARK NBK PN529H,NEW ZEALAND SPEC

main04466-30240iUZS190..EUR200609-201112

MARK AK NS286H

main04466-30240iURS190..EUR200709-201112

MARK AK NS286H,REAR WHEEL BRAKE-CALIPER MARK=18R38

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22150iGRS190,UZS190200501-200511

sub04479-30530

main04479-22170iGRS19#;URS190..GCC201104

AUSTRALIA SPEC

main04479-22170iGRS19#;URS190..GCC201104

NEW ZEALAND SPEC

main04479-22170iURS190..RHD201104

TAIWAN SPEC

main04479-30460iUZS190..EUR200609-200707

sub04479-30480

main04479-30480iGRS190..EUR200709-201104

REAR WHEEL BRAKE-CALIPER MARK=18R38

sub04479-30560

main04479-30480iUZS190..EUR200707-200709

sub04479-30560

main04479-30560iGRS190..EUR201104

REAR WHEEL BRAKE-CALIPER MARK=18R38

main04479-61020iGRS190;UZS190..GCC200606-200707

sub04479-61040

main04479-61040iUZS190..RHD200707-200709

ISRAEL SPEC

sub04479-22170

main04479-61040iUZS190..LHD..EUR200707-201104

NEW ZEALAND SPEC

sub04479-22170

main04479-61040iUZS190..LHD..EUR200707-200709

CHINA SPEC

sub04479-22170

main04479-61040iUZS190..LHD..EUR200707-201104

AUSTRALIA SPEC

sub04479-22170

main04479-61040iURS190..GCC;GRS19#,UZS190200709-201104

TAIWAN SPEC

sub04479-22170

main04479-68030iGRS190,UZS190200511-200606

sub04479-61020

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iURS190..LHD..EUR200709

TAIWAN SPEC

main04946-22090iUZS190..EUR200501-200709

main04946-22090iURS190..GCC;GRS19#,UZS190200709

NEW ZEALAND SPEC

main04946-22090iURS190..GCC;GRS19#,UZS190200709

AUSTRALIA SPEC

main04946-30200iURS190..EUR200709

REAR WHEEL BRAKE-CALIPER MARK=18R38

main04946-30200iUZS190..EUR200609-200709

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iGRS190,UZS190200501-200705

sub04948-30210

main04948-30210iGRS19#,URS190,UZS190200705-200709

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRS190,UZS190200501-200709

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGRS190,UZS190200501-200709

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22220iGRS190,UZS190200501-200511

sub47830-22221

main47830-22221iURS190..RHD200709

AUSTRALIA SPEC

main47830-22221iURS190..RHD200709

TAIWAN SPEC

main47830-22221iUZS190..EUR200511-200709

main47830-22221iURS190..GCC;GRS19#,UZS190200709

NEW ZEALAND SPEC

main47830-30330iGRS190..EUR200709

REAR WHEEL BRAKE-CALIPER MARK=18R38

main47830-30330iUZS190..EUR200609-200709

47731BPISTON, REAR DISC BRAKE

main47831-22220iGRS190;UZS190..GCC200501-200709

main47831-22220iURS190..GCC;GRS19#,UZS190200709

NEW ZEALAND SPEC

main47831-22220iURS190..GCC;GRS19#,UZS190200709

TAIWAN SPEC

main47831-22220iURS190..GCC;GRS19#,UZS190200709

AUSTRALIA SPEC

main47831-30330iGRS190..EUR200709

REAR WHEEL BRAKE-CALIPER MARK=18R38

main47831-30330iUZS190..EUR200609-200709

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22220iGRS190,UZS190200501-200511

sub47850-22221

main47850-22221iURS190..GCC;GRS19#,UZS190200709

TAIWAN SPEC

main47850-22221iURS190..GCC;GRS19#,UZS190200709

AUSTRALIA SPEC

main47850-22221iURS190..RHD200709

NEW ZEALAND SPEC

main47850-22221iUZS190..EUR200511-200709

main47850-30330iURS190..EUR200709

REAR WHEEL BRAKE-CALIPER MARK=18R38

main47850-30330iUZS190..EUR200609-200709

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGRS19#,URS190,UZS190200501-200709

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050iGRS190,UZS190200501-200511

main47875-22221iGRS190,UZS190200511-200707

sub47875-30340

main47875-30340iGRS19#,URS190,UZS190200707-201104

sub47875-30341

main47875-30341iGRS19#,URS190201104

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGRS190,UZS190200501-200709

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRS190,UZS190200501-201112

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRS19#,URS190,UZS190200501-200709

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-30300iGRS190,UZS190200501-200511

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300iGRS190,UZS190200501-200705

16 parts on this diagram · 6 diagrams in section
