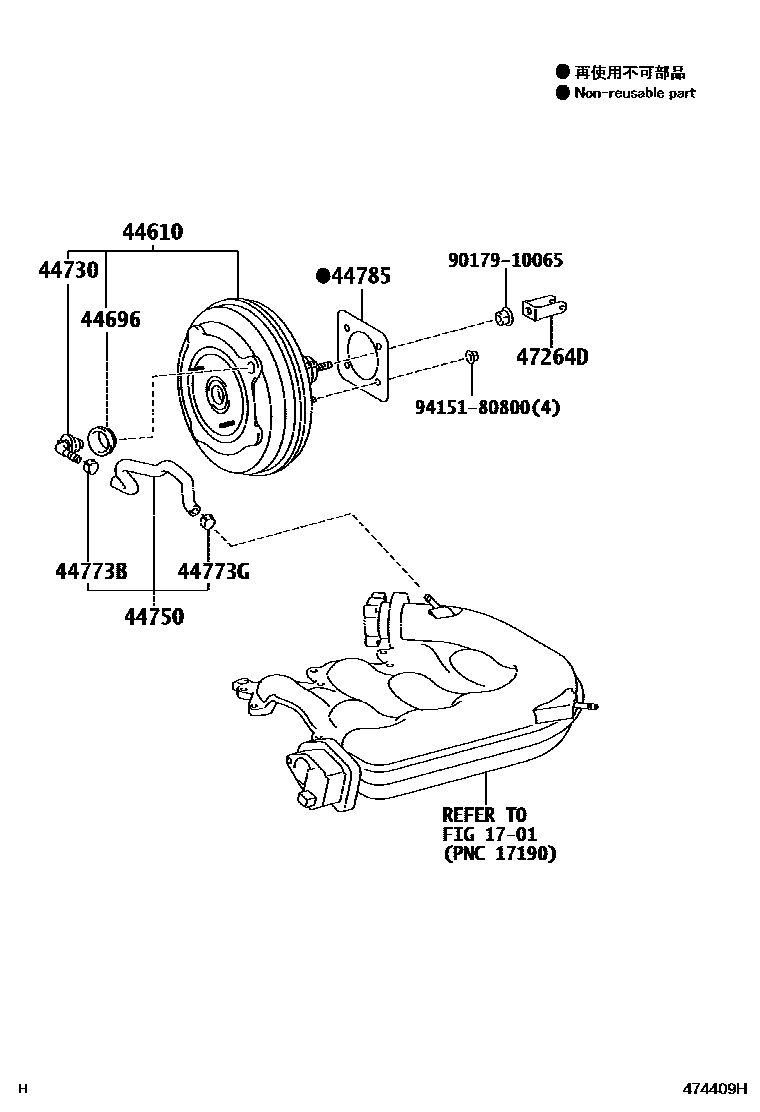

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-30A30iGRS190..LHD200501-201112

main44610-30A40iGRS190..RHD200501-201112

44696GROMMET, CHECK VALVE

main90480-24015iGRS190200501-200709

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iGRS190200501-201112

44750HOSE ASSY, VACUUM

main44750-30A30iGRS190..LHD200501-200709

main44750-30A50iGRS190..RHD200501-200709

main44750-53140iGRS196200907

44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)

main96133-41500iGRS190200501-200709

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGRS190200501-200709

44785GASKET, BRAKE BOOSTER

main44785-47010iGRS190200501-200709

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGRS190200501-201112

9017910065

main90179-10065

9415180800

main94151-80800

11 parts on this diagram · 3 diagrams in section
