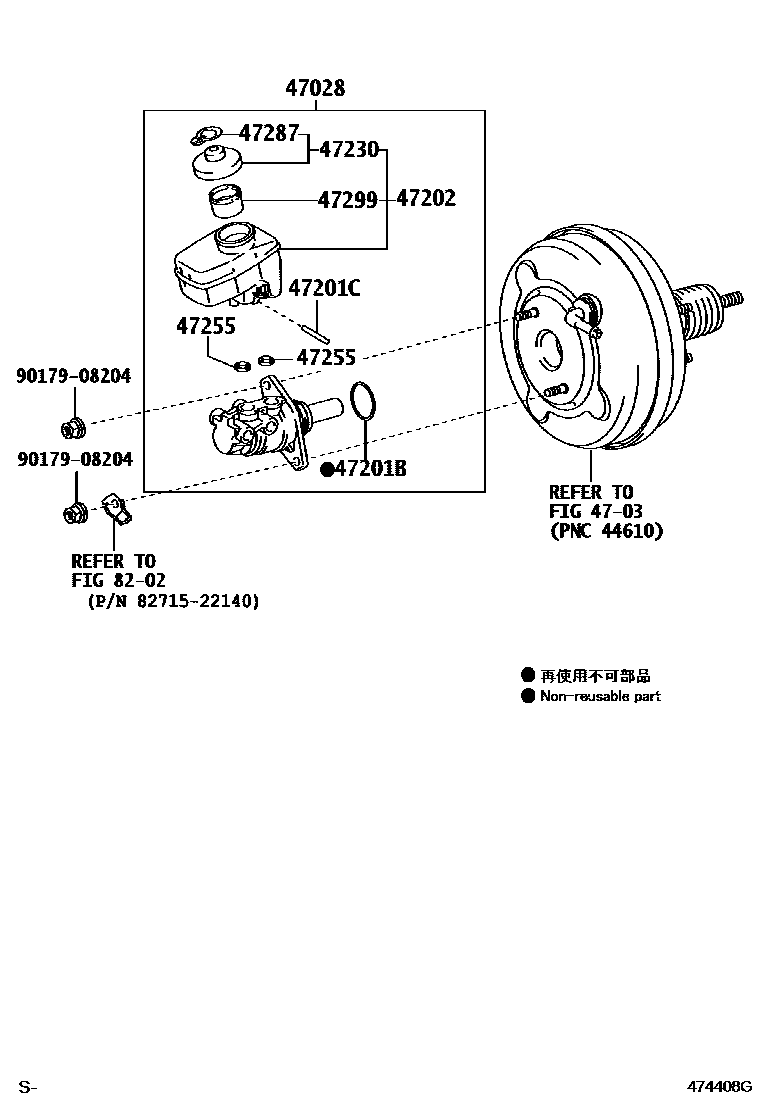

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-30010iGRS190..RHD200501-201112

main47028-30030iGRS190..LHD200501-201112

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30760iUZS190..RHD200501-200709

main47201-30770iUZS190..LHD200501-200809

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGRS19#200501-200709

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGRS19#200501-200709

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30170iGRS190..RHD200501-200709

main47220-30180iGRS19#..LHD200501-200709

main47220-30190iURS190..RHD200501-200709

main47220-30200iURS190,UZS190..LHD200501-200709

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGRS190,UZS190200501-200709

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iUZS190200501-200709

main90029-48001iGRS19#200501-200709

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGRS190,UZS190200501-200709

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRS190;UZS190..LHD200501-200709

main47299-30190iUZS190..RHD200501-200709

8202

9017908204

main90179-08204

12 parts on this diagram · 4 diagrams in section
