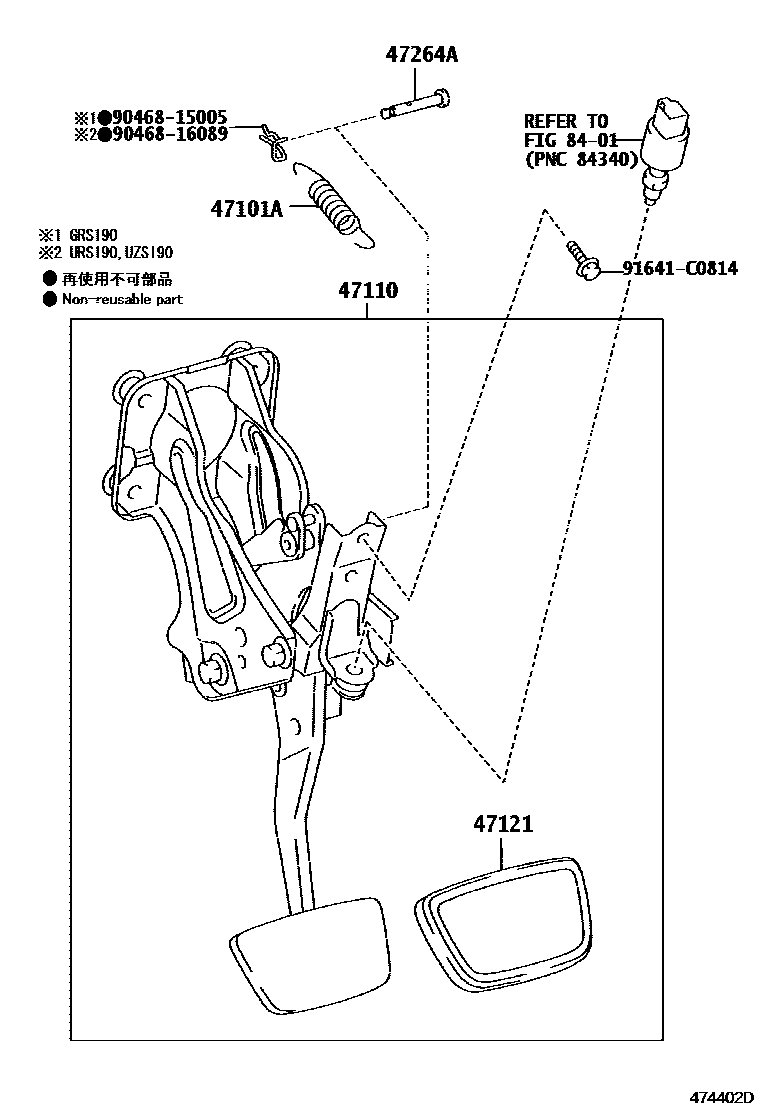

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13009iGRS19#200501-200709

main90507-14017iURS190,UZS190200709

main90905-07007iUZS190200501-200709

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30400iGRS190..RHD200501-200909

sub47110-30401

main47110-30401iGRS190..RHD200910-201112

main47110-30410iURS190..RHD200501-200909

sub47110-30411

main47110-30411iURS190..RHD200910-201112

main47110-30420iGRS190..LHD200501-200909

sub47110-30421

main47110-30421iGRS190..LHD200910-201112

main47110-30430iURS190,UZS190..LHD200501-200909

sub47110-30431

main47110-30431iURS190..LHD200910-201112

main47110-30440iGRS196200907-200909

sub47110-30441

main47110-30441iGRS196200910-201112

47121PAD, BRAKE PEDAL

main47121-50020iGRS190,UZS190200501-200709

47264APIN(FOR PUSH ROD)

main90249-06180iGRS190200501-200709

main90249-10199iURS190,UZS190200501-200709

8401

9046815005

main90468-15005

9046816089

main90468-16089

91641C0814

main91641-C0814

8 parts on this diagram · 2 diagrams in section
