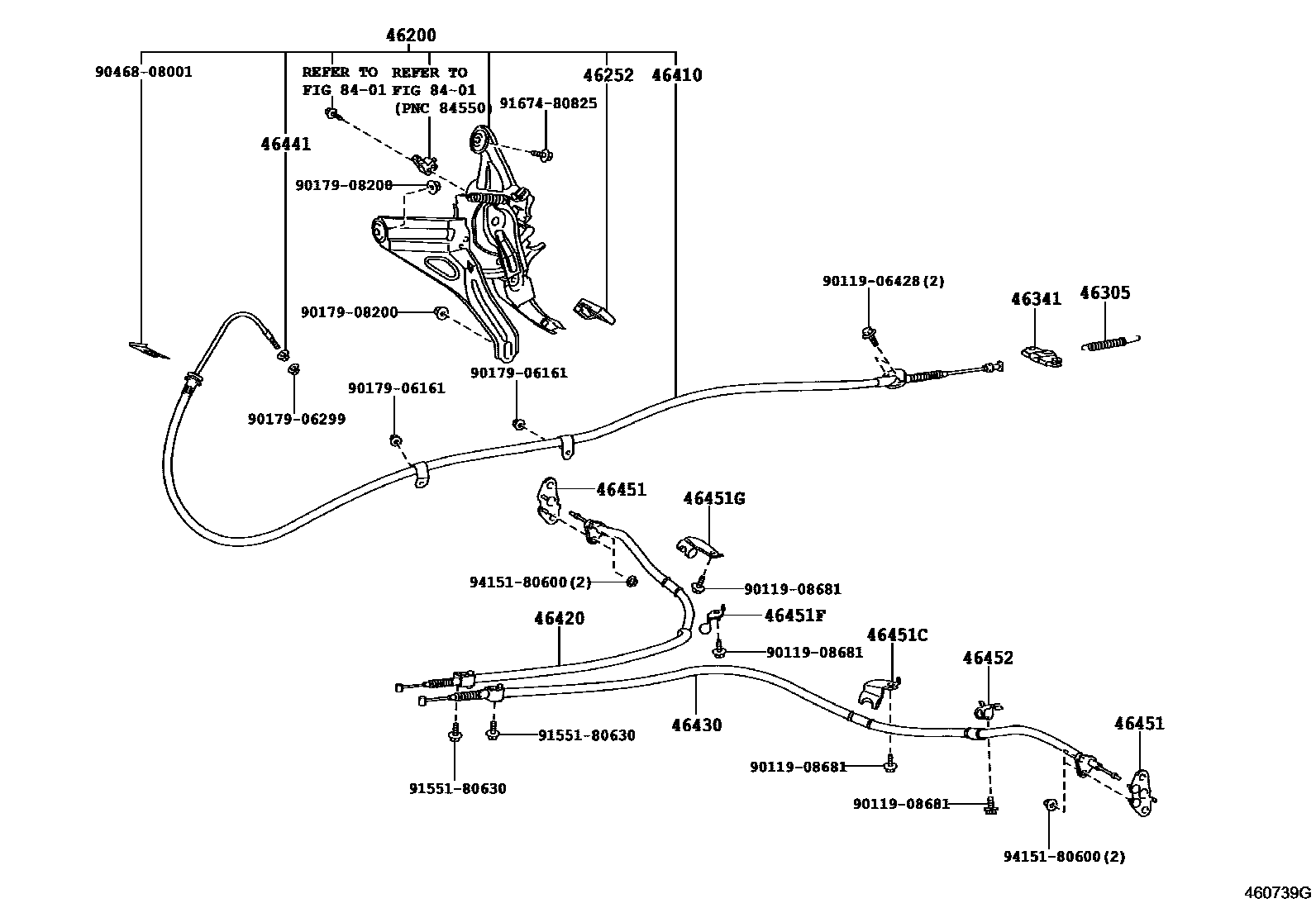

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-30420iGRS190,UZS190..LHD200501-201112

main46200-30430iGRS196200907-201112

main46200-30440iGRS190,UZS190..RHD200501-201112

sub46210-22360

sub46410-30780

sub46441-12010

sub90468-08001

46252PAD, PARKING PEDAL

main46252-22010iGRS190,UZS190200501-201112

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-50020iGRS190,UZS190200501-201112

46341EQUALIZER, PARKING BRAKE

main46341-22060iGRS190,UZS190200501-201112

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30760iGRS190,UZS190..LHD200501-201112

main46410-30771iGRS196200907-201112

main46410-30780iGRS190,URS190..RHD200501-201112

sub46410-30781

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30580iGRS190,UZS190200501-201007

sub46420-30581

sub46601-30231

sub46602-30231

main46420-30581iGRS19#,URS190201007-201112

46430CABLE ASSY, PARKING BRAKE, NO.3

main46420-30580iGRS190,UZS190200501-201007

sub46420-30581

sub46601-30231

sub46602-30231

main46420-30581iGRS19#,URS190201007-201112

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGRS190,UZS190200501-201112

46451BRACKET, CABLE SUPPORT

main46451-50050iGRS190,UZS190200501-201112

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iGRS190,UZS190200501-201112

46451FBRACKET, CABLE SUPPORT

main46451-30170iGRS190200501-201112

main46451-30210iGRS196,URS190,UZS190200501-201112

46451GBRACKET, CABLE SUPPORT

main46451-30190iGRS19#,URS190,UZS190200501-201112

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iGRS190,UZS190200501-201112

8401

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017906299

main90179-06299

9017908200

main90179-08200

9046808001

main90468-08001

9155180630

main91551-80630

9167480825

main91674-80825

9415180600

main94151-80600

23 parts on this diagram · 4 diagrams in section
