STEERING COLUMN & SHAFT

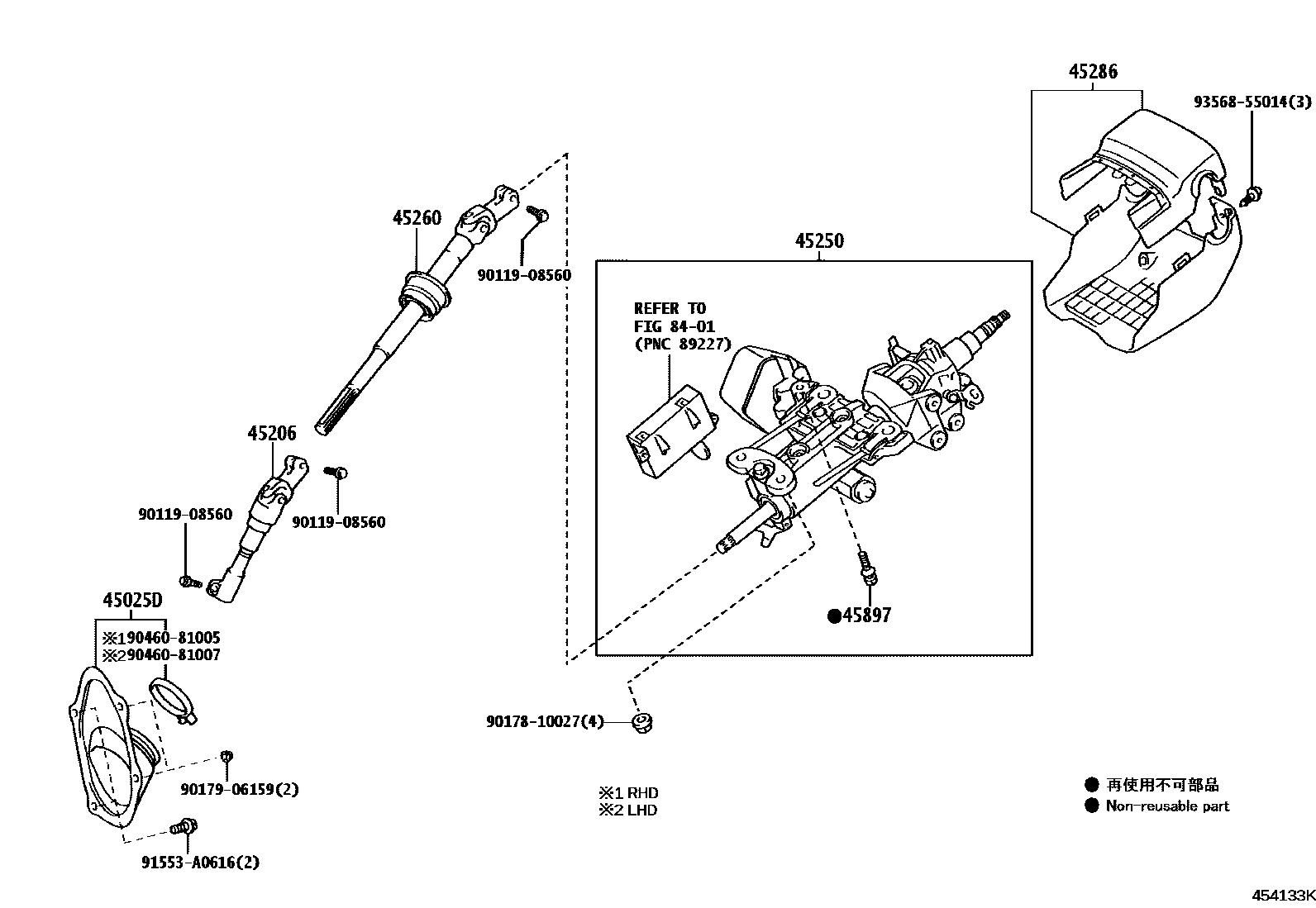

Parts diagram
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-30350i¥2,020200501-201112
main45025-30370i¥1,970200501-201112
main45025-30380i¥1,960200501-201112
main45025-30390i¥1,820200501-201112
main45025-30400i¥2,890200907-201111
sub45025-30401
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
main45206-30100i¥12,600200501-200709
sub45206-30140¥12,600
main45206-30110i¥12,600200501-200709
sub45206-30111¥12,600
main45206-30111i¥12,600200709-201112
PAINTED=GREEN
main45206-30120i¥12,600200501-200709
sub45206-30140¥12,600
main45206-30130i¥12,600200501-200709
sub45206-30111¥12,600
main45206-30131i200709-201103
PAINTED=GOLD
sub45206-30111¥12,600
main45206-30140i¥12,600200709-201112
PAINTED=BROWN
main45206-30150i¥12,600200709-201103
PAINTED=YELLOW GREEN
sub45206-30140¥12,600
45250COLUMN ASSY, STEERING
main45250-30A50i¥161,000200501-201011
sub45810-30210¥83,000
sub45020-30A60¥19,000
sub45892-30010¥430
sub45897-12020¥210
sub89227-30020¥52,700
sub93219-15010¥160
sub93381-15010¥60
main45250-30A60i¥161,000200501-201011
sub45810-30210¥83,000
sub45020-30A60¥19,000
sub45892-30020¥430
sub45897-12020¥210
sub89227-30020¥52,700
sub93219-15010¥160
sub93381-15010¥60
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
main45260-30160i¥18,600200501-200709
main45260-30200i¥18,600200709-201112
sub45260-30201¥18,600
main45260-30210i¥24,900200907-201112
45286COVER, STEERING COLUMN
main45286-3A905-C0i200501-201112
BLACK,TRIM1#,2#
sub45286-3A905¥2,340
main45286-3A905-E0i200501-201112
ORCHID BROWN,TRIM0#
sub45286-3A905¥2,340
45897BOLT, STEERING LOCK SET
main45897-12020i¥210200501-201112
8401
9011908560
main90119-08560¥110
9017810027
main90178-10027¥100
9017906159
main90179-06159¥70
9046081005
main90460-81005¥310
9046081007
main90460-81007¥220
91553A0616
main91553-A0616¥60
9356855014
main93568-55014¥70

14 parts on this diagram · 6 diagrams in section
