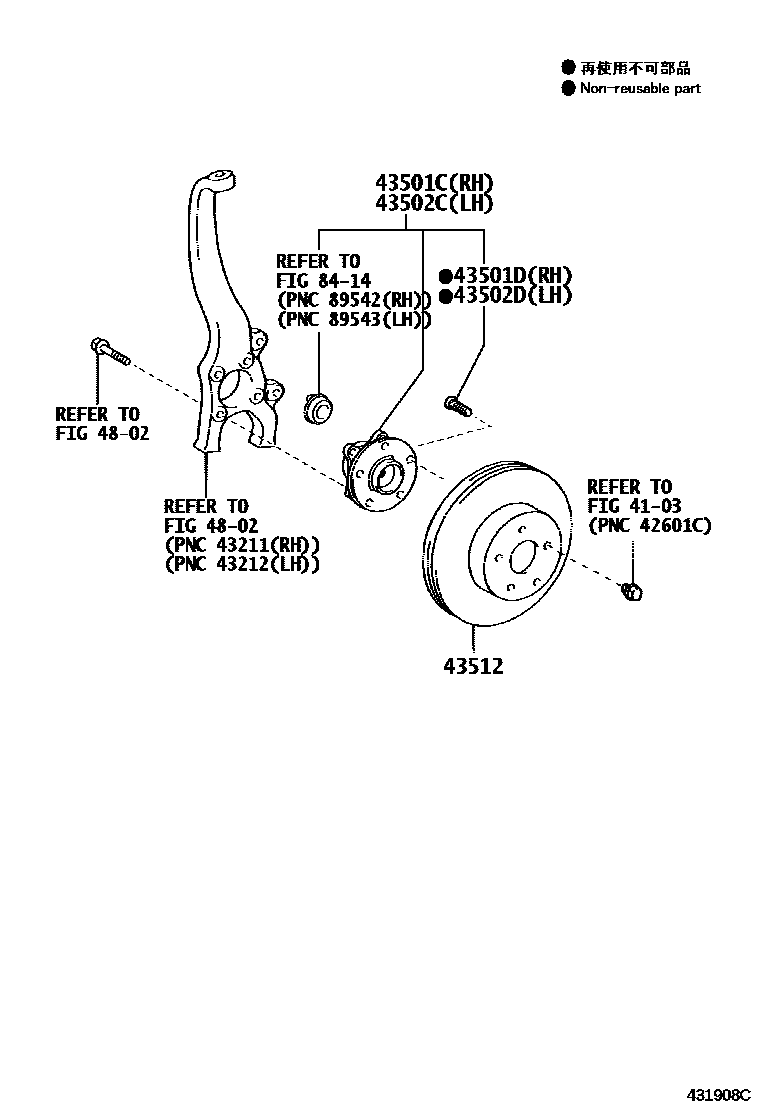

FRONT AXLE HUB

0001 1 0002 1

4103

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30010iGRS190,UZS190200501-201112

sub43550-30011

main43550-30030iGRS196200907-201112

sub43550-30031

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070iGRS190,UZS190200501-201112

sub90942-02049

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-30010iGRS190,UZS190200501-201112

sub43560-30011

main43560-30030iGRS196200907-201112

sub43560-30031

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070iGRS19#,URS190,UZS190200501-201112

sub90942-02049

43512DISC, FRONT

main43512-22260iGRS190,UZS190200501-201112

RH

sub43512-22261

main43512-30330iGRS196200907-201112

RH

main43516-22010iGRS190,UZS190200501-201112

LH

sub43516-22011

main43516-30020iGRS196200907-201112

LH

4802

8414

8 parts on this diagram · 2 diagrams in section
