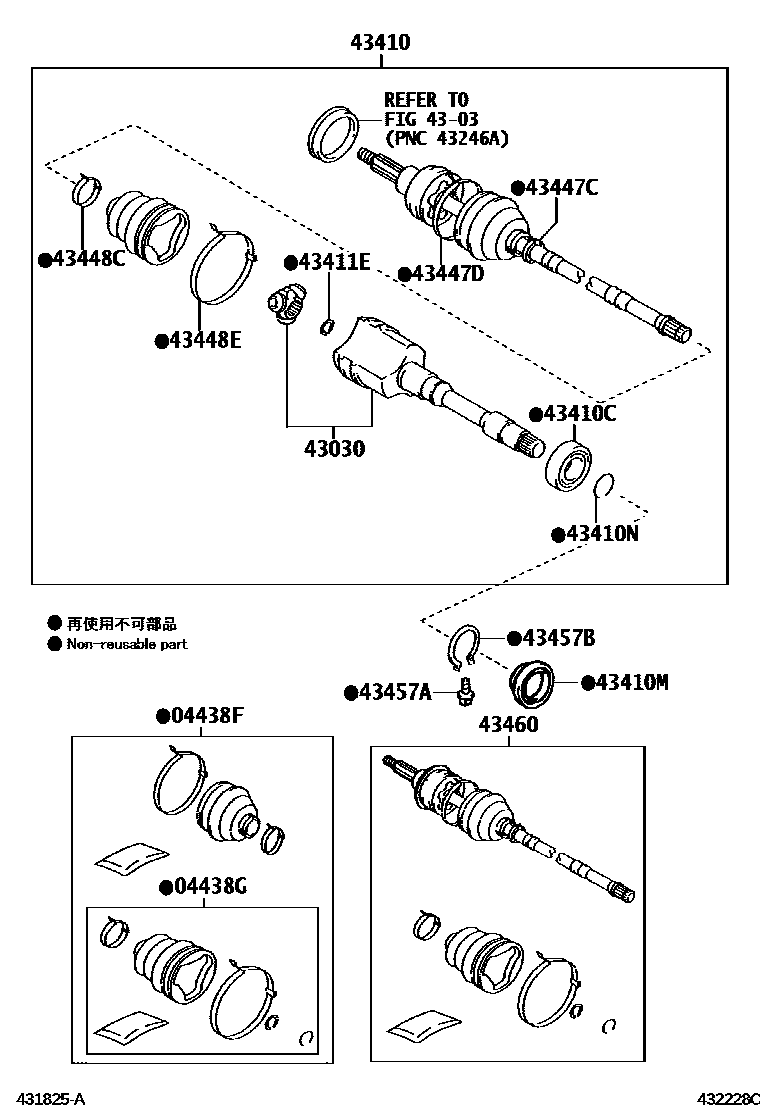

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-30010iGRS196200907-201008

sub04427-30080

main04427-30080iGRS196201008

sub04427-30081

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-30070iGRS196200907

sub04437-30071

4303

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-30020iGRS196200907

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-30020iGRS196200907-201007

sub43410-30021

main43410-30021iGRS196201008-201112

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36010iGRS196200907

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35030iGRS196200907-201112

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iGRS196200907

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iGRS196200907

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22030iGRS196200907

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22040iGRS196200907

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01804iGRS196200907

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01803iGRS196200907

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iGRS196200907

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iGRS196200907

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39215iGRS196200907-201008

sub43460-39216

main43460-39216iGRS196201008

sub43460-39217

16 parts on this diagram · 2 diagrams in section
