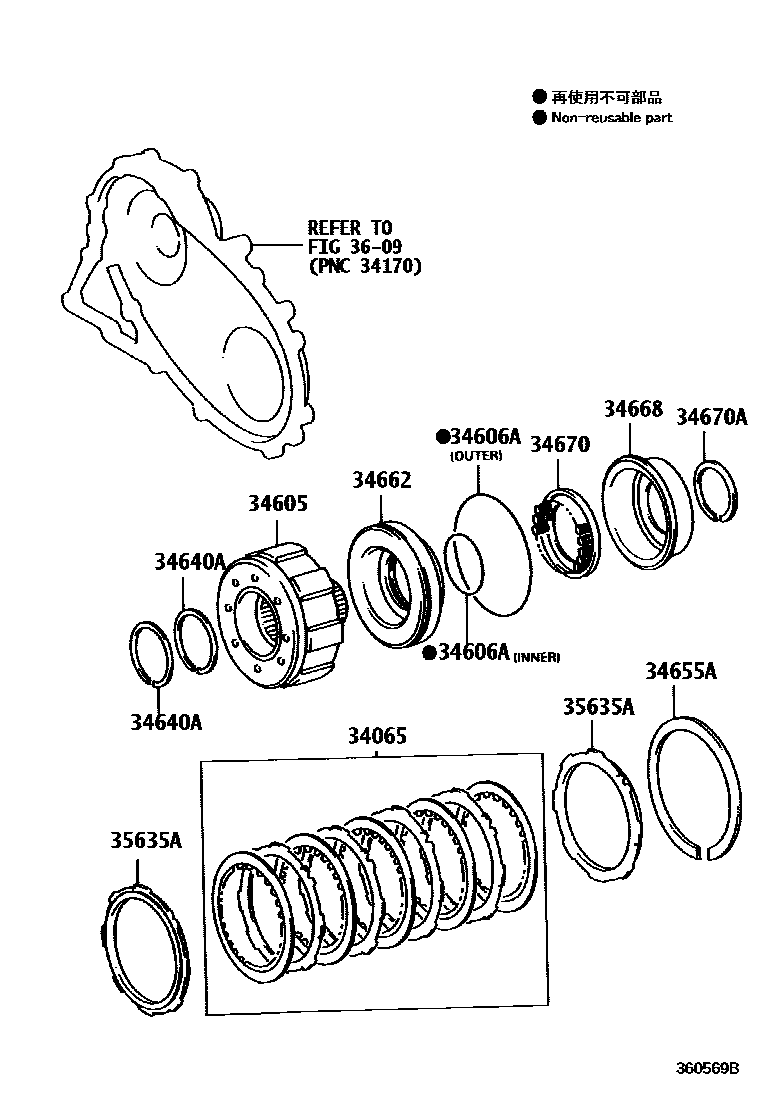

TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT
34065DISC SET, CENTER DIFFERENTIAL CLUTCH
34605DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH
34606ARING, O (FOR TRANSFER DIRECT CLUTCH PISTON)
INNER
OUTER
34640ARING, SEAL(FOR TRANSFER CENTER SUPPORT)
34655ARING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)
34662PISTON, CENTER DIFFERENTIAL CLUTCH
34668BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE
34670SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN
34670ARING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)
35635AFLANGE, CENTER DIFFERENTIAL CLUTCH DISC
T=3.4,MARK 92
T=3.2,MARK 91
T=3.0,MARK 90
3609
11 parts on this diagram · 1 diagram in section
