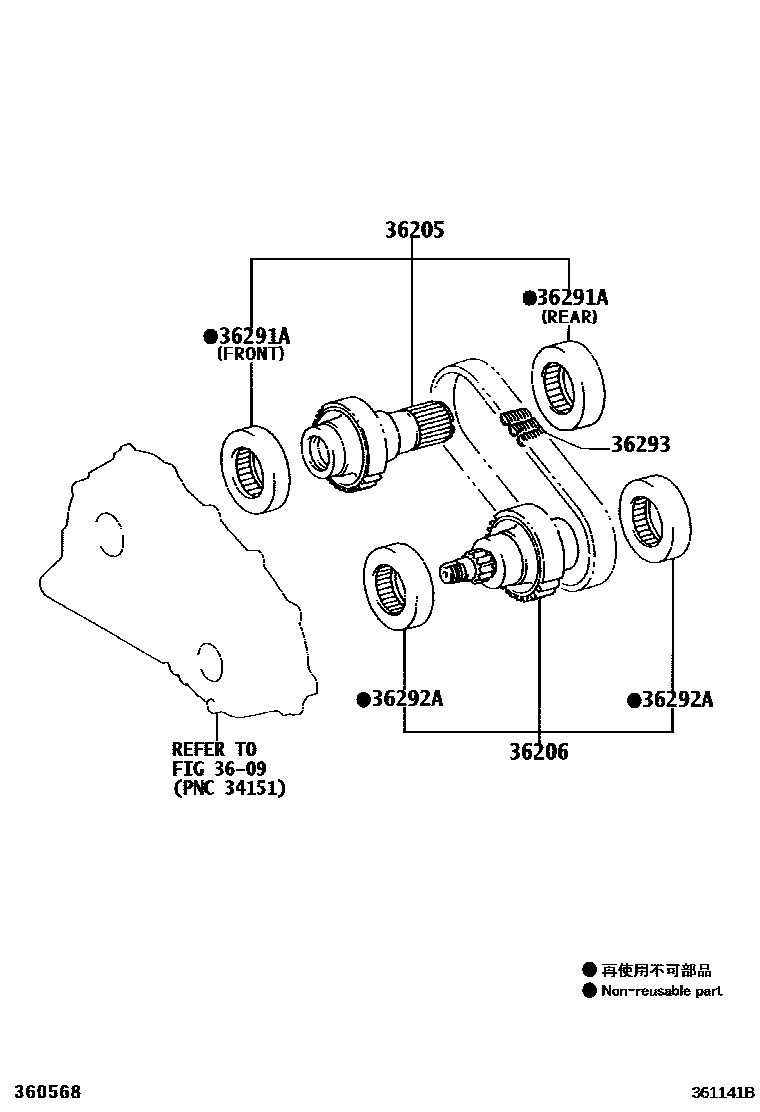

TRANSFER GEAR

3609

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-30030iGRS196200907

36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH

main36206-30030iGRS196200907

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90363-55002iGRS196200907-201112

REAR

main90363-55004iGRS196200907-201112

FRONT

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-55004iGRS196200907

36293CHAIN, TRANSFER FRONT DRIVE

main36293-30020iGRS196200907

6 parts on this diagram · 1 diagram in section
