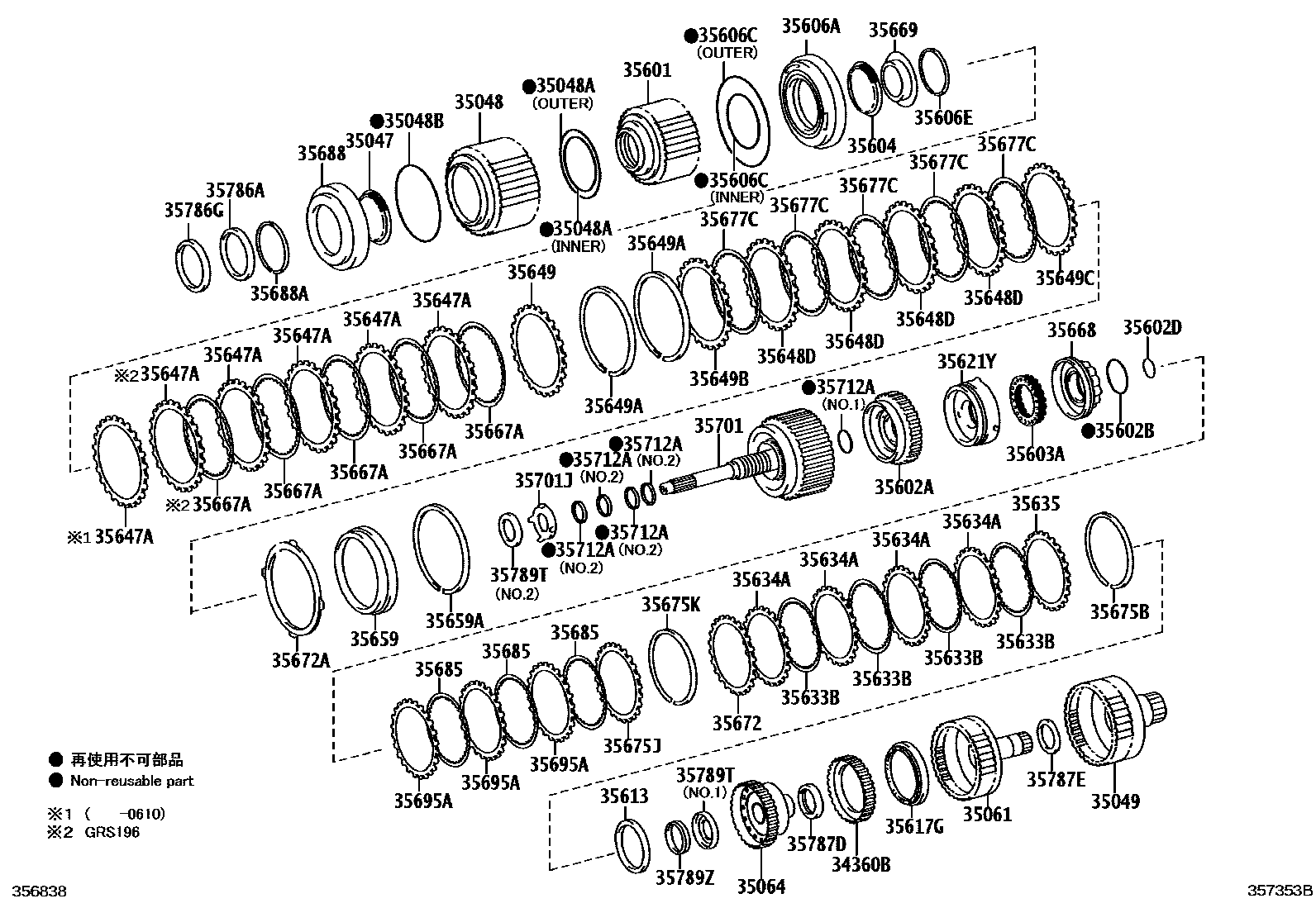

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1A760E,A760H 0003 1A761E 0004 1A960E 0005 1AA80E

34360BCLUTCH ASSY, UNDERDRIVE 1 WAY

main34360-50010iUZS190;GRS190..GCC,GEN¥19,600200501-200709

35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN

main35047-22010iGRS190..EUR¥3,570200501-200709

main35047-50010iURS190¥2,050200709

main35047-60010iUZS190;GRS190..GCC,GEN¥2,820200501-200709

35048PISTON SUB-ASSY, REVERSE CLUTCH

main35048-22010iGRS190..EUR¥9,400200501-200709

main35048-60010iGRS196,UZS190;GRS190..GCC,GEN¥7,100200501-200709

35048ARING, O (FOR REVERSE CLUTCH PISTON)

main90301-98003iGRS190..EUR¥270200501-200709

main90301-99141iGRS196;GRS190..GCC,GEN¥200200501-200709

OUTER

main90301-99147iGRS196;GRS190..GCC,GEN¥200200501-200709

INNER

35048BRING, O (FOR REVERSE CLUTCH PISTON)

main90301-99140iGRS196,UZS190;GRS190..GCC,GEN¥200200501-200709

main90301-99154iGRS190..EUR¥270200501-200709

35049HUB SUB-ASSY, REVERSE CLUTCH

main35049-22010iGRS190..EUR¥12,800200501-200709

main35049-30020iGRS190..GCC,GEN¥9,700200501-200709

main35049-50010iUZS190¥15,400200501-200809

35061HUB SUB-ASSY, FORWARD CLUTCH

main35061-22010iGRS190..EUR¥12,000200501-200709

main35061-50010iGRS196,UZS190;GRS190..GCC,GEN¥9,000200501-200709

35064HUB SUB-ASSY, COAST CLUTCH

main35064-22010iGRS190..EUR¥7,000200501-200709

main35064-50010iUZS190;GRS190..GCC,GEN¥5,200200501-200709

35601DRUM SUB-ASSY, CLUTCH

main35601-50030iUZS190;GRS190..GCC,GEN¥19,400200501-200709

35602APISTON SUB-ASSY, FORWARD CLUTCH

main35602-34020iGRS196;GRS190..GCC,GEN¥5,200200907

main35602-50020iUZS190;GRS190..GCC,GEN¥8,400200501-200907

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-30007iGRS190..EUR¥230200501-200709

main90301-98004iGRS190..GCC,GEN¥200200501-200709

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-35003iUZS190;GRS190..GCC,GEN¥100200501-200709

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-22050iGRS190..EUR¥2,420200501-200709

main35603-50030iUZS190;GRS190..GCC,GEN¥1,830200501-200709

main35603-50040iURS190¥1,130200709

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-22010iGRS190..EUR¥1,220200501-200709

main35604-50020iURS190¥700200709

main35604-60020iGRS196,UZS190;GRS190..GCC,GEN¥890200501-200709

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35652-22040iGRS190..EUR¥1,900200501-200709

main35652-30060iGRS190..GCC,GEN¥2,270200501-200610

sub35652-30061¥1,900

main35652-30061iGRS190..GCC,GEN¥1,900200610-200709

main35652-60020iUZS190¥2,290200501-200608

sub35652-60021¥1,430

main35652-60021iGRS196,UZS190¥1,430200608-200709

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-72003iGRS190..EUR¥440200501-200709

OUTER

main90301-74002iGRS196;GRS190..GCC,GEN¥170200501-200709

INNER

main90301-99058iGRS190..EUR¥200200501-200709

INNER

main90301-99149iGRS196;GRS190..GCC,GEN¥200200501-200709

OUTER

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-64003iGRS190,UZS190¥90200501-200709

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main35613-50010iUZS190;GRS190..GCC,GEN¥1,410200501-201005

sub35613-50011¥880

main35613-50011iGRS196;GRS190..GCC,GEN¥880201005

35617GRING, CLUTCH DRUM OIL SEAL

main35614-50010iGRS196,UZS190;GRS190..GCC,GEN¥230200501-200709

main35617-22040iGRS190..EUR¥640200501-200709

main35617-50040iURS190¥130200709

35621YPISTON, COAST CLUTCH

main35621-22030iGRS190..EUR¥3,560200501-200709

main35621-50010iGRS196,UZS190;GRS190..GCC,GEN¥3,430200501-200709

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-22070iGRS190..EUR¥2,220200501-200709

main35633-50010iUZS190;GRS190..GCC,GEN¥1,680200501-200709

main35633-50020iURS190¥2,080200709

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-22110iGRS190..EUR¥1,140200501-200709

T=1.8

main35634-50010iGRS196,UZS190;GRS190..GCC,GEN¥1,050200501-200709

T=2.4

main35634-50020iURS190¥1,360200709

T=2.0

35635FLANGE, FORWARD CLUTCH

main35635-22010iGRS190..EUR¥3,470200501-200709

T=3.0,MARK 0

main35635-22020iGRS190..EUR¥3,470200501-200709

T=3.1,MARK 1

main35635-22030iGRS190..EUR¥3,470200501-200709

T=3.2,MARK 2

main35635-22040iGRS190..EUR¥3,470200501-200709

T=3.3,MARK 3

main35635-22050iGRS190..EUR¥3,470200501-200709

T=3.4,MARK 4

main35635-22060iGRS190..EUR¥3,470200501-200709

T=3.5,MARK 5

main35635-22070iGRS190..EUR¥3,470200501-200709

T=3.6,MARK 6

main35635-22080iGRS190..EUR¥3,470200501-200709

T=3.7,MARK 7

main35635-22090iGRS190..EUR¥3,470200501-200709

T=3.8,MARK 8

main35635-22100iGRS190..EUR¥3,470200501-200709

T=3.9,MARK 9

main35635-50090iURS190¥2,210200709

T=4.4,MARK 0

main35635-50100iURS190¥2,210200709

T=4.5,MARK 1

main35635-50110iURS190¥2,210200709

T=4.6,MARK 2

main35635-50120iURS190¥2,210200709

T=4.7,MARK 3

main35635-50130iURS190¥2,210200709

T=4.8,MARK 4

main35635-50140iURS190¥2,210200709

T=4.9,MARK 5

main35635-50150iURS190¥2,210200709

T=5.0,MARK 6

main35635-50160iURS190¥2,210200709

T=5.1,MARK 7

main35635-50170iURS190¥2,210200709

T=5.2,MARK 8

main35635-60010iGRS196,UZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.0,MARK 0

main35635-60020iUZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.1,MARK 1

main35635-60030iUZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.2,MARK 2

main35635-60040iGRS196,UZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.3,MARK 3

main35635-60050iGRS196,UZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.4,MARK 4

main35635-60060iUZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.5,MARK 5

main35635-60070iUZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.6,MARK 6

main35635-60080iUZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.7,MARK 7

main35635-60090iGRS196,UZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.8,MARK 8

main35635-60100iUZS190;GRS190..GCC,GEN¥2,620200501-200709

T=3.9,MARK 9

main35635-60110iUZS190;GRS190..GCC,GEN¥2,620200501-200709

T=4.0,MARK A

35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35647-22040iGRS190..EUR¥2,120200501-200709

main35647-60010iUZS190¥1,050200501-200709

35648DPLATE, CLUTCH, NO.3

main35648-22020iGRS190..EUR¥1,700200501-200709

main35648-50010iUZS190;GRS190..GCC,GEN¥1,210200501-200709

35649FLANGE, REVERSE CLUTCH

main35649-22010iGRS190..EUR¥1,550200501-200503

sub35649-22080¥1,290

main35649-22080iGRS190..EUR¥1,290200503-200709

main35649-50080iURS190¥980200709-200809

T=3.0

main35649-50080iURS190¥980200809

T=3.0,MARK 0

main35649-50090iURS190¥980200809

T=3.1,MARK 1

main35649-50090iURS190¥980200709-200809

T=3.1

main35649-50100iURS190¥980200809

T=3.2,MARK 2

main35649-50100iURS190¥980200709-200809

T=3.2

main35649-50110iURS190¥980200809

T=3.3,MARK 3

main35649-50110iURS190¥980200709-200809

T=3.3

main35649-50120iURS190¥980200809

T=3.4,MARK 4

main35649-50120iURS190¥980200709-200809

T=3.4

main35649-50130iURS190¥980200709-200809

T=3.5

main35649-50130iURS190¥980200809

T=3.5,MARK 5

main35649-50140iURS190¥980200809

T=3.6,MARK 6

main35649-50140iURS190¥980200709-200809

T=3.6

main35649-50150iURS190¥980200809

T=3.7,MARK 7

main35649-50150iURS190¥980200709-200809

T=3.7

main35649-50160iURS190¥980200709-200809

T=3.8

main35649-50160iURS190¥980200809

T=3.8,MARK 8

main35649-60030iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.0,MARK 2

main35649-60040iGRS196,UZS190;GRS190..GCC,GEN¥980200501-200709

T=3.1,MARK 3

main35649-60050iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.2,MARK 4

main35649-60060iGRS196,UZS190;GRS190..GCC,GEN¥980200501-200709

T=3.3,MARK 5

main35649-60070iGRS196,UZS190;GRS190..GCC,GEN¥980200501-200709

T=3.4,MARK 6

main35649-60080iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.5,MARK 7

main35649-60090iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.6,MARK 8

main35649-60100iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.7,MARK 9

main35649-60110iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.8,MARK 10

35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)

main90520-99063iGRS190..EUR¥360200501-200709

main90520-99074iGRS196,UZS190;GRS190..GCC,GEN¥240200501-200709

main90521-99142iURS190¥250200709

35649BFLANGE, REVERSE CLUTCH

main35649-60030iGRS196,UZS190;GRS190..GCC,GEN¥980200501-200709

35649CFLANGE, REVERSE CLUTCH

main35649-22020iGRS190..EUR¥1,290200501-200709

T=2.4,MARK 0

main35649-22030iGRS190..EUR¥1,290200501-200709

T=2.5,MARK 1

main35649-22040iGRS190..EUR¥1,290200501-200709

T=2.6,MARK 2

main35649-22050iGRS190..EUR¥1,290200501-200709

T=2.7,MARK 3

main35649-22060iGRS190..EUR¥1,290200501-200709

T=2.8,MARK 4

main35649-22070iGRS190..EUR¥1,290200501-200709

T=2.9,MARK 5

main35649-22080iGRS190..EUR¥1,290200501-200709

T=3.0,MARK 6

main35649-22090iGRS190..EUR¥1,290200501-200709

T=3.1,MARK 7

main35649-22100iGRS190..EUR¥1,290200501-200709

T=3.2,MARK 8

main35649-22110iGRS190..EUR¥1,290200501-200709

T=3.3,MARK 9

main35649-22120iGRS190..EUR¥1,290200501-200709

T=3.4,MARK A

main35649-22130iGRS190..EUR¥1,290200501-200709

T=3.5,MARK B

main35649-60010iUZS190;GRS190..GCC,GEN¥980200501-200709

T=2.8,MARK 0

main35649-60020iUZS190;GRS190..GCC,GEN¥980200501-200709

T=2.9,MARK 1

main35649-60030iGRS196,UZS190;GRS190..GCC,GEN¥980200501-200709

T=3.0,MARK 2

main35649-60040iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.1.MARK 3

main35649-60050iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.2,MARK 4

main35649-60060iGRS196,UZS190;GRS190..GCC,GEN¥980200501-200709

T=3.3,MARK 5

main35649-60070iGRS196,UZS190;GRS190..GCC,GEN¥980200501-200709

T=3.4,MARK 6

main35649-60080iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.5,MARK 7

main35649-60090iGRS196,UZS190;GRS190..GCC,GEN¥980200501-200709

T=3.6,MARK 8

main35649-60100iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.7,MARK 9

main35649-60110iUZS190;GRS190..GCC,GEN¥980200501-200709

T=3.8,MARK A

35659SLEEVE, REVERSE CLUTCH REACTION

main35659-22030iGRS190..EUR¥2,520200501-200709

main35659-60020iUZS190;GRS190..GCC,GEN¥1,580200501-200709

35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)

main90520-99083iGRS196,UZS190;GRS190..GCC,GEN¥240200501-200709

main90520-99096iGRS190..EUR¥260200501-200709

35667ADISK, DIRECT CLUTCH

main35667-22030iGRS190..EUR¥1,560200501-200709

main35667-60020iUZS190¥1,180200501-200709

35668BALANCER, CLUTCH, NO.1

main35668-22010iGRS190..EUR¥2,380200501-200709

main35668-50010iUZS190;GRS190..GCC,GEN¥2,210200501-200709

main35668-50020iURS190¥2,460200709

35669BALANCER, CLUTCH, NO.2

main35669-22010iGRS190..EUR¥2,380200501-200709

main35669-50010iURS190¥2,650200709

main35669-60010iUZS190;GRS190..GCC,GEN¥1,650200501-200709

35672PLATE, CLUTCH CUSHION

main35672-22020iGRS190..EUR¥750200501-200709

main35672-50040iUZS190;GRS190..GCC,GEN¥990200501-200709

main35672-50050iURS190¥1,020200709

35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)

main35672-22030iGRS190..EUR¥2,400200501-200709

main35672-60020iUZS190;GRS190..GCC,GEN¥700200501-200709

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99082iUZS190;GRS190..GCC,GEN¥240200501-200709

main90520-99095iGRS190..EUR¥260200501-200709

35675JFLANGE, COAST CLUTCH

main35675-22240iGRS190..EUR¥2,220200501-200709

MARK 0

main35675-22250iGRS190..EUR¥2,270200501-200709

MARK 1

main35675-22260iGRS190..EUR¥2,270200501-200709

MARK 2

main35675-22270iGRS190..EUR¥2,360200501-200709

MARK 3

main35675-22280iGRS190..EUR¥2,500200501-200709

MARK 4

main35675-22290iGRS190..EUR¥2,570200501-200709

MARK 5

main35675-22300iGRS190..EUR¥2,670200501-200709

MARK 6

main35675-22310iGRS190..EUR¥2,720200501-200709

MARK 7

main35675-22320iGRS190..EUR¥2,800200501-200709

MARK 8

main35675-22330iGRS190..EUR¥2,850200501-200709

MARK 9

main35675-50010iGRS196,UZS190;GRS190..GCC,GEN¥1,990200501-200709

T=3.0

main35675-50020iUZS190;GRS190..GCC,GEN¥2,600200501-200709

T=3.1

main35675-50030iGRS196,UZS190;GRS190..GCC,GEN¥2,600200501-200709

T=3.2

main35675-50040iGRS196,UZS190;GRS190..GCC,GEN¥2,190200501-200709

T=3.3

main35675-50050iUZS190;GRS190..GCC,GEN¥2,600200501-200709

T=3.4

main35675-50060iGRS196,UZS190;GRS190..GCC,GEN¥2,600200501-200709

T=3.5

main35675-50070iUZS190;GRS190..GCC,GEN¥2,600200501-200709

T=3.6

main35675-50080iUZS190;GRS190..GCC,GEN¥2,600200501-200709

T=3.7

main35675-50090iUZS190;GRS190..GCC,GEN¥2,530200501-200709

T=3.8

main35675-50100iGRS196,UZS190;GRS190..GCC,GEN¥2,600200501-200709

T=3.9

35675KRING, SNAP (FOR COAST CLUTCH FLANGE)

main90520-97001iGRS190..EUR¥260200501-200709

main90520-99089iUZS190;GRS190..GCC,GEN¥190200501-200709

35677CDISC, REAR CLUTCH

main35677-22100iGRS190..EUR¥3,000200501-200709

main35677-50040iUZS190¥3,610200501-200809

main35677-50050iGRS196;GRS190..GCC,GEN¥2,080200501-200709

35685DISC, COAST CLUTCH

main35685-22010iGRS190..EUR¥2,560200501-200709

main35685-50010iGRS196,UZS190;GRS190..GCC,GEN¥1,940200501-200709

35688BALANCER, CLUTCH, NO.3

main35688-22010iGRS190..EUR¥3,510200501-200709

main35688-50010iGRS196,UZS190;GRS190..GCC,GEN¥3,810200501-200709

main35688-50020iURS190¥1,810200709

35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)

main90520-79001iGRS190,UZS190¥90200501-200709

35695APLATE, COAST CLUTCH

main35695-22010iGRS190..EUR¥2,250200501-200709

main35695-50010iGRS196,UZS190;GRS190..GCC,GEN¥1,890200501-200709

35701SHAFT SUB-ASSY, INPUT

main35701-22130iGRS190..EUR¥26,300200501-200709

main35701-30130iGRS190..GCC,GEN¥35,000200501-200907

main35701-30131iGRS196;GRS190..GCC,GEN¥22,100200907

main35701-50030iUZS190¥36,500200501-200809

35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

main90374-33001iGRS190..EUR¥1,090200501-200709

main90374-34011iGRS196,UZS190;GRS190..GCC,GEN¥830200501-200709

35712ARING, INPUT SHAFT OIL SEAL

main35712-60010iUZS190¥480200709-200809

main35712-60010iUZS190¥480200501-200709

NO.2

main90301-33006iGRS190..GCC,GEN¥160200501-200709

NO.1

main90301-33017iGRS196;GRS190..GCC,GEN¥130200709

NO.1

35786ARACE, THRUST BEARING, NO.1

main35786-60010iGRS190,UZS190¥1,080200501-200709

35786GBEARING,THRUST NEEDLE ROLLER

main90374-71001iGRS190,UZS190¥1,200200501-200709

35787DBEARING, THRUST NEEDLE ROLLER

main90374-35006iUZS190;GRS190..GCC,GEN¥730200501-200709

main90374-36002iGRS190..EUR¥1,210200501-200709

35787EBEARING, THRUST NEEDLE ROLLER

main90374-42008iGRS190,UZS190¥1,120200501-200709

35789TRACE, THRUST BEARING (INPUT SHAFT REAR)

main35789-22090iGRS190..EUR¥540200501-200709

main35789-50050iGRS196,UZS190;GRS190..GCC,GEN¥590200501-200709

NO.1

main35789-50060iGRS196,UZS190;GRS190..GCC,GEN¥1,060200501-200709

NO.2

35789ZBEARING, THRUST NEEDLE ROLLER

main90374-21004iGRS196,UZS190;GRS190..GCC,GEN¥1,290200501-200709

main90374-22010iGRS190..EUR¥690200501-200709

53 parts on this diagram · 4 diagrams in section
