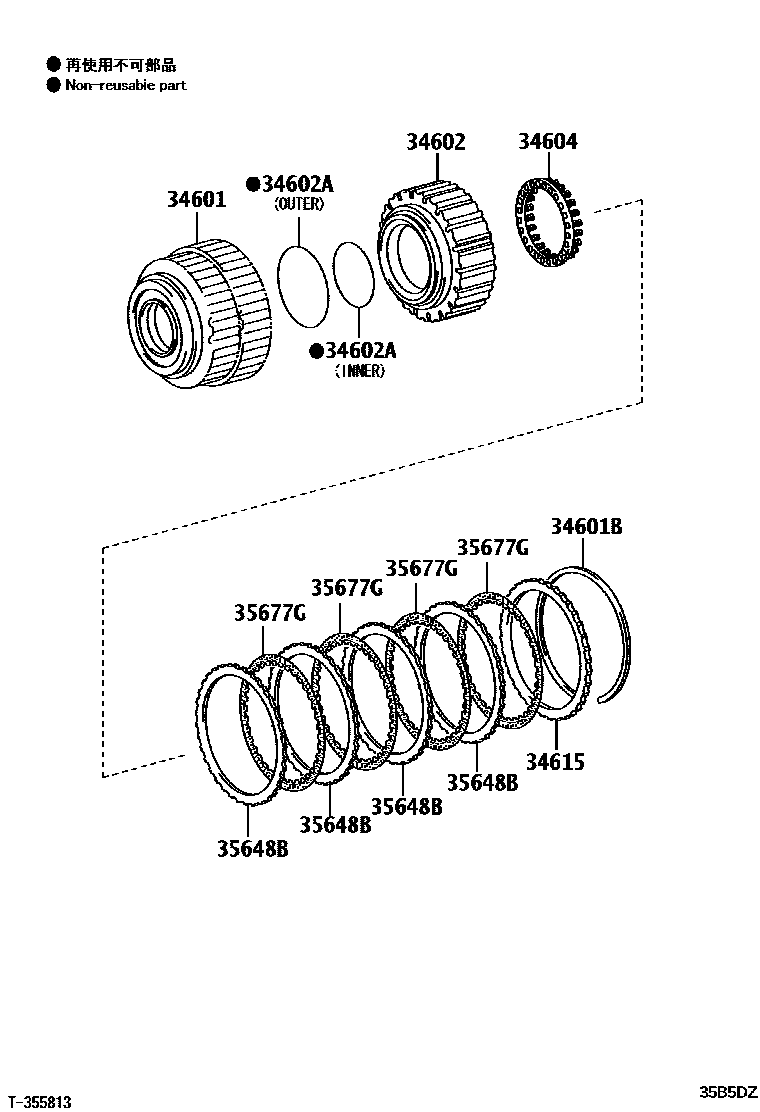

OVERDRIVE GEAR (ATM)
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
INNER
OUTER
34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34615FLANGE, OVERDRIVE CLUTCH
T=4.0
T=4.1
T=4.2
T=4.3
T=4.4
T=4.5
T=4.6
35648BPLATE, CLUTCH (FOR OVERDRIVE BRAKE)
8 parts on this diagram · 1 diagram in section
