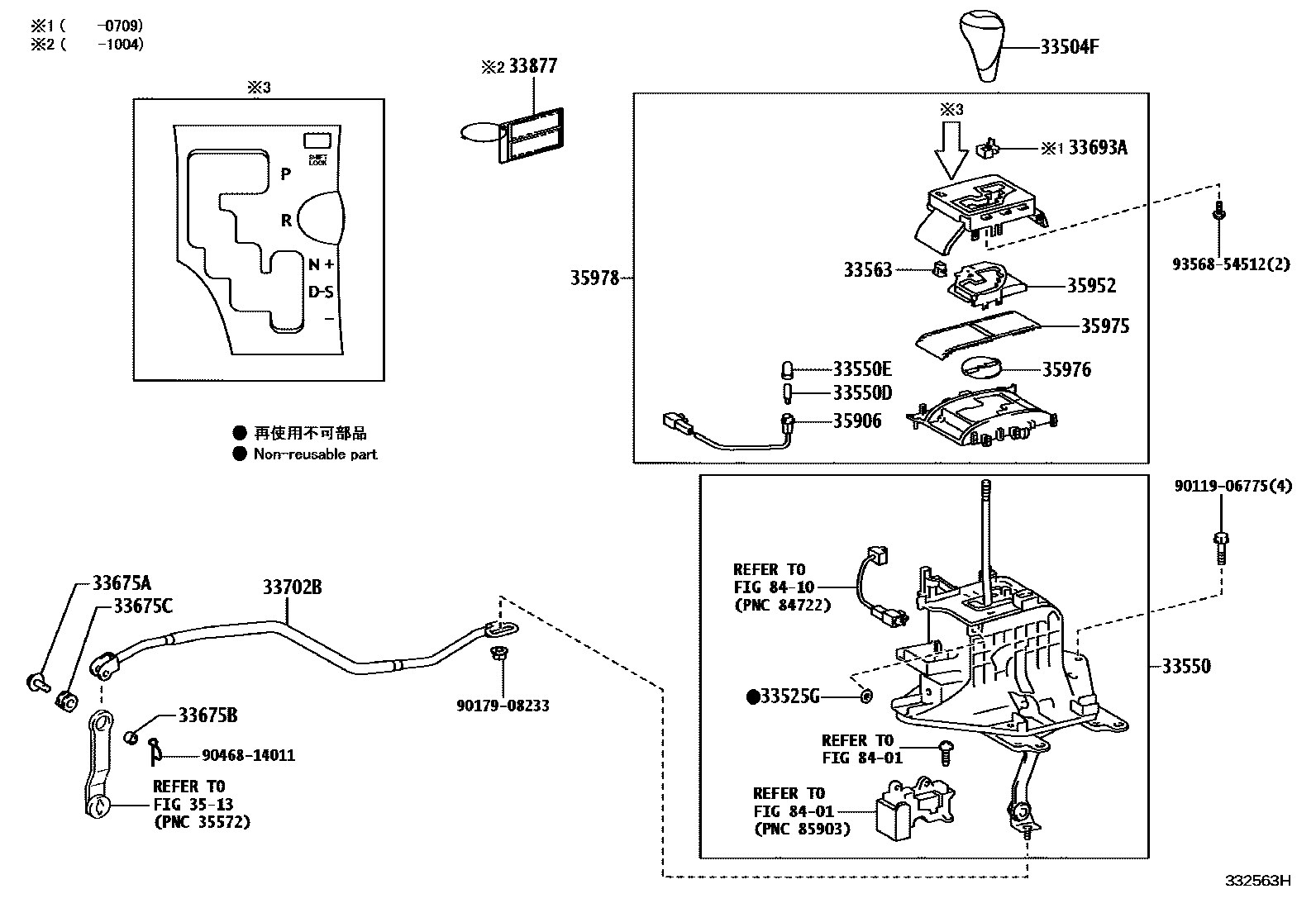

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
STEERING WHEEL-3-SPOKE WOOD & LEATHER,REDDISH BROWN,TRIM2#
sub33504-30351
STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & REDDISH BROWN,TRIM2#
sub33504-30352
STEERING WHEEL-3-SPOKE WOOD & LEATHER,ORCHID BROWN,TRIM0#
sub33504-30352
STEERING WHEEL-3-SPOKE WOOD & LEATHER,DK.GRAY,TRIM1#
sub33504-30361
STEERING WHEEL-3-SPOKE WOOD & LEATHER,MIDIUM BROWN,TRIM0#
sub33504-30361
STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK,TRIM11,26
sub33504-30352
STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK,TRIM11
sub33504-30352
STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & DK.GRAY,TRIM25
sub33504-30352
STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & DK.GRAY,TRIM1#
sub33504-30352
STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & GRAY,TRIM10
sub33504-30352
STEERING WHEEL-3-SPOKE WOOD & LEATHER,ORCHID BROWN,TRIM0#
sub33504-30352
33525GRING, SHIFT LEVER
33550FLOOR SHIFT ASSY, TRANSMISSION
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33563BUTTON, SHIFT LOCK RELEASE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33693ASHIM, SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33877LABEL, SHIFT LOCK INFORMATION, NO.1
3513
35906WIRE SUB-ASSY, INDICATOR LAMP
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
8410
9011906775
main90119-06775
9017908233
main90179-08233
9046814011
main90468-14011
9356854512
main93568-54512
24 parts on this diagram · 3 diagrams in section
