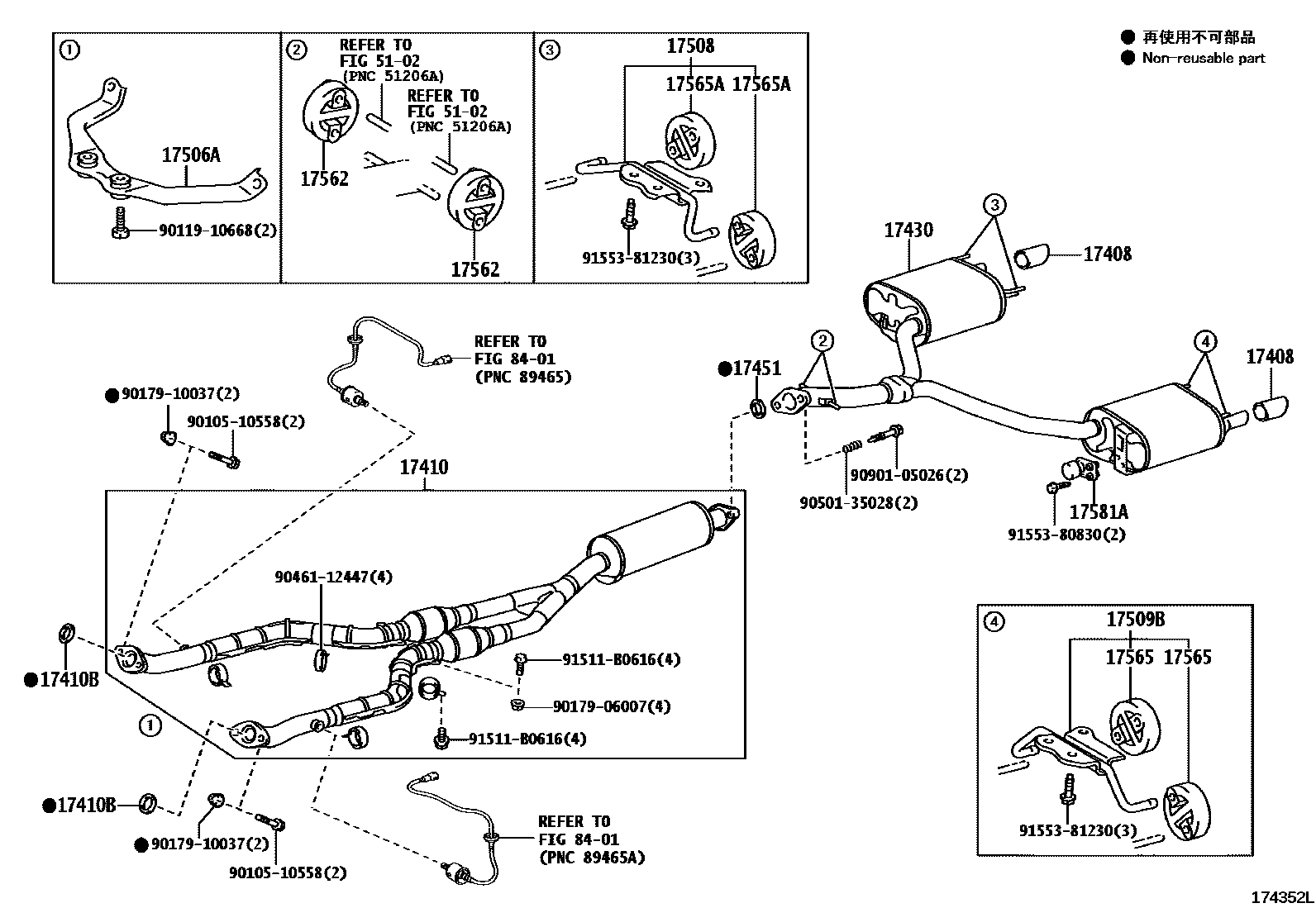

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-31050i3GR#,3UZFE..GRS190,UZS190200607-200912

main17408-31050i3GRFE..GRS190..GCC;3UZFE..UZS190..LHD..EUR200611-200709

CHINA SPEC

main17408-74080i2GRFSE,3GR#,1UR#..GRS19#,URS190200501-200606

17410PIPE ASSY, EXHAUST, FRONT

main17410-31460i3GR#..GRS190200501-200709

*114=TOYOTA/GE5/Y

main17410-31810i3GR#..GRS190200709-201002

*114=TOYOTA/GE5/Y

sub17410-31811

main17410-31811i3GR#..GRS190201003-201102

*114=TOYOTA/GE5/Y

sub17410-31812

main17410-31812i3GR#..GRS190201103-201112

*114=TOYOTA/GE5/Y

main17410-31880i3GRFSE..GRS190..LHD201007-201102

*114=TOYOTA/GE5/Y,KAZAKHSTAN SPEC

sub17410-31881

main17410-31880i3GRFSE..GRS190..LHD201007-201102

*114=TOYOTA/GE5/Y,SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC

sub17410-31881

main17410-31880i3GRFE..GRS190..GCC200709-201102

*114=TOYOTA/GE5/Y,CHINA SPEC

sub17410-31881

main17410-31880i3GRFSE..GRS190..LHD200809-201102

*114=TOYOTA/GE5/Y,UKRAINE SPEC

sub17410-31881

main17410-31881i3GRFSE..GRS190..LHD201103-201112

*114=TOYOTA/GE5/Y,SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC

main17410-31881i3GRFE..GRS190..GCC201103-201112

*114=TOYOTA/GE5/Y,CHINA SPEC

main17410-31881i3GRFE..GRS190..GCC201103-201112

*114=TOYOTA/GE5/Y,UKRAINE SPEC

main17410-31881i3GRFE..GRS190..GCC201103-201112

*114=TOYOTA/GE5/Y,KAZAKHSTAN SPEC

main17410-31B20i2GRFSE..GRS196200907-201002

*114=TOYOTA/GR1/Y

sub17410-31B21

main17410-31B21i2GRFSE..GRS196201003-201102

*114=TOYOTA/GR1/Y

sub17410-31B22

main17410-31B22i2GRFSE..GRS196201103-201112

*114=TOYOTA/GR1/Y

main17410-31B30i2GRFSE..GRS196200907-201102

*114=TOYOTA/GR1/Y,UKRAINE SPEC

sub17410-31B31

main17410-31B30i2GRFSE..GRS196200907-201102

*114=TOYOTA/GR1/Y,RUSSIA SPEC

sub17410-31B31

main17410-31B30i2GRFSE..GRS196201007-201102

*114=TOYOTA/GR1/Y,KAZAKHSTAN SPEC

sub17410-31B31

main17410-31B31i2GRFSE..GRS196201103-201112

*114=TOYOTA/GR1/Y,UKRAINE SPEC

main17410-31B31i2GRFSE..GRS196201103-201112

*114=TOYOTA/GR1/Y,KAZAKHSTAN SPEC

main17410-31B31i2GRFSE..GRS196201103-201112

*114=TOYOTA/GR1/Y,RUSSIA SPEC

main17410-31C90i3GRFE..GRS190..GEN201007-201102

HONG KONG SPEC

sub17410-31C91

main17410-31C91i3GRFE..GRS190..GEN201103-201112

HONG KONG SPEC

main17410-38300i1UR#..URS190200709-201002

*114=TOYOTA/PA1/Y

sub17410-38301

main17410-38301i1UR#..URS190201003-201102

*114=TOYOTA/PA1/Y

sub17410-38302

main17410-38302i1UR#..URS190201103-201112

*114=TOYOTA/PA1/Y

main17410-38380i1URFE..URS190200809-201007

CHINA SPEC

main17410-50430i3UZFE..UZS190200501-200710

*114=TOYOTA/DA2/Y

main17410-50520i3UZFE..UZS190200710-200809

*114=TOYOTA/DA2/Y

17410BGASKET, EXHAUST PIPE

main90917-06059i3UZFE..UZS190200501-200809

main90917-06078i3GR#..GRS190200501-200709

17430PIPE ASSY, EXHAUST, TAIL

main17430-31550i2GRFSE..GRS196200907

main17430-31A00i2GRFSE..GRS196200907

RUSSIA SPEC

main17430-31A00i2GRFSE..GRS196200907

UKRAINE SPEC

main17430-31A00i2GRFSE..GRS196201007

KAZAKHSTAN SPEC

main17430-38590i1UR#..URS190200709

main17430-38620i1URFE..URS190200809-201007

CHINA SPEC

main17430-50270i3GR#,3UZFE..GRS190,UZS190200501-200709

main17430-50310i3GRFSE..GRS190..LHD201007

KAZAKHSTAN SPEC

main17430-50310i3GRFE..GRS190..GCC;3UZFE..UZS190..LHD..EUR200611-200709

CHINA SPEC

main17430-50310i3UZFE..UZS190..EUR200709-200809

main17430-50310i3GRFSE..GRS190..LHD200809

UKRAINE SPEC

main17430-50310i3GRFSE..GRS190..LHD201007

SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC

17451GASKET, EXHAUST PIPE

main17451-31010i3GR#,3UZFE..GRS190,UZS190200501-200809

sub17451-31011

main17451-31011i2GRFSE,3GR#,1UR#..GRS19#,URS190200807-201102

sub17451-31012

main17451-31012i2GRFSE,3GR#,1UR#..GRS19#,URS190201103

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i3GR#..GRS190200501-200709

main17506-50120i3UZFE..UZS190200501-200809

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-50060i2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190200501-200709

17509BSUPPORT, EXHAUST PIPE NO.4

main17509-50030i2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190200501-200709

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-22040i2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190200709

main17565-46040i3GR#,3UZFE..GRS190,UZS190200501-200709

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-11160i3GR#,3UZFE..GRS190,UZS190200501-200709

main17565-22030i2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190200709

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160i3GR#,3UZFE..GRS190,UZS190200501-200709

main17565-22030i2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190200709

17581ADAMPER, EXHAUST PIPE

main17581-46140i3GRFE..GRS190..GCC;3UZFE..UZS190..LHD..EUR200611-200709

CHINA SPEC

main17581-46140i3GR#,3UZFE..GRS190,UZS190200501-200709

5102

8401

9010510558

main90105-10558

9011910668

main90119-10668

9017906007

main90179-06007

9017910037

main90179-10037

9046112447

main90461-12447

9050135028

main90501-35028

9090105026

main90901-05026

91511B0616

main91511-B0616

9155380830

main91553-80830

9155381230

main91553-81230

24 parts on this diagram · 4 diagrams in section
