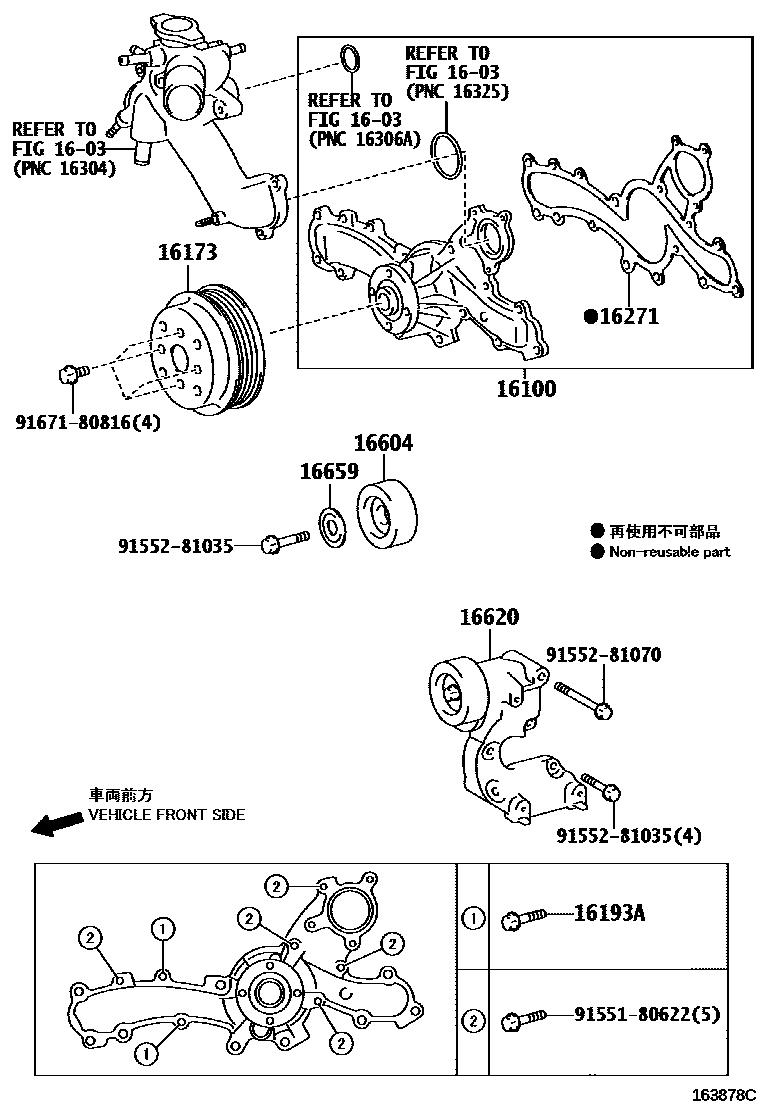

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39435i3GR#..GRS190200501-200903

sub16100-39436

main16100-39436i2GRFSE,3GR#..GRS19#200903

main16100-39505i1UR#..URS190200709-201004

sub16100-39506

main16100-39506i1UR#..URS190201004

main16100-59275i3UZFE..UZS190200501-200809

sub16100-59276

16173PULLEY, WATER PUMP

main16173-31010i3GR#..GRS190200501-200709

main16173-38040i1UR#..URS190200709

sub16173-38041

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i3GR#..GRS190200501-200709

16271GASKET, WATER PUMP

main16271-31020i3GR#..GRS190200501-200709

main16271-38010i1UR#..URS190200709

main16271-50010i3UZFE..UZS190200501-200809

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i3GR#..GRS190200501-200709

main16604-38020i1UR#..URS190200709

main16604-50030i3UZFE..UZS190200501-200809

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W100i3UZFE..UZS190200501-200609

sub16620-0W101

main16620-0W101i3UZFE..UZS190200609-200809

main16620-0W130i1UR#..URS190200709

sub16620-0W131

main16620-31021i3GR#..GRS190200501-200709

main16620-31031i2GRFSE..GRS196200907

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i2GRFSE,3GR#..GRS19#200501-200709

main16659-50022i3UZFE..UZS190200501-200809

9155180622

main91551-80622

9155281035

main91552-81035

9155281070

main91552-81070

9167180816

main91671-80816

12 parts on this diagram · 3 diagrams in section
