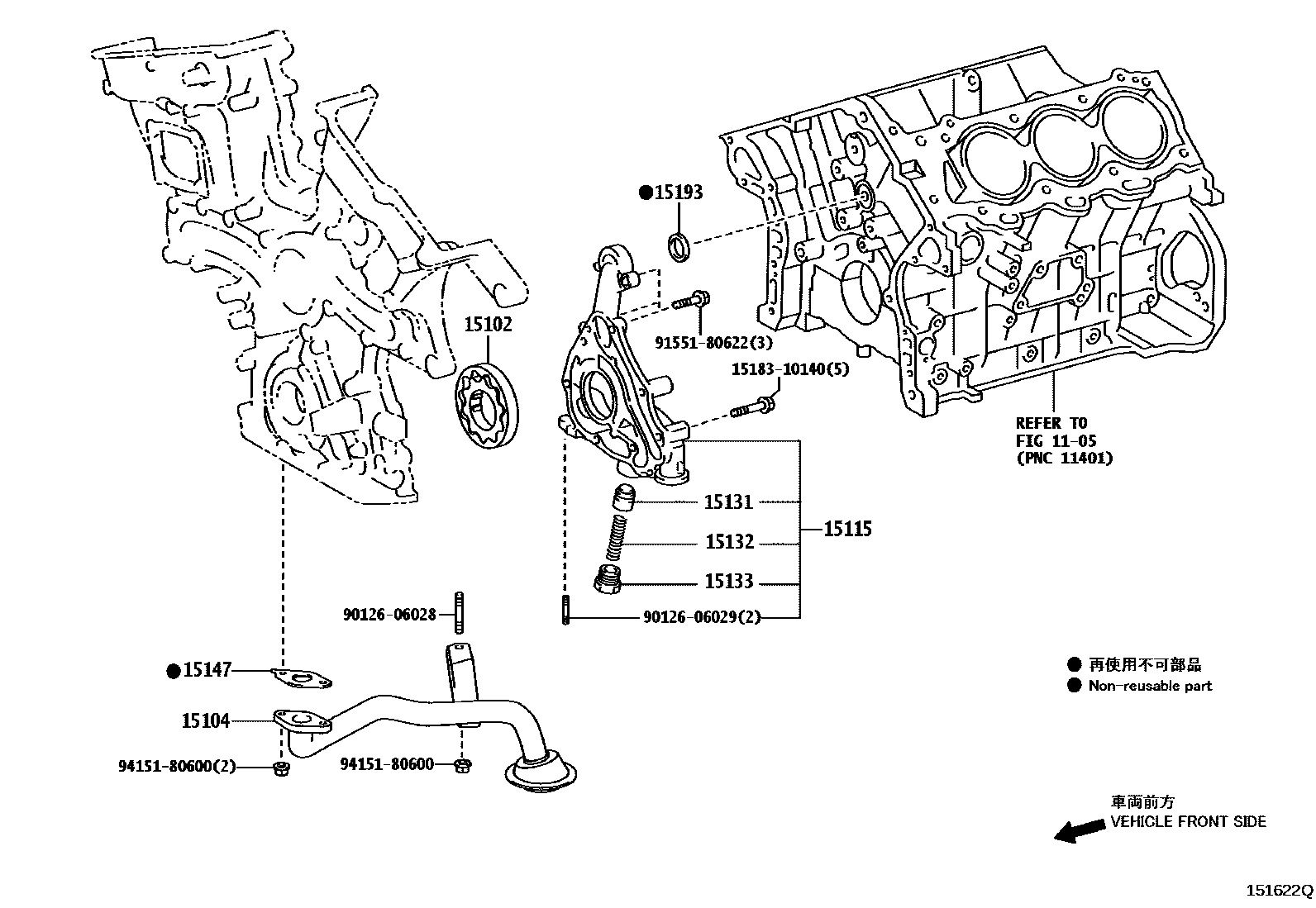

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1105

15102ROTOR SET, OIL PUMP

main15103-31050i3GR#..GRS190¥3,740200501-200709

15104STRAINER SUB-ASSY, OIL

main15104-31080i3GR#..GRS190¥6,900200501-200709

main15104-31090i2GRFSE..GRS196¥4,290200907

main15104-38060i1UR#..URS190¥5,200200709

main15104-50210i3UZFE..UZS190¥8,200200501-200809

15115COVER, OIL PUMP

main15115-31040i3GR#..GRS190¥2,240200501-200709

15131VALVE, OIL PUMP RELIEF

main15131-17010i3GR#..GRS190¥360200501-200709

main15131-38070i1UR#..URS190¥340200709

main15131-46040i3UZFE..UZS190¥310200501-200809

15132SPRING, OIL PUMP RELIEF VALVE

main15132-38070i1UR#..URS190¥230200709

main15132-46020i3UZFE..UZS190¥210200501-200809

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i3UZFE..UZS190¥280200501-200809

main15133-28020i2GRFSE,3GR#..GRS19#¥260200501-200709

main15133-38070i1UR#..URS190¥260200709

15147GASKET, OIL STRAINER

main15147-31060i3GR#..GRS190¥270200501-200709

main15147-50011i3UZFE..UZS190¥380200501-200809

15193GASKET, OIL PUMP

main15193-31020i3GR#..GRS190¥220200501-200709

main15193-38010i1UR#..URS190¥340200709

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140¥210

9012606028

main90126-06028¥60

9012606029

main90126-06029¥60

9155180622

main91551-80622¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 4 diagrams in section
