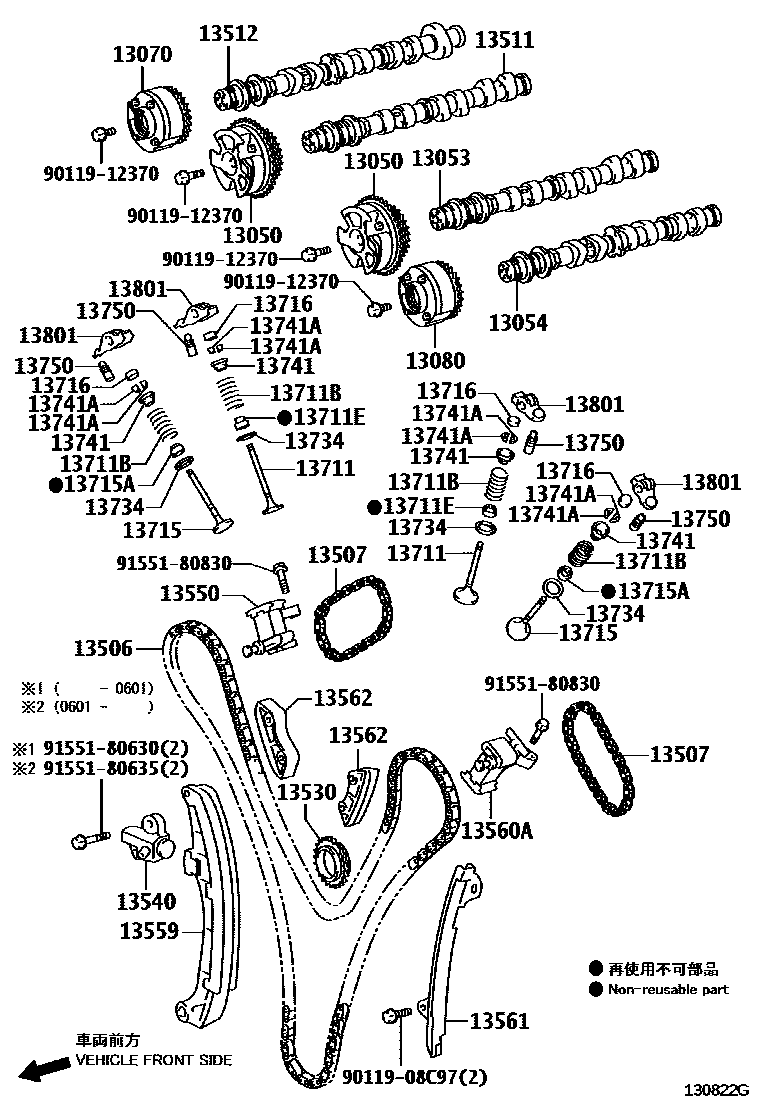

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
sub13050-31040
sub13050-31041
sub13050-31120
sub13050-31121
sub13050-31122
sub13050-31163
MARK 13050-38021
MARK 13050-38022
13507CHAIN SUB-ASSY, NO.2
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
RH
LH
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
RH
LH
RH
LH
13562DAMPER, CHAIN VIBRATION, NO.2
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
NO.1
NO.2
NO.1 & NO.2
9011908C97
main90119-08C97
9011912370
main90119-12370
9155180630
main91551-80630
9155180635
main91551-80635
9155180830
main91551-80830
32 parts on this diagram · 4 diagrams in section
