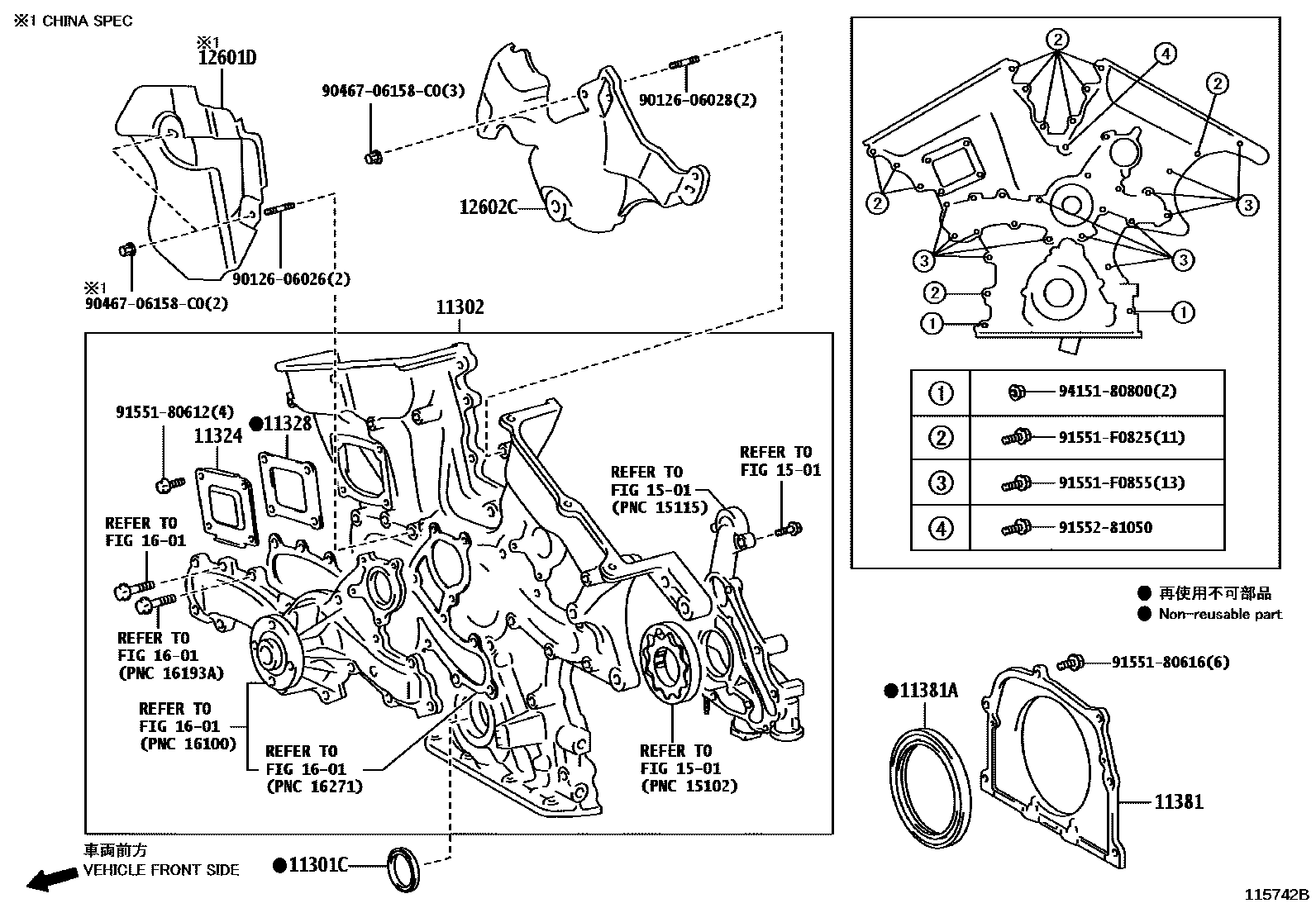

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42036i1UR#..URS190200709

main90311-42037i3GR#..GRS190200501-200905

sub90311-42045

main90311-42045i2GRFSE,3GR#..GRS19#200905

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31041i3GR#..GRS190200501-200508

sub11310-31042

main11310-31042i3GR#..GRS190200508-200709

sub11310-31044

sub91552-81060

main11310-38070i1UR#..URS190200709

11324PLATE, TIMING CHAIN COVER

main11324-31020i3GR#..GRS190200501-200709

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i3GR#..GRS190200501-200709

main11328-38030i1UR#..URS190200709

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31020i3GR#..GRS190200501-200506

sub11381-31021

main11381-31021i3GR#..GRS190200506-200709

main11381-38020i1UR#..URS190200709

main11381-50021i3UZFE..UZS190200501-200809

11381ASEAL, ENGINE REAR OIL

main90311-92006i3GR#..GRS190200501-200802

sub90311-92009

main90311-92009i2GRFSE,3GR#..GRS19#200802-201009

sub90311-92010

main90311-92010i2GRFSE,3GR#..GRS19#201009

main90311-95012i3UZFE..UZS190200501-200809

sub90311-95013

main90311-95013i1UR#..URS190200709

12601DCOVER, ENGINE, NO.1

main12601-31010i2GRFSE,3GRFSE..GRS19#200501-200709

12602CCOVER, ENGINE, NO.2

main12602-31012i3GR#..GRS190200501-201201

sub12602-31013

main12602-31013i3GRFE..GRS190201105

1501

1601

9012606026

main90126-06026

9012606028

main90126-06028

9046706158C0

main90467-06158C0

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0855

main91551-F0855

9155281050

main91552-81050

9415180800

main94151-80800

19 parts on this diagram · 4 diagrams in section
