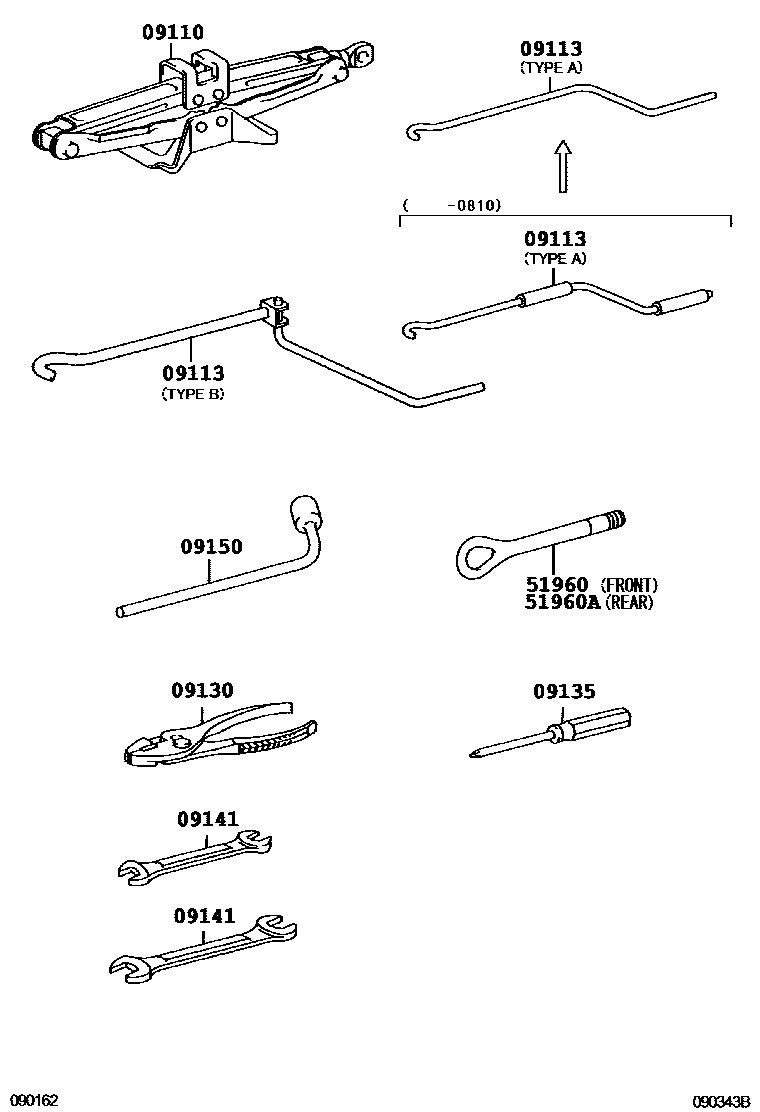

STANDARD TOOL

09110JACK ASSY

main09111-33030iGRS19#,URS190201011

sub09111-76010

main09111-50051iGRS190,UZS190200501-201010

sub09111-76011

main09111-50070iUZS190..EUR200709-200809

09113HANDLE, JACK

main09113-13040iGRS190,URS190..EUR200811

TYPE A:REFER ILLUST.

main09113-22020iGRS190,UZS190..EUR200501-200810

TYPE A:REFER ILLUST.

main09113-44010iURS190..LHD..EUR200709

RUSSIA SPEC,TYPE B:REFER ILLUST.

main09113-44010iGRS190..GEN200501-200709

TYPE B:REFER ILLUST.

main09113-44010iGRS190,UZS190..GCC200501-200709

SPARE TIRE-GROUND TIRE(ALUMI),TYPE B:REFER ILLUST.

09130PLIERS

main09130-50030iGRS190,UZS190200501-200909

main09130-50040iGRS19#,URS190200909-201112

09135DRIVER, SCREW

main09135-50040iGRS190,UZS190200501-200909

main09135-50060iGRS19#,URS190200912-201112

main99915-10700iGRS19#,URS190200909-200911

09141SPANNER

main09141-50050iGRS19#,URS190,UZS190200501-201107

8 X 10

main09141-50060iGRS190,UZS190200501-201107

12 X 14

main09141-50070iGRS19#,URS190201107-201112

8 X 10

main09141-60020iGRS19#,URS190201107-201112

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iGRS190,UZS190200501-200709

TOOL (DEALERSHIP OPTION)-WRENCH

sub09150-53010

main09150-50010iGRS19#,URS190,UZS190200709-200908

sub09150-53010

main09150-53010iGRS19#,URS190200909-201112

sub09150-76020

51960HOOK ASSY, FRONT

main51961-30020iGRS190,UZS190200501-200709

main51961-30020iGRS190,URS190,UZS190200709-200712

ORANGE PAINT

main51961-53010iGRS19#,URS190,UZS190200712

BLUE OR GREEN PAINT

51960AHOOK ASSY, REAR

main51961-30020iGRS190,UZS190200501-200709

main51961-30020iGRS190,URS190,UZS190200709-200712

ORANGE PAINT

main51961-53010iGRS19#,URS190,UZS190200712

BLUE OR GREEN PAINT

8 parts on this diagram · 1 diagram in section
