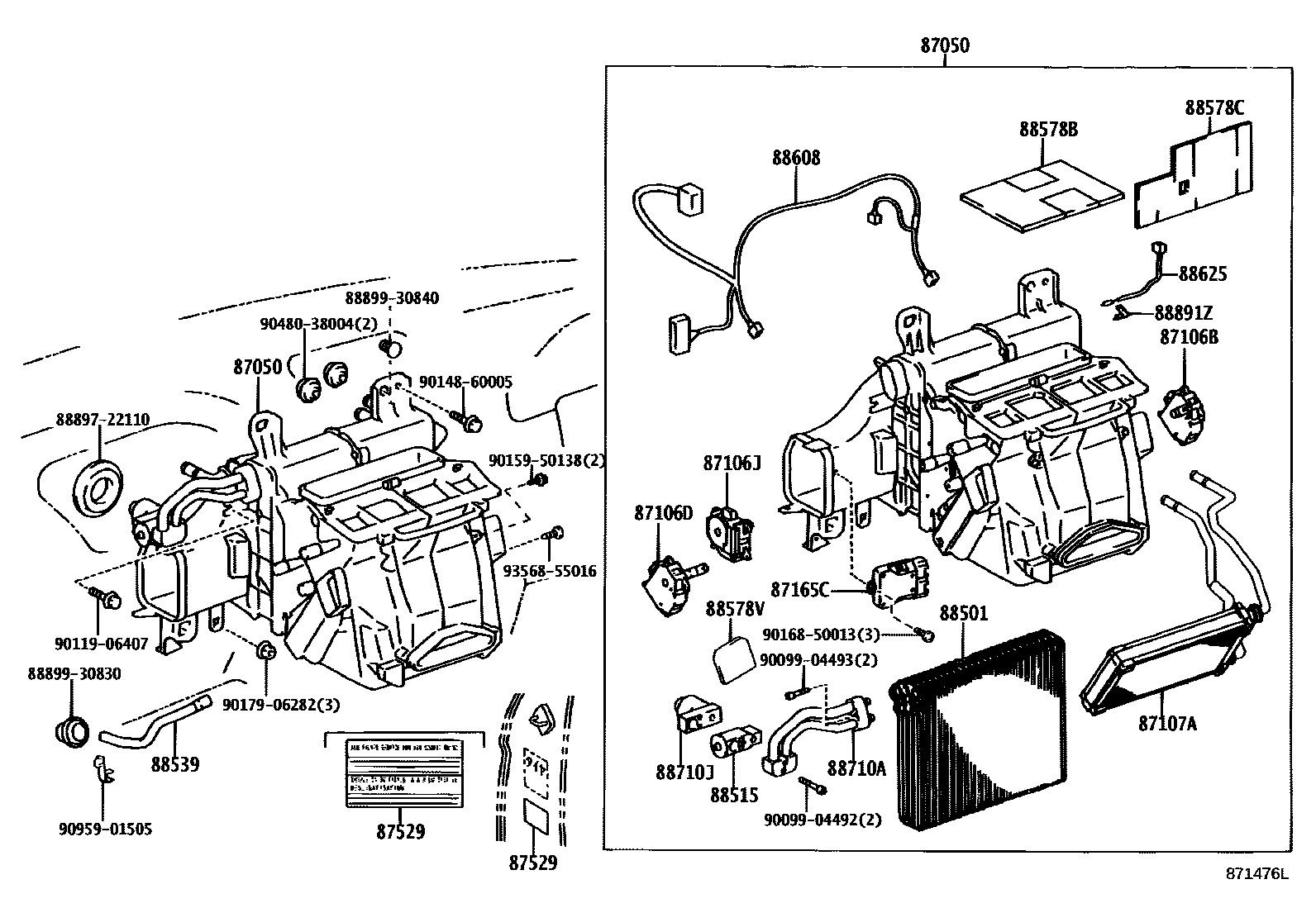

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1O RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30010iJZS160,UZS161..RHD199708

main87050-30020iJZS160,UZS161..LHD..EUR199708

main87050-30040iJZS160..GCC199708

87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

main87106-30340iJZS160,UZS161199708-200308

main87106-30341iJZS160,UZS161200308

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-30350iJZS160,UZS161199708-200308

main87106-30351iJZS160,UZS161200308

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30360iJZS160..RHD199708-199709

main87106-30361iJZS160,UZS161..RHD199709-200501

main87106-30370iJZS160..LHD199708-199711

main87106-30371iJZS160,UZS161..LHD199711-200501

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30500iJZS160199708-199903

sub87107-30520

sub87107-51010

main87107-30510iJZS160,UZS161..RHD199903

main87107-30530iJZS160,UZS161..LHD199903

87165CCONTROL, BLOWER MOTOR

main87165-22040iJZS160,UZS161199708-200103

main87165-22050iJZS160,UZS161200103-200501

87529PLATE, AIR FILTER CAUTION

main87529-50010iJZS160,UZS161199708

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A020iUZS161..RHD200007-200501

main88501-3A050iJZS160..RHD200003-200007

88515VALVE, COOLER EXPANSION

main88515-22260iJZS160,UZS161..ARL,EUR200312-200501

main88515-28160iJZS160..GCC200312-200501

main88515-30690iJZS160,UZS161..ARL,EUR199708-200311

main88515-30700iJZS160..GCC199708-199812

main88515-48040iJZS160..GCC199812-200311

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30810iJZS160,UZS161..RHD199708

main88539-30820iJZS160,UZS161..LHD199708

88578BPACKING, COOLING UNIT, NO.1

main88578-30760iJZS160,UZS161199708

88578CPACKING, COOLING UNIT, NO.2

main88578-30770iJZS160,UZS161199708

88578VPACKING, COOLING UNIT, NO.3

main88578-30790iJZS160,UZS161199708

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-3A020iJZS160199708-199711

main88608-3A021iJZS160,UZS161199711-200210

main88608-3A022iJZS160,UZS161200210-200501

88625THERMISTOR, COOLER, NO.1

main88625-3A120iJZS160,UZS161199708-200210

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A140iJZS160,UZS161..RHD199708

main88710-3A150iJZS160,UZS161..LHD199708

88710JTUBE, AIR CONDITIONER CONNECTOR

main88899-30890iJZS160199708-200007

88891ZBRACKET, COOLER THERMISTOR

main88891-20240iJZS160..RHD199708-200007

8889722110VALVE, COOLER MAGNET

main88897-22110

8889930830COVER, EVAPORATOR

main88899-30830

8889930840COVER, EVAPORATOR

main88899-30840

9009904492

main90099-04492

9009904493

main90099-04493

9011906407

main90119-06407

9014860005

main90148-60005

9015950138

main90159-50138

9016850013

main90168-50013

9017906282

main90179-06282

9048038004

main90480-38004

9095901505

main90959-01505

9356855016

main93568-55016

31 parts on this diagram · 5 diagrams in section
