TELEPHONE & MAYDAY

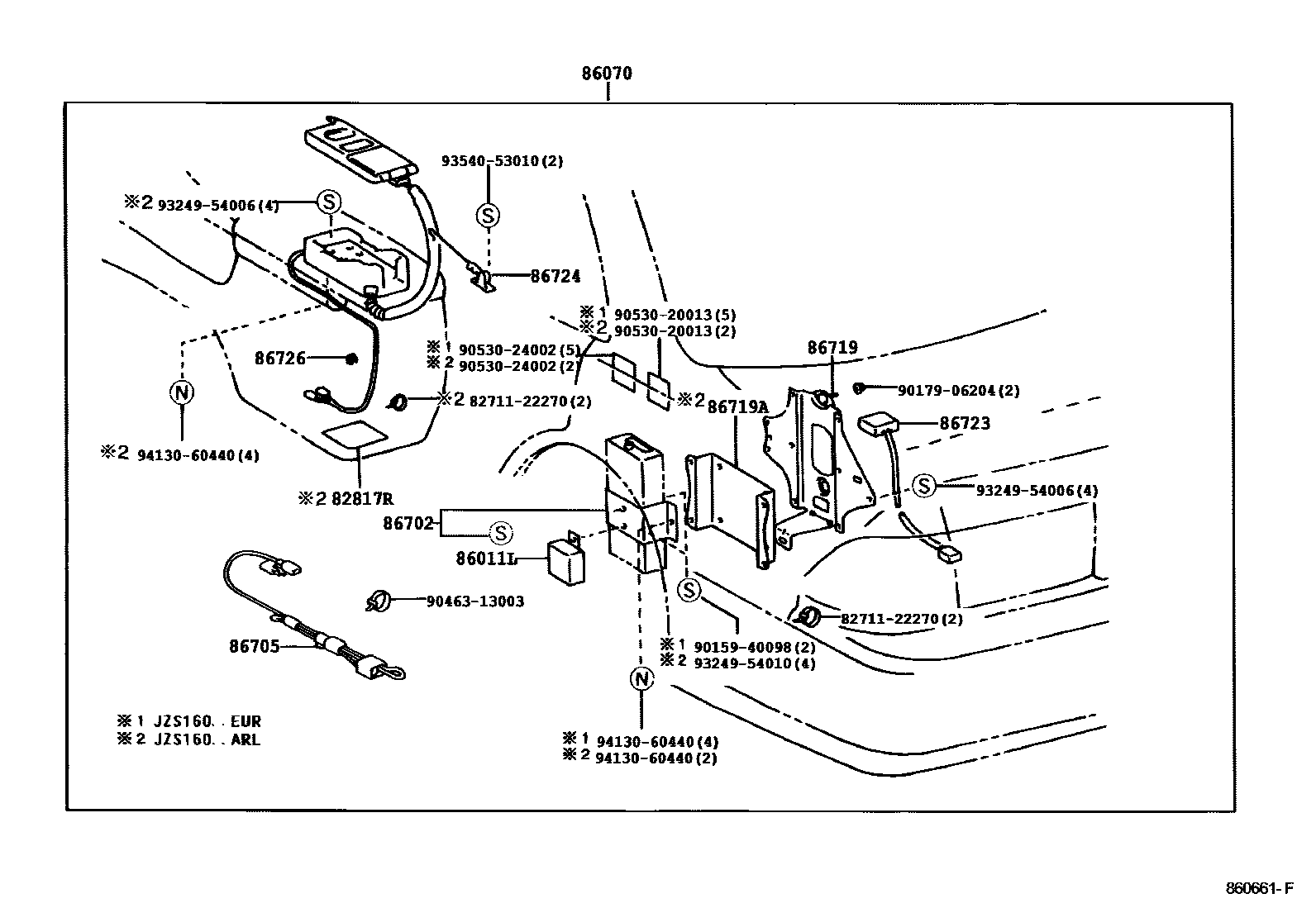

0001 1 0002 1FITTING PARTS 0003 1TELEPHONE ANTENNA

82817RPROTECTOR, WIRING HARNESS, NO.16

main82817-87013iJZS160..ARL199708-200007

86011LFILTER, NOISE

main90980-05281iJZS160..EUR199708-200007

86070MOBILEPHONE & ACCESSORY ASSY

main86075-30050iJZS160..ARL199708-199901

main86075-30051iJZS160..ARL199901-200007

main86075-30060iJZS160..EUR199708-199802

sub86075-30061

main86075-30061iJZS160..EUR,GCC199802-199809

sub86075-30062

main86075-30062iJZS160..EUR,GCC199809-199901

main86075-30063iJZS160..EUR,GCC199901-200007

main86075-30070iJZS160..EUR,GCC199908-200007

PORTABLE TELEPHONE

main86075-30071iJZS160,UZS161200007-200208

sub86075-30072

main86075-30072iJZS160,UZS161200208

86702BRACKET SET, TELEPHONE

main86702-30050iJZS160..GCC199808-199809

main86702-30050iJZS160..EUR,GCC199809-199901

TOKAIRIKA

main86702-30060iJZS160..EUR,GCC199809

KOJIMA

main86702-30060iUZS161;JZS160..ARL200007

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-30060iJZS160..EUR199802-200007

86719BRACKET, TELEPHONE

main86719-30080iJZS160..ARL,EUR199708-200007

main86719-30150iJZS160..EUR,GCC199908

PORTABLE TELEPHONE

main86719-30150iUZS161;JZS160..ARL200007

86719ABRACKET, TELEPHONE NO.1

main86719-30090iJZS160..ARL199708-200007

main86719-30170iJZS160..EUR,GCC199908-200007

86723WIRE, MOBILEPHONE

main86723-50100iJZS160..ARL,EUR199708-200007

86724GUIDE, CURL CORD

main86724-33010iJZS160..ARL,EUR199708-200007

86726COVER, MOBILEPHONE

main86726-30190iJZS160..EUR,GCC199708-200007

main86726-40010iJZS160..EUR199708-199802

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9015940098

main90159-40098

9017906204

main90179-06204

9046313003

main90463-13003

9053020013

main90530-20013

9053024002

main90530-24002

9324954006

main93249-54006

9324954010

main93249-54010

9354053010

main93540-53010

9413060440

main94130-60440

20 parts on this diagram · 3 diagrams in section
