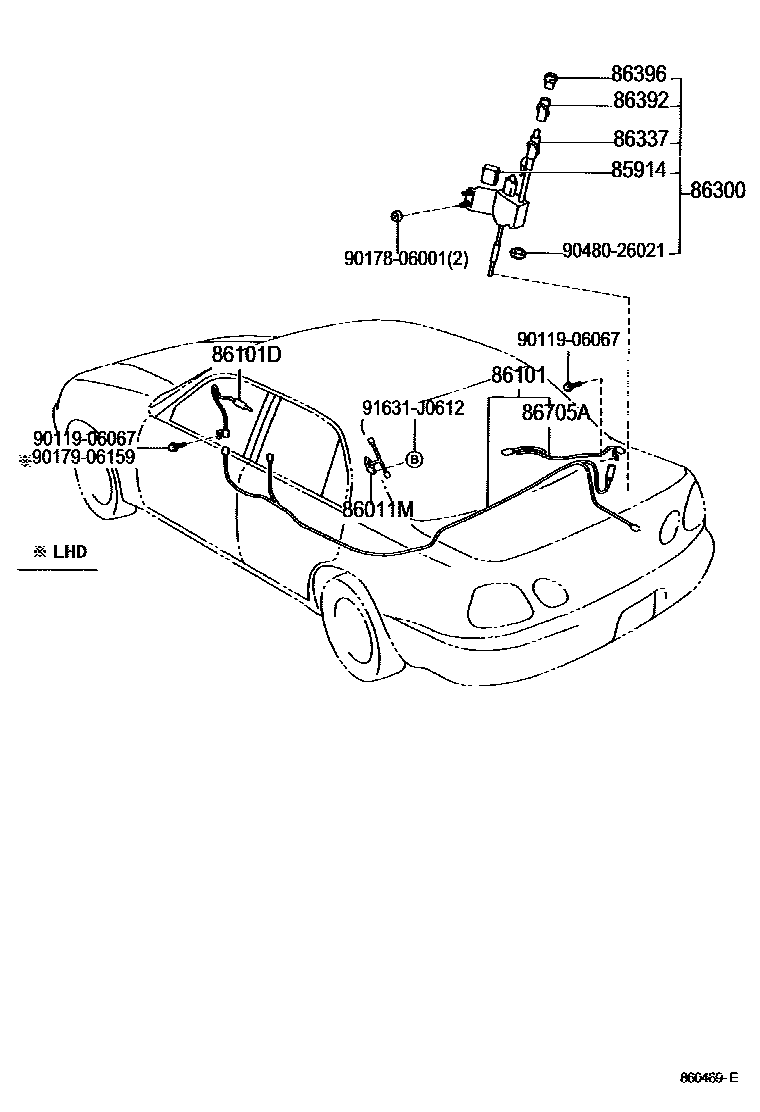

ANTENNA
85914RELAY, MOTOR ANTENNA CONTROL
86011MFILTER, NOISE
86101CORD SUB-ASSY, ANTENNA
sub86101-30672
"WIDE MULTI AV STATION"
"WIDE MULTI AV STATION"
"WIDE MULTI AV STATION"
W(GPS NAVIGATION SYSTEM)
W(GPS NAVIGATION SYSTEM)
"WIDE MULTI AV STATION"
"WIDE MULTI AV STATION"
"WIDE MULTI AV STATION"
W(GPS NAVIGATION SYSTEM)
W(GPS NAVIGATION SYSTEM)
86101DCORD SUB-ASSY, ANTENNA, NO.3
W/O(NAVIGATION SYSTEM)
86300ANTENNA ASSY, W/HOLDER
86337ROD & PIPE, SEALED W/CABLE
86392ORNAMENT, ANTENNA
86396NUT, ANTENNA
86705ACORD SUB-ASSY, TELEPHONE ANTENNA
9011906067
main90119-06067
9017806001
main90178-06001
9017906159
main90179-06159
9048026021
main90480-26021
91631J0612
main91631-J0612
14 parts on this diagram · 2 diagrams in section
