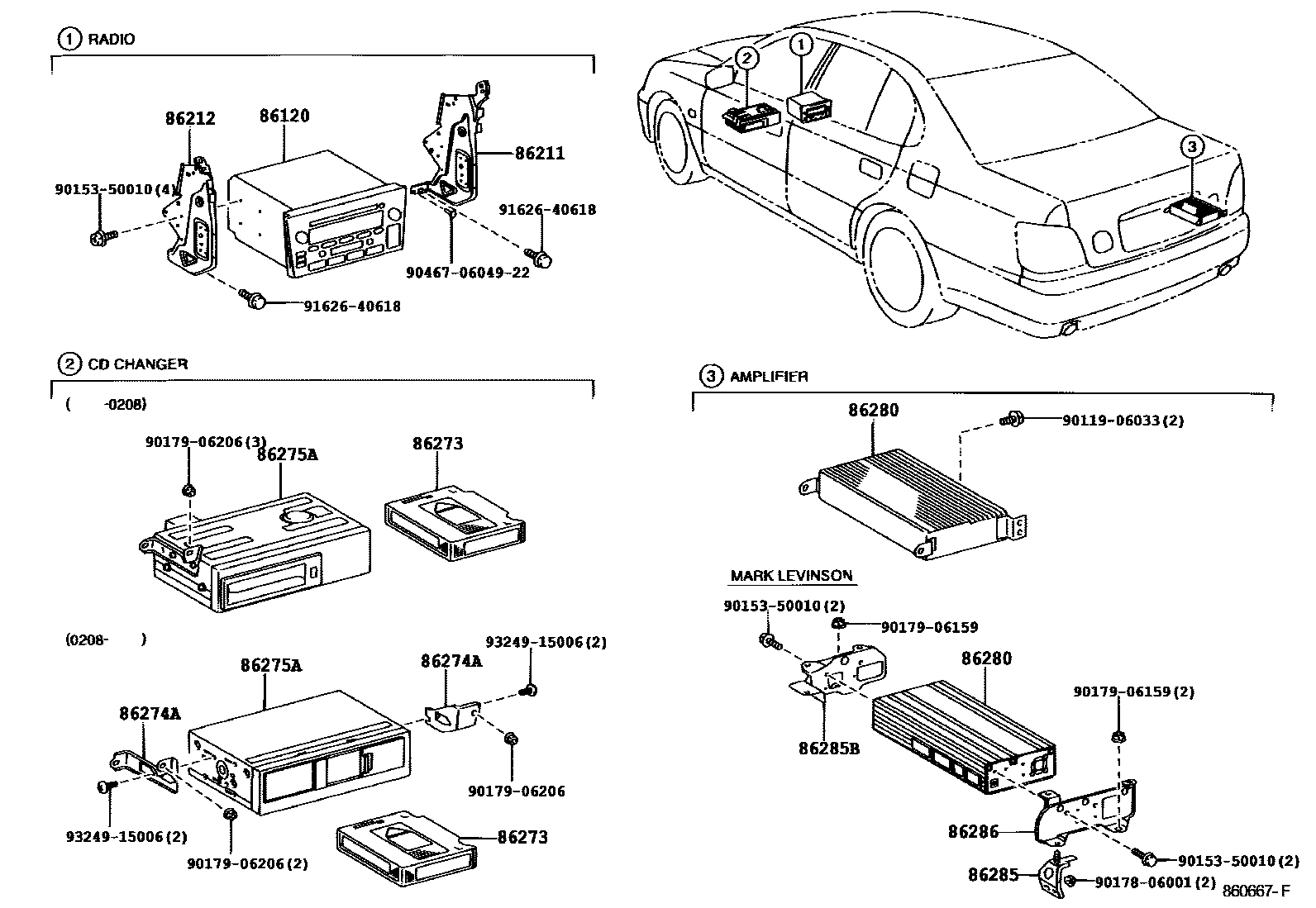

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
PIONEER,ID=P3706,TYPE A:REFER TO ILLUSTRATION
sub86120-3A531
PIONEER,ID=P3714,TYPE A:REFER TO ILLUSTRATION
PIONEER,ID=P3722,TYPE H:REFER TO ILLUSTRATION
PIONEER,ID=P3707,TYPE B:REFER TO ILLUSTRATION
sub86120-3A541
PIONEER,ID=P3715,TYPE B:REFER TO ILLUSTRATION
PIONEER,ID=P3724,TYPE I:REFER TO ILLUSTRATION
PIONEER,ID=P7511,TYPE C:REFER TO ILLUSTRATION
PIONEER,ID=P2722,TYPE D:REFER TO ILLUSTRATION
PIONEER,ID=P7512,TYPE E:REFER TO ILLUSTRATION
PIONEER,ID=P3712,TYPE F:REFER TO ILLUSTRATION
sub86120-3A591
PIONEER,ID=P3716,TYPE F:REFER TO ILLUSTRATION
PIONEER,ID=P3723,TYPE J:REFER TO ILLUSTRATION
PIONEER,ID=P3731,TYPE J:REFER TO ILLUSTRATION
PIONEER,ID=P3713,TYPE G:REFER TO ILLUSTRATION
sub86120-3A601
PIONEER,ID=P3717,TYPE G:REFER TO ILLUSTRATION
PIONEER,ID=P3725,TYPE K:REFER TO ILLUSTRATION
PIONEER,ID=P3732,TYPE K:REFER TO ILLUSTRATION
PIONEER,ID=P3739,TYPE L:REFER TO ILLUSTRATION
PIONEER,ID=P3740,TYPE M:REFER TO ILLUSTRATION
PIONEER,ID=P3737,TYPE N:REFER TO ILLUSTRATION
PIONEER,ID=P3738,TYPE O:REFER TO ILLUSTRATION
86273MAGAZINE, DISC PLAYER
86274ABRACKET, DISC PLAYER
LH
RH
LH
RH
86275ACHANGER, DISC PLAYER
86285BRACKET, AMPLIFIER, NO.1
86285BBRACKET, AMPLIFIER, NO.1
86286BRACKET, AMPLIFIER, NO.2
9011906033
main90119-06033
9015350010
main90153-50010
9017806001
main90178-06001
9017906159
main90179-06159
9017906206
main90179-06206
904670604922
main90467-0604922
9162640618
main91626-40618
9324915006
main93249-15006
18 parts on this diagram · 4 diagrams in section
