WINDSHIELD WIPER

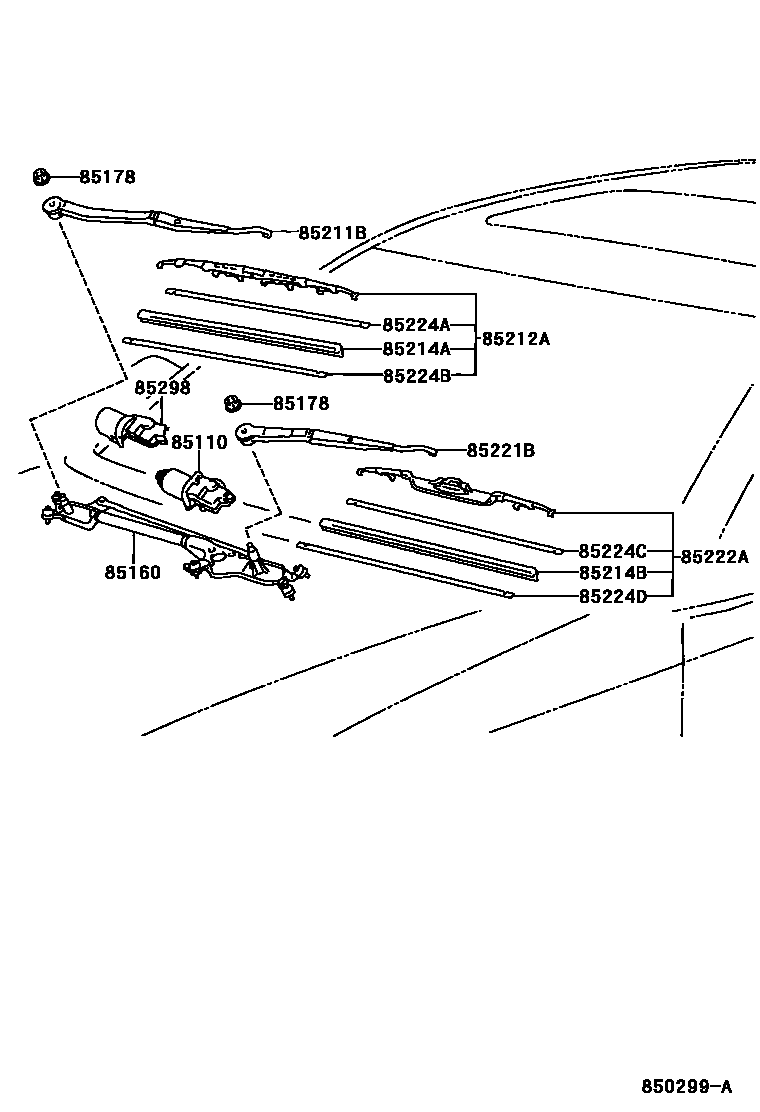

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-30410i199708
main85110-30420i199708
85160LINK ASSY, WINDSHIELD WIPER
main85150-30500i199708
main85150-30510i199708
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-10005×2i199708
85211BARM, FRONT WIPER, RH
main85211-30520i199708
main85211-30530i199708
85212ABLADE, FR WIPER, RH
main85212-30340i199708-200207
main85212-30350i199708-200311
main85212-30380i200311
main85212-53060i200207
sub85212-53061
85214ARUBBER, WIPER, RH
main85214-24050i200311
sub85214-24051
main85214-30310i199708-200311
main85214-30330i199708-200311
main85214-50100i200311
85214BRUBBER, WIPER, LH
main85214-24050i200311
sub85214-24051
main85214-30320i199708-200311
main85214-30340i199708-200311
main85214-50100i200311
85221BARM, FRONT WIPER, LH
main85221-30410i199708
main85221-30420i199708
main85221-30430i199708
85222ABLADE, FR WIPER, LH
main85222-24100i200311-200501
sub85222-24101
main85222-30520i199708-200311
main85222-30560i200311-200501
main85222-43021i199708-200311
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-33070i199708
main85224-44010i199708
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-33070i199708
main85224-44010i199708
85224CPLATE, WIPER RUBBER BACKING, NO.3
main85224-30470i199708
main85224-44040i199708
85224DPLATE, WIPER RUBBER BACKING, NO.4
main85224-30470i199708
main85224-44040i199708
85298COVER, WIPER MOTOR
main85111-30280i199708
main85111-30300i199708

14 parts on this diagram · 1 diagram in section
