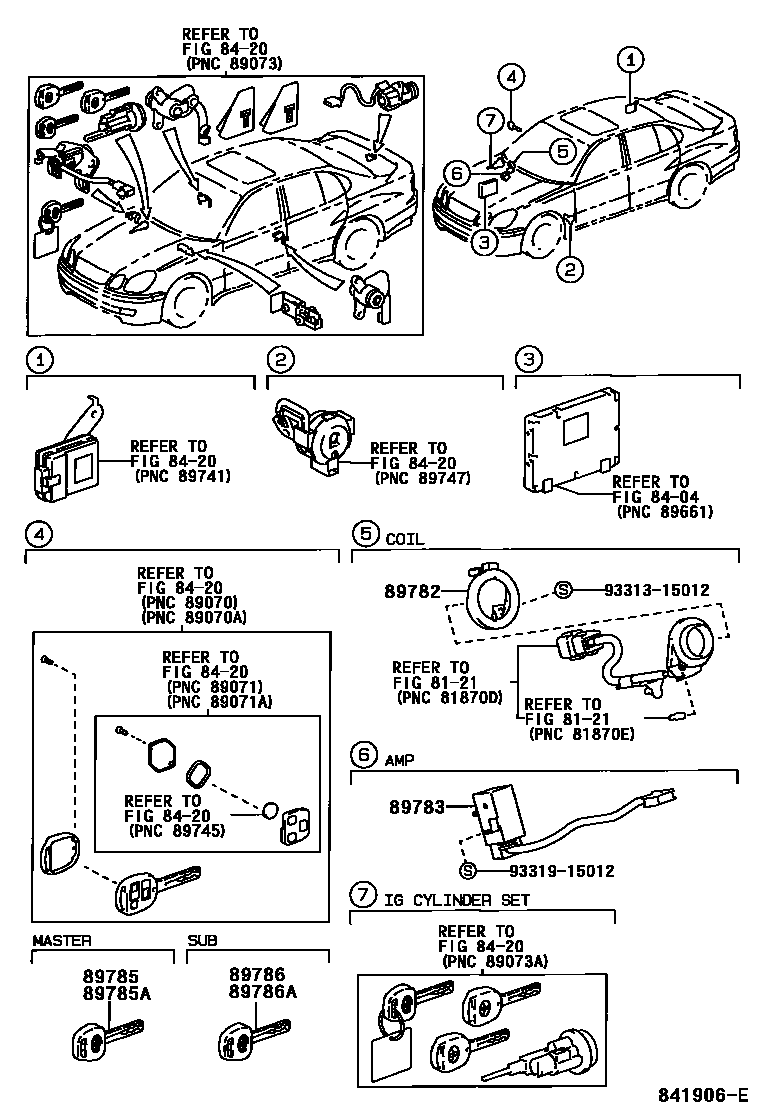

ANTI-THEFT DEVICE

0001 1IMMOBILIZER 0003 1IMMOBILIZER 0004 1IMMOBILIZER 0006 1IMMOBILIZER 0007 1THEFT WARNING SYSTEM

8121

8404

8420

89782COIL, TRANSPONDER KEY

main89782-30010iJZS160,UZS161199708

89783AMPLIFIER, TRANSPONDER KEY

main89783-30020iJZS160..EUR,GCC199708-200204

sub89783-30021

main89783-30021iJZS160,UZS161200204

sub89783-30022

main89783-30030iJZS160..ARL199708-200007

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-50030iJZS160199708-200007

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-50040iJZS160199708-200007

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-50030iJZS160199708-200007

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50040iJZS160199708-200007

9331315012

main93313-15012

9331915012

main93319-15012

11 parts on this diagram · 5 diagrams in section
