WIRELESS DOOR LOCK

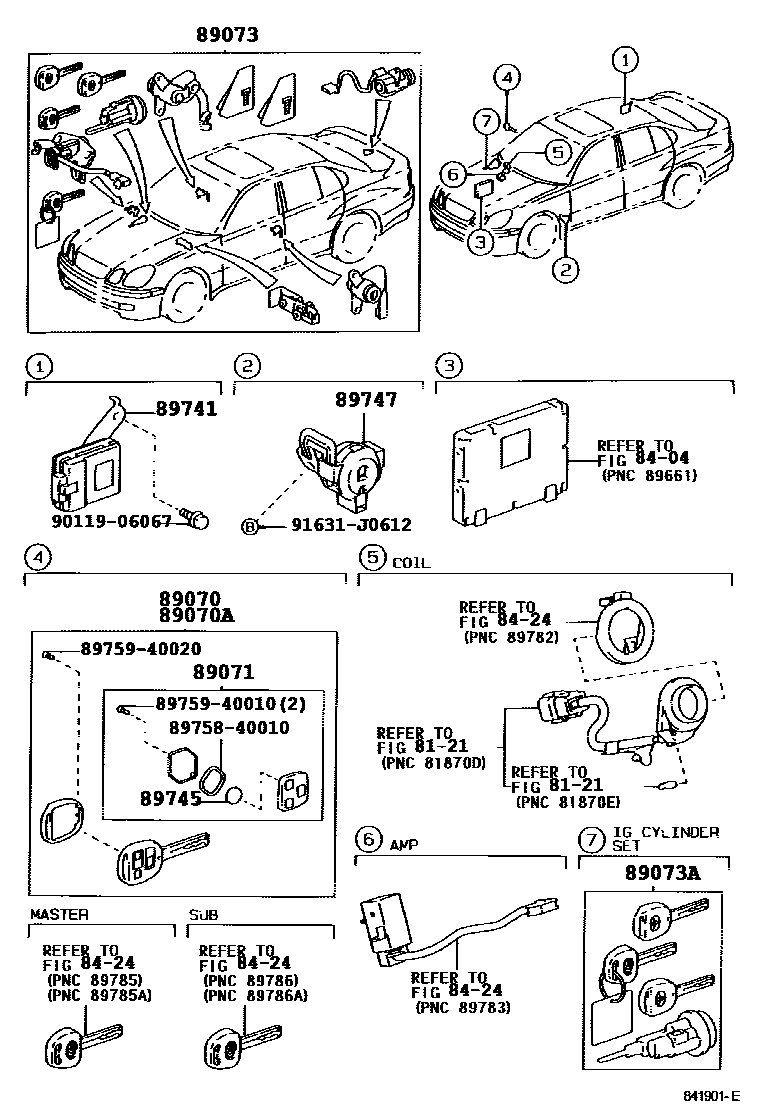

Parts diagram

8121INTERIOR LAMP

→ Go to FIG 81-21

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-30580i200111

KOREA SPEC

main89070-30780i200406

CHINA SPEC

main89070-50190i199708-200012

main89070-50191i200012

main89070-50200i199708-200012

*FRG

main89070-50210i199708-200012

FRANCE SPEC

main89070-50220i199708-200012

DENMARK OR ITALY SPEC

main89070-50230i199708-200012

main89070-50240i199708

main89070-50250i199708

main89070-50260i199708

SINGAPORE SPEC

main89070-50270i199708

HONG KONG SPEC

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-30600i200111

KOREA SPEC

main89070-50310i199708-200012

main89070-50311i200012

main89070-50320i199708-200012

*FRG

main89070-50330i199708-200012

FRANCE SPEC

main89070-50340i199708-200012

DENMARK OR ITALY SPEC

main89070-50350i199708-200012

main89070-50360i199708

main89070-50370i199708

main89070-50380i199708

SINGAPORE SPEC

main89070-50390i199708

HONG KONG SPEC

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-30060i200111

KOREA SPEC

main89071-50030i199708-200009

main89071-50031i200009-200012

main89071-50032i200012

main89071-50040i199708-200009

main89071-50041i200009

main89071-50050i199708-200009

SINGAPORE SPEC

main89071-50051i200009

SINGAPORE SPEC

main89071-50060i199708-200009

HONG KONG OR SINGAPORE SPEC

main89071-50061i200009

HONG KONG SPEC

main89071-50090i199708-200009

main89071-50091i200009

main89071-53090i200406

CHINA SPEC

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-30120i199708-200007

main89073-30121i200007-200012

main89073-30122i200012

main89073-30130i199708-200007

main89073-30131i200007-200012

main89073-30140i199708-200007

DENMARK OR ITALY SPEC

main89073-30141i200007-200012

DENMARK OR ITALY SPEC

main89073-30150i199708-200007

FRANCE SPEC

main89073-30151i200007-200012

FRANCE SPEC

main89073-30160i199708-200007

*FRG

main89073-30161i200007-200012

*FRG

main89073-30180i199708

HONG KONG SPEC

main89073-30190i199708

SINGAPORE SPEC

main89073-30200i199708

main89073-30210i199708

main89073-30400i200111

KOREA SPEC

main89073-30410i200406

CHINA SPEC

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main89073-30010i199708-200007

main89073-30011i200007-200012

main89073-30012i200012-200501

main89073-30020i199708-200007

main89073-30021i200007-200012

main89073-30030i199708-200007

DENMARK OR ITALY SPEC

main89073-30031i200007-200012

DENMARK OR ITALY SPEC

main89073-30040i199708-200007

FRANCE SPEC

main89073-30041i200007-200012

FRANCE SPEC

main89073-30050i199708-200007

*FRG

main89073-30051i200007-200012

*FRG

main89073-30070i199708-200501

HONG KONG SPEC

main89073-30080i199708-200501

SINGAPORE SPEC

main89073-30090i199708-200501

main89073-30100i199708-200501

main89073-30390i200111-200501

KOREA SPEC

89741RECEIVER, DOOR CONTROL

main89741-30190i199708-200012

main89741-30191i200012

main89741-30230i199708-199808

main89741-30231i199808

main89741-30240i199708-199808

HONG KONG SPEC

main89741-30241i199808

HONG KONG SPEC

main89741-30250i199708

SINGAPORE SPEC

main89741-30250i200111

KOREA SPEC

main89741-30390i200406

CHINA SPEC

89745BATTERY, TRANSMITTER

main89745-40010i199708-200012

89747BUZZER, WIRELESS DOOR LOCK

main89747-30020i199708

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020

9011906067

main90119-06067

91631J0612

main91631-J0612

16 parts on this diagram · 4 diagrams in section
