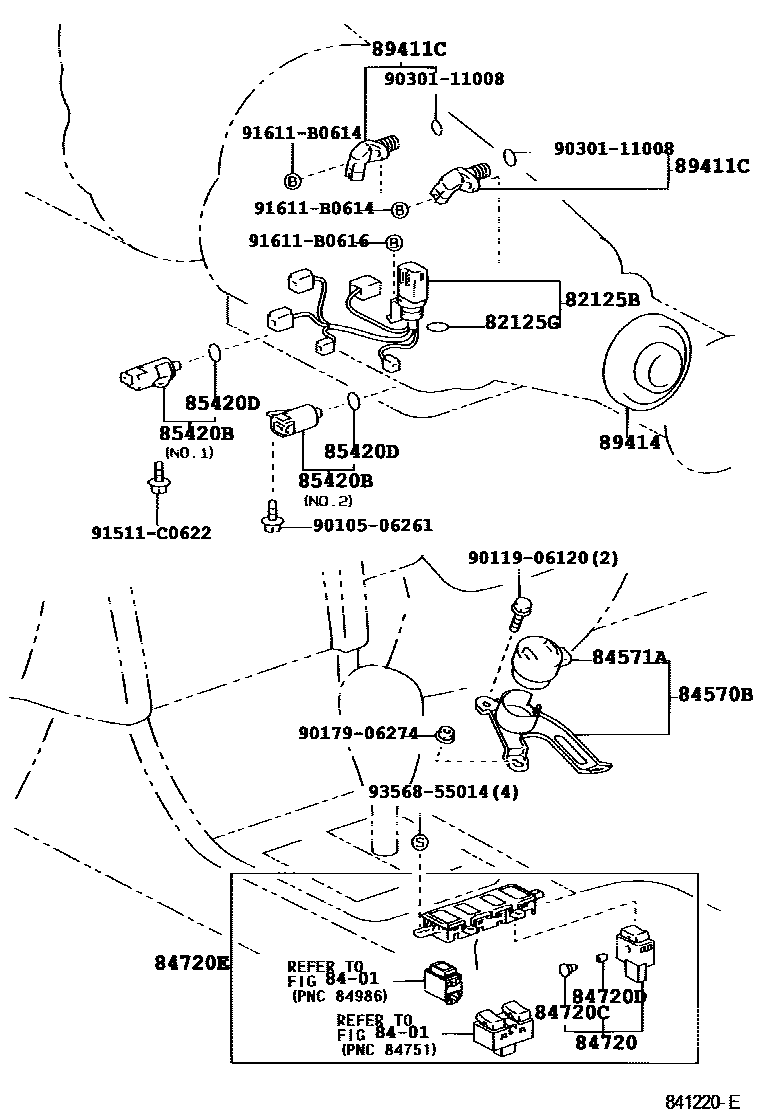

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

82125BWIRE, TRANSMISSION

main82125-30460iJZS160199708-200501

main82125-50040iUZS161200007-200501

82125GRING, O(FOR TRANSMISSION WIRE)

main96721-24018iJZS160,UZS161199708

8401

84570BSWITCH ASSY, KICK DOWN

main84570-30070iJZS160,UZS161..RHD..EUR199708

main84570-30080iJZS160,UZS161..LHD..EUR199708

84571ASWITCH, KICK DOWN

main84571-50030iJZS160,UZS161..EUR199708

84720SWITCH ASSY, PATTERN SELECT

main84720-22190iJZS160..GCC199708

main84720-30330iJZS160,UZS161..ARL,EUR199708

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10710iJZS160,UZS161199708

14V 0.56W

84720DCAP, PATTERN SELECT SWITCH

main84998-10670iJZS160,UZS161199708

84720ESWITCH ASSY, PATTERN SELECT

main84720-30280iUZS161..LHD200007

main84720-30280iJZS160..LHD..EUR199708

W(SEAT HEATER)

main84720-30290iJZS160..LHD..EUR199708

main84720-30300iJZS160..RHD199708

W(SEAT HEATER)

main84720-30300iUZS161..RHD200007

main84720-30310iJZS160..RHD199708

main84720-30320iJZS160..GCC199708

85420BSOLENOID ASSY, TRANSMISSION

main35250-50010iJZS160200108-200501

NO.1,DENSO

main35250-50030iJZS160200108-200501

NO.2,DENSO

main85420-30240iJZS160199708-200007

sub35250-50010

main85420-30240iJZS160200007-200108

NO.1,DENSO

sub35250-50010

main85420-30260iJZS160199708-200108

NO.2,DENSO

sub35250-50030

main85420-30270iJZS160199708-200108

NO.2,AISIN

sub35250-50030

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iJZS160199708-200501

89411CSENSOR, SPEED

main89411-50010iJZS160,UZS161199708-200501

89414ROTOR, SENSOR

main89414-30080iJZS160,UZS161199708-200501

9010506261

main90105-06261

9011906120

main90119-06120

9017906274

main90179-06274

9030111008

main90301-11008

91511C0622

main91511-C0622

91611B0614

main91611-B0614

91611B0616

main91611-B0616

9356855014

main93568-55014

21 parts on this diagram · 4 diagrams in section
