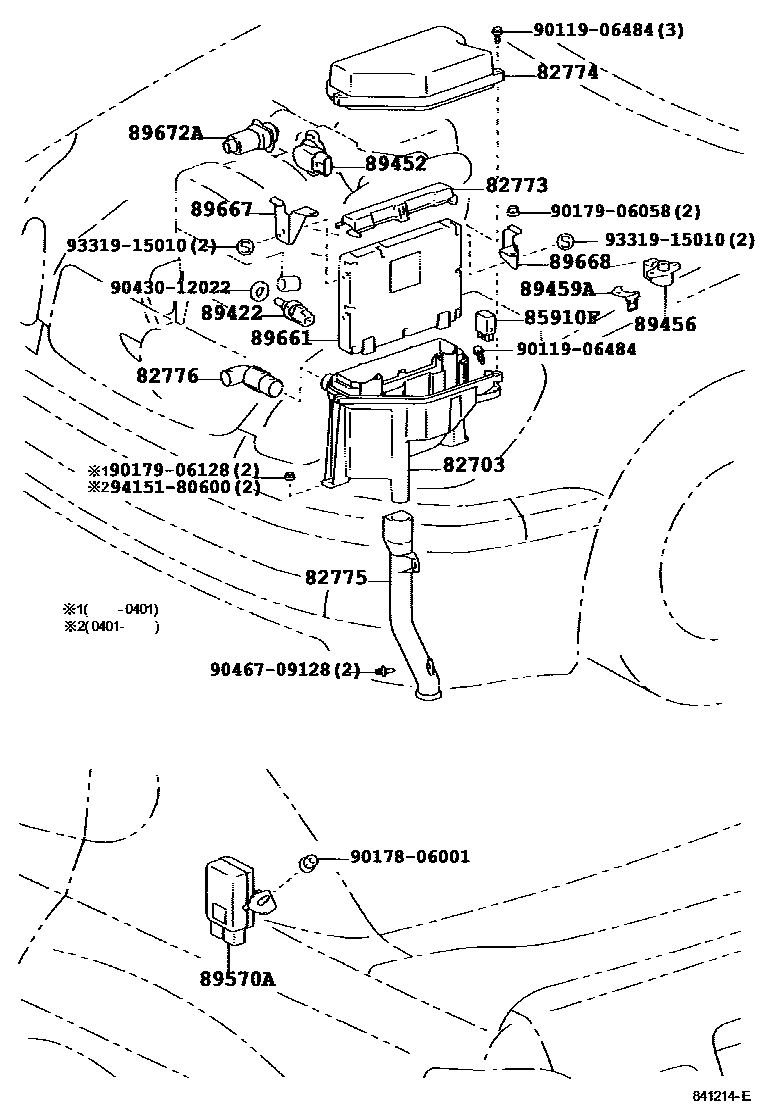

ELECTRONIC FUEL INJECTION SYSTEM
82703BOX SUB-ASSY, ENGINE ROOM ECU
82773HOOD, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
82776DUCT, ENGINE ROOM ECU OUTLET
85910FRELAY, COMPUTER (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89456RESISTOR, VARIABLE
89459ABRACKET, VARIABLE RESISTOR
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
89661COMPUTER, ENGINE CONTROL
PART NUMBER LABEL=89666-30140
sub89666-30151
PART NUMBER LABEL=89666-30190
HONG KONG SPEC
KOREA SPEC
CHINA SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89672AMOTOR, THROTTLE CONTROL
9011906484
main90119-06484
9017806001
main90178-06001
9017906058
main90179-06058
9017906128
main90179-06128
9043012022
main90430-12022
9046709128
main90467-09128
9331915010
main93319-15010
9415180600
main94151-80600
23 parts on this diagram · 3 diagrams in section
