METER

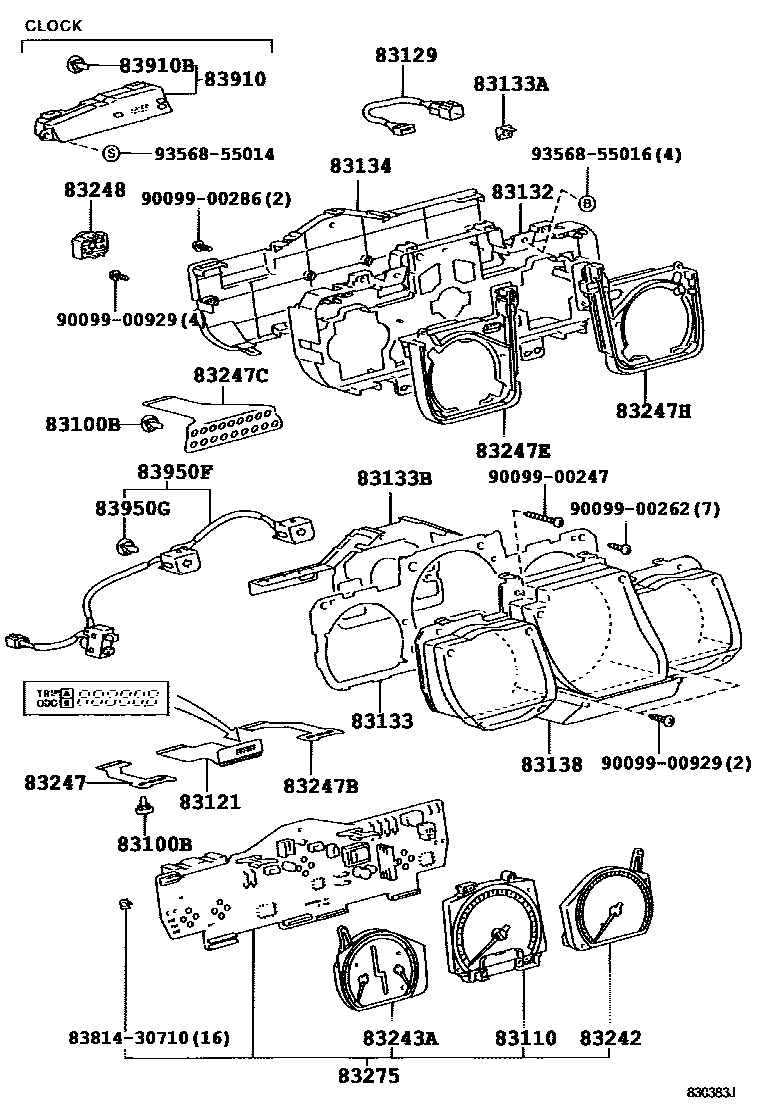

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83119-24070×21i199708

12V 1.4W W(SOCKET)

83110SPEEDOMETER ASSY

main83220-30130i199708-200007

main83220-30140i199708-199808

main83220-30141i199808-200007

main83220-30170i199712-199808

SOUTH AFRICA SPEC

main83220-30171i199808-200007

SOUTH AFRICA SPEC

main83220-30350i200007-200501

SOUTH AFRICA SPEC

main83220-30380i200007-200501

main83220-30390i200007-200501

main83220-30400i200007-200501

main83220-30410i200007-200501

83121COUNTER, TOTAL

main83222-30390i200007

main83222-30710i200007

83129WIRE, METER

main83875-30690i199708

main83875-30710i199708

83132CASE, COMBINATION METER

main83841-30700i199708

main83841-30710i199708

83133PLATE, COMBINATION METER, NO.1

main83811-30390i199708-200007

main83811-3A130i200007

main83811-3A140i200007

83133APLATE, COMBINATION METER, NO.2

main83812-30710i199708

83133BPLATE, COMBINATION METER, NO.3

main83813-30380i199708

main83813-30690i199708

83134COVER, COMBINATION METER, NO.1

main83821-30380i199708

main83821-30690i199708

main83821-30700i199708

main83821-30710i199708

83138GLASS, SPEEDOMETER

main83852-30370i199708

main83852-30380i199708

main83852-30680i199708-200208

main83852-30690i199708

main83852-3A290i200208

83242TACHOMETER ASSY, ENGINE

main83881-30360i199708-200007

main83881-30400i199708-200501

main83881-30750i200007-200501

main83881-3A200i200007-200501

main83881-3A250i200007-200501

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-30370i199708-200501

main83882-30390i199708-200007

main83882-30680i199708-200007

main83882-3A130i200007-200501

main83882-3A140i200007-200501

main83882-3A170i200007-200501

main83882-3A200i200007-200501

SOUTH AFRICA SPEC

83247PLATE, METER CIRCUIT

main83861-30700i199708

main83861-30710i199708

83247BPLATE, METER CIRCUIT, NO.2

main83862-30700i199708

main83862-30710i199708

83247CPLATE, MATER CIRCUIT, NO.3

main83863-30700i199708-200007

main83863-30710i199708-200007

main83863-3A130i200007

main83863-3A190i200007

83247EPLATE, MATER CIRCUIT, NO.4

main83864-30710i199708

83247HPLATE, METER CIRCUIT, NO.5

main83865-30710i199708

83248CHIME, SPEED WARNING

main83248-20010i199708

83275PLATE,COMPUTER METER CIRCUIT NO.1

main83275-30370i199708-199808

main83275-30371i199808-200007

main83275-30380i199708-199808

main83275-30381i199808-200007

main83275-30680i199708-199808

main83275-30681i199808-200007

main83275-30690i199708-199808

main83275-30691i199808-200007

main83275-30790i199712-199808

SOUTH AFRICA SPEC

main83275-30791i199808-200007

SOUTH AFRICA SPEC

main83801-3A170i200208-200411

main83801-3A180i200007-200501

main83801-3A210i200007-200501

main83801-3A220i200007-200501

main83801-3A230i200007-200501

SOUTH AFRICA SPEC

main83801-3A240i200007-200501

main83801-3A250i200007-200501

main83801-3A290i200412-200501

83910CLOCK ASSY

main83910-30570i199708

main83910-30580i199708

83910BBULB, CLOCK INDICATOR

main90010-07009i199708

14V 1.4W

83950FLAMP ASSY, TELLTALE

main83950-30090i200007

main83950-30100i199708-200007

main83950-30110i199708-200007

83950GBULB, TELLTALE LAMP

main84999-50050×2i199708-200501

14V 1.4W

8381430710

main83814-30710

9009900247

main90099-00247

9009900262

main90099-00262

9009900286

main90099-00286

9009900929

main90099-00929

9356855014

main93568-55014

9356855016

main93568-55016

30 parts on this diagram · 3 diagrams in section
