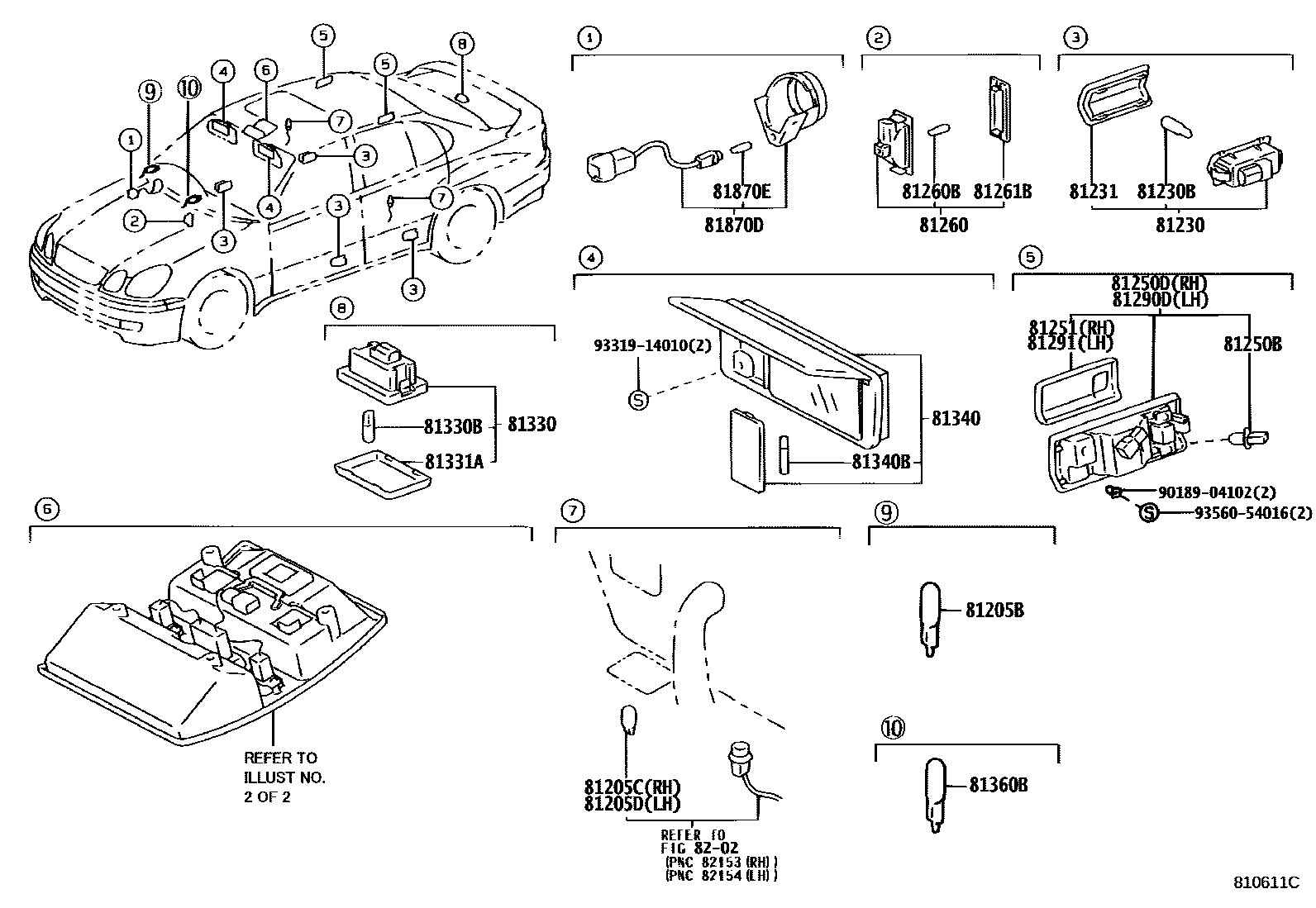

INTERIOR LAMP
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81205CBULB, ASH RECEPTACLE LAMP, REAR RH
81205DBULB, ASH RECEPTACLE LAMP, REAR LH
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81250BBULB, ROOM LAMP, NO.2
12V 5W
81250DLAMP ASSY, REAR ROOM, RH
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#,2#
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81261LENS AND COVER, MAP LAMP
W(MOON ROOF)
81261BLENS,GLOVE BOX LAMP
81290DLAMP ASSY, REAR ROOM, LH
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#,2#
81291LENS, ROOM LAMP, NO.3(FOR REAR)
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
IVORY,TRIM0#,LH
MD.CHARCOAL,TRIM1#,2#,LH
IVORY,TRIM0#,RH
MD.CHARCOAL,TRIM1#,22,23,24,25,26,RH
IVORY,TRIM0#,RH
MD.CHARCOAL,TRIM1#,2#,RH
IVORY,TRIM0#,RH
MD.CHARCOAL,TRIM1#,22,23,24,25,26,RH
81340BBULB (FOR VANITY LAMP)
12V 1.5W
12V 3W
81360BBULB, STEP OR SPOT LAMP
14V 1.4W
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
8202
9018904102
main90189-04102
9331914010
main93319-14010
9356054016
main93560-54016
27 parts on this diagram · 2 diagrams in section
