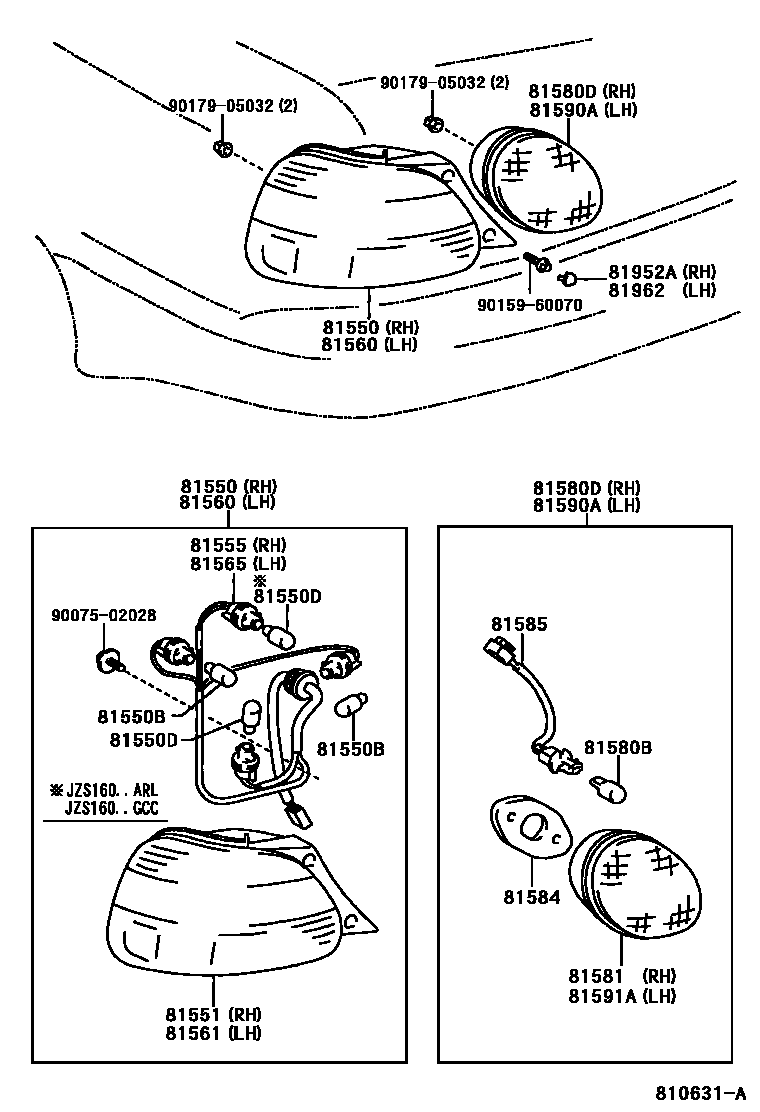

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-30770iJZS160..ARL199708-200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81550-30830iJZS160..ARL,EUR199708-200007

main81550-30860iJZS160..ARL200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81550-30870iJZS160,UZS161..ARL,EUR200007

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059×2iJZS160,UZS161200007

12V 16W,NO.2

main90981-13043×4iJZS160199708-200007

12V 21W

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-13044×2iJZS160..ARL,EUR199708-200007

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-30770iJZS160..ARL199708-200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81551-30830iJZS160..ARL,EUR199708-200007

main81551-30860iJZS160..ARL200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81551-30870iJZS160,UZS161..ARL,EUR200007

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30770iJZS160..ARL199708-200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81555-30830iJZS160..ARL,EUR199708-200007

main81555-30860iJZS160,UZS161..EUR,GCC200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

81560LAMP ASSY, REAR COMBINATION, LH

main81560-30740iJZS160..ARL199708-200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81560-30800iJZS160..ARL,EUR199708-200007

main81560-30830iJZS160..ARL200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81560-30840iJZS160,UZS161..ARL,EUR200007

81561LENS, REAR COMBINATION LAMP, LH

main81561-30740iJZS160..ARL199708-200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81561-30800iJZS160..ARL,EUR199708-200007

main81561-30830iJZS160..ARL200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81561-30840iJZS160,UZS161..ARL,EUR200007

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-30770iJZS160..ARL199708-200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

main81555-30830iJZS160..ARL,EUR199708-200007

main81555-30860iJZS160,UZS161..EUR,GCC200007

HONG KONG OR SINGAPORE OR THAILAND SPEC

81580BBULB (FOR REAR LAMP)

main90981-13044×2iJZS160,UZS161199708-200501

12V 21/5W

81580DLAMP ASSY, REAR, RH

main81580-30120iJZS160..GCC199708

main81580-30130iJZS160,UZS161..ARL,EUR199708

81581LENS, REAR LAMP

main81581-30120iJZS160..GCC199708

main81581-30130iJZS160,UZS161..ARL,EUR199708

81584PACKING, REAR LAMP RH

main81584-30120×2iJZS160,UZS161199708

81585SOCKET & WIRE, REAR LAMP

main81585-30120iJZS160..GCC199708

RH

main81585-30130iJZS160,UZS161..ARL,EUR199708

W(REAR FOG LAMP),RH

main81595-30070iJZS160..GCC199708

LH

main81595-30080iJZS160,UZS161..ARL,EUR199708

W(REAR FOG LAMP),LH

81590ALAMP ASSY, REAR, LH

main81590-30070iJZS160..GCC199708

main81590-30080iJZS160,UZS161..ARL,EUR199708

81591ALENS REAR LAMP

main81591-30070iJZS160..GCC199708

main81591-30080iJZS160,UZS161..ARL,EUR199708

81952ACOVER, REAR LAMP, RH

main81952-50010×2iJZS160,UZS161199708

81962COVER, REAR LAMP, LH

main81952-50010×2iJZS160,UZS161199708

9007502028

main90075-02028

9015960070

main90159-60070

9017905032

main90179-05032

20 parts on this diagram · 2 diagrams in section
