FOG LAMP

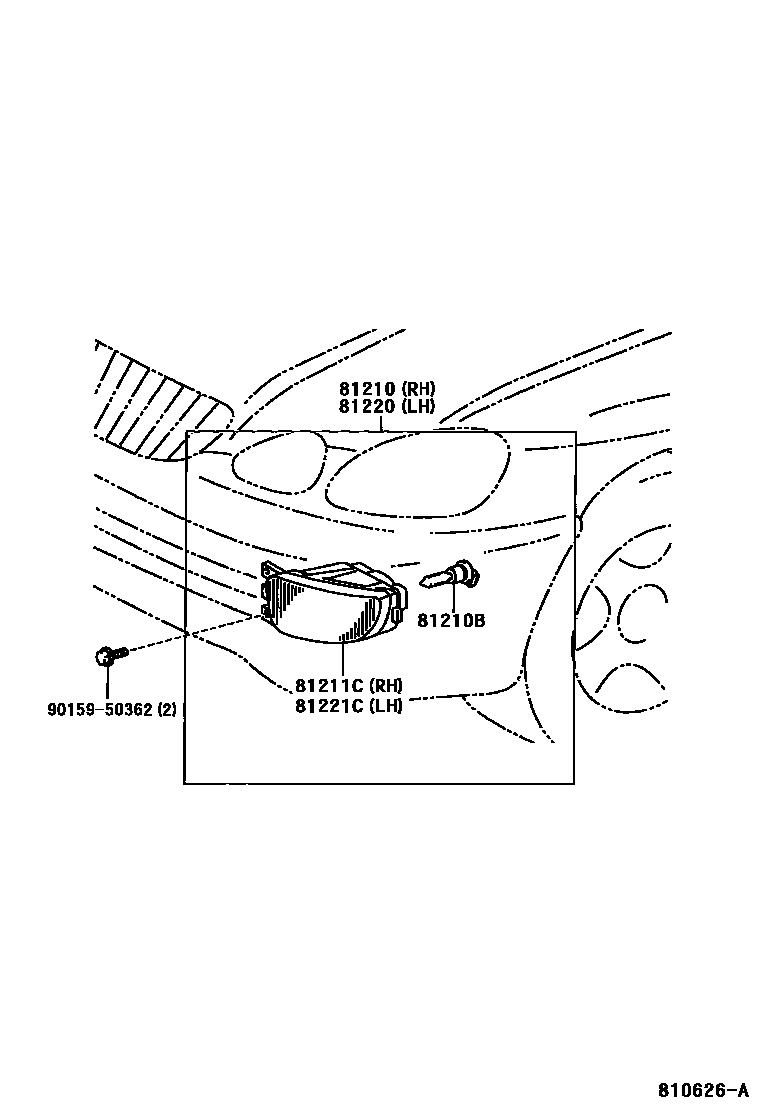

Parts diagram
81210LAMP ASSY, FOG
main81210-30230i199708-199710
main81210-30231i199710-199712
main81210-30232i199712-199807
sub81210-30H02
main81210-30233i199807-200007
main81210-30240i199708-199710
W(DISCHARGE HEADLAMP)
main81210-30241i199710-199712
W(DISCHARGE HEADLAMP)
main81210-30242i199712-199807
W(DISCHARGE HEADLAMP)
sub81210-30H03
main81210-30243i199807-200406
W(DISCHARGE HEADLAMP)
81210BBULB, FOG LAMP
main90981-13047×2i199708-200501
12V 51W,HALOGEN
81211CLAMP UNIT, FOG LAMP, RH
main81211-30230i199708-199710
main81211-30231i199710-199712
main81211-30232i199712-199807
sub81211-30H02
main81211-30233i199807-200007
main81211-30240i199708-199710
W(DISCHARGE HEADLAMP)
main81211-30241i199710-199712
W(DISCHARGE HEADLAMP)
main81211-30242i199712-199807
W(DISCHARGE HEADLAMP)
sub81211-30H03
main81211-30243i199807-200406
W(DISCHARGE HEADLAMP)
main81211-30244i200406
W(DISCHARGE HEADLAMP)
81220LAMP ASSY, FOG, LH
main81220-30210i199708-199710
main81220-30211i199710-199712
main81220-30212i199712-199807
sub81210-30H02
main81220-30213i199807-200007
main81220-30220i199708-199710
W(DISCHARGE HEADLAMP)
main81220-30221i199710-199712
W(DISCHARGE HEADLAMP)
main81220-30222i199712-199807
W(DISCHARGE HEADLAMP)
sub81210-30H03
main81220-30223i199807-200406
W(DISCHARGE HEADLAMP)
81221CLAMP UNIT, FOG LAMP, LH
main81221-30210i199708-199710
main81221-30211i199710-199712
main81221-30212i199712-199807
sub81211-30H02
main81221-30213i199807-200007
main81221-30220i199708-199710
W(DISCHARGE HEADLAMP)
main81221-30221i199710-199712
W(DISCHARGE HEADLAMP)
main81221-30222i199712-199807
W(DISCHARGE HEADLAMP)
sub81211-30H03
main81221-30223i199807-200208
W(DISCHARGE HEADLAMP)
main81221-30224i200406
W(DISCHARGE HEADLAMP)
9015950362
main90159-50362

6 parts on this diagram · 1 diagram in section
