HEADLAMP

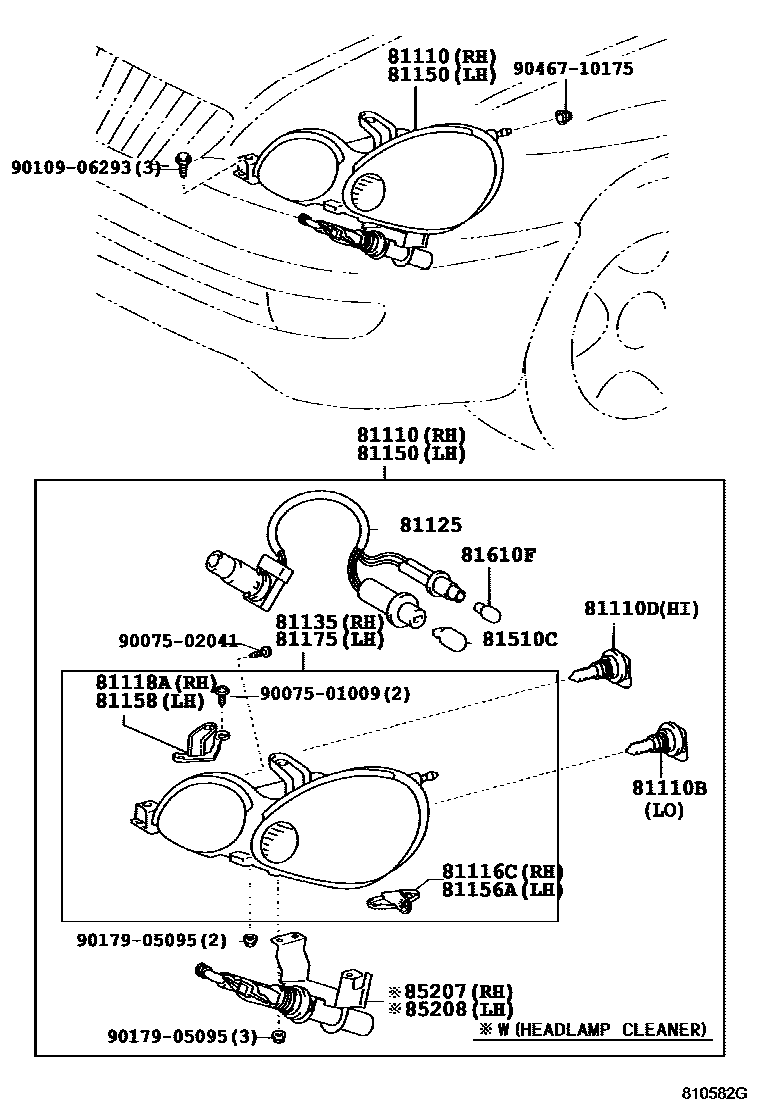

Parts diagram
81110HEADLAMP ASSY, RH
main81110-3A160i199708-200007
main81110-3A170i199708-200007
main81110-3A400i199708-200007
main81110-3A410i199708-199808
W(DISCHARGE HEADLAMP)
main81110-3A411i199808-199908
W(DISCHARGE HEADLAMP)
sub81110-3A412
main81110-3A412i199908-200007
W(DISCHARGE HEADLAMP)
main81110-3A500i199708-200007
W(HEADLAMP CLEANER)
main81110-3A510i199708-199808
W(DISCHARGE HEADLAMP)
main81110-3A510i199708-199808
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81110-3A511i199808-199908
W(DISCHARGE HEADLAMP)
sub81110-3A512
main81110-3A511i199808-199908
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
sub81110-3A512
main81110-3A512i199908-200007
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81110-3A512i199908-200007
W(DISCHARGE HEADLAMP)
main81110-3A520i199708-200007
W(HEADLAMP CLEANER)
main81110-3A530i199708-199808
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81110-3A531i199808-199908
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
sub81110-3A532
main81110-3A532i199908-200007
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81110-3A630i200007-200501
main81110-3A640i200007-200501
W(HEADLAMP CLEANER)
main81110-3A650i200007-200501
W(DISCHARGE HEADLAMP)
main81110-3A650i200007-200501
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81110-3A670i200007-200501
main81110-3A680i200007-200501
W(HEADLAMP CLEANER)
main81110-3A690i200007-200501
W(DISCHARGE HEADLAMP)
main81110-3A700i200007-200501
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13047i199708-200501
12V 51W,HALOGEN
81110DBULB(FOR HEADLAMP, NO.2)
main90080-81041i199708-200501
12V 65W
sub90981-13046
81116CBRACKET, HEADLAMP, RH
main81116-30860i199708-200501
81118ABRACKET, HEADLAMP, RH
main81118-30860i199708-200501
81125CORD, HEADLAMP
main81125-3A170i199708-200501
81135UNIT ASSY, HEADLAMP, RH
main81130-3A160i199708-200007
main81130-3A170i199708-200007
main81130-3A390i199708-200007
main81130-3A400i199708-200007
main81130-3A410i199708-199808
W(DISCHARGE HEADLAMP)
main81130-3A411i199808-200007
W(DISCHARGE HEADLAMP)
sub81130-3A412
main81130-3A500i199708-200007
W(DISCHARGE HEADLAMP)
main81130-3A510i199708-199808
W(DISCHARGE HEADLAMP)
main81130-3A510i199708-199808
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81130-3A511i199808-200007
W(DISCHARGE HEADLAMP)
sub81130-3A512
main81130-3A511i199808-200007
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
sub81130-3A512
main81130-3A520i199708-200007
W(HEADLAMP CLEANER)
main81130-3A530i199708-199808
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81130-3A531i199808-200007
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
sub81130-3A532
main81130-3A630i200007-200501
main81130-3A640i200007-200501
W(HEADLAMP CLEANER)
main81130-3A650i200007-200501
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81130-3A650i200007-200501
W(DISCHARGE HEADLAMP)
main81130-3A670i200007-200501
main81130-3A680i200007-200501
W(HEADLAMP CLEANER)
main81130-3A690i200007-200501
W(DISCHARGE HEADLAMP)
main81130-3A700i200007-200501
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
81150HEADLAMP ASSY, LH
main81150-3A480i199708-200007
main81150-3A490i199708-200007
main81150-3A520i199708-200007
main81150-3A530i199708-199808
W(DISCHARGE HEADLAMP)
main81150-3A531i199808-199908
W(DISCHARGE HEADLAMP)
sub81150-3A532
main81150-3A532i199908-200007
W(DISCHARGE HEADLAMP)
main81150-3A620i199708-200007
W(HEADLAMP CLEANER)
main81150-3A630i199708-199808
W(DISCHARGE HEADLAMP)
main81150-3A630i199708-199808
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81150-3A631i199808-199908
W(DISCHARGE HEADLAMP)
sub81150-3A632
main81150-3A631i199808-199908
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
sub81150-3A632
main81150-3A632i199908-200007
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81150-3A632i199908-200007
W(DISCHARGE HEADLAMP)
main81150-3A640i199708-200007
W(HEADLAMP CLEANER)
main81150-3A650i199708-199808
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81150-3A651i199808-199908
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
sub81150-3A652
main81150-3A652i199908-200007
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81150-3A750i200007-200501
main81150-3A760i200007-200501
W(HEADLAMP CLEANER)
main81150-3A770i200007-200501
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81150-3A770i200007-200501
W(DISCHARGE HEADLAMP)
main81150-3A790i200007-200501
main81150-3A800i200007-200501
W(HEADLAMP CLEANER)
main81150-3A810i200007-200501
W(DISCHARGE HEADLAMP)
main81150-3A820i200007-200501
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
81156ABRACKET, HEADLAMP, LH
main81156-3A150i199708-200501
81158BRACKET, HEADLAMP, LH
main81158-3A150i199708-200501
81175UNIT ASSY, HEADLAMP, LH
main81170-3A480i199708-200007
main81170-3A490i199708-200007
main81170-3A510i199708-200007
main81170-3A520i199708-200007
main81170-3A530i199708-199808
W(DISCHARGE HEADLAMP)
main81170-3A531i199808-200007
W(DISCHARGE HEADLAMP)
sub81170-3A532
main81170-3A620i199708-200007
W(HEADLAMP CLEANER)
main81170-3A630i199708-199808
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81170-3A630i199708-199808
W(DISCHARGE HEADLAMP)
main81170-3A631i199808-200007
W(DISCHARGE HEADLAMP)
sub81170-3A632
main81170-3A631i199808-200007
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
sub81170-3A632
main81170-3A640i199708-200007
W(HEADLAMP CLEANER)
main81170-3A650i199708-199808
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81170-3A651i199808-200007
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
sub81170-3A652
main81170-3A750i200007-200501
main81170-3A770i200007-200501
W(DISCHARGE HEADLAMP)
main81170-3A770i200007-200501
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
main81170-3A790i200007-200501
main81170-3A800i200007-200501
W(HEADLAMP CLEANER)
main81170-3A810i200007-200501
W(DISCHARGE HEADLAMP)
main81170-3A820i200007-200501
W(DISCHARGE HEADLAMP & HEADLAMP CLEANER)
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-13043i199708-200501
12V 21W
81610FBULB(FOR CLEARANCE LAMP)
main99132-12050i199708-200501
12V 5W
85207ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
main85207-30010i199708-200501
85208ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
main85208-30010i199708-200501
9007501009
main90075-01009
9007502041
main90075-02041
9010906293
main90109-06293
9017905095
main90179-05095
9046710175
main90467-10175

20 parts on this diagram · 2 diagrams in section
