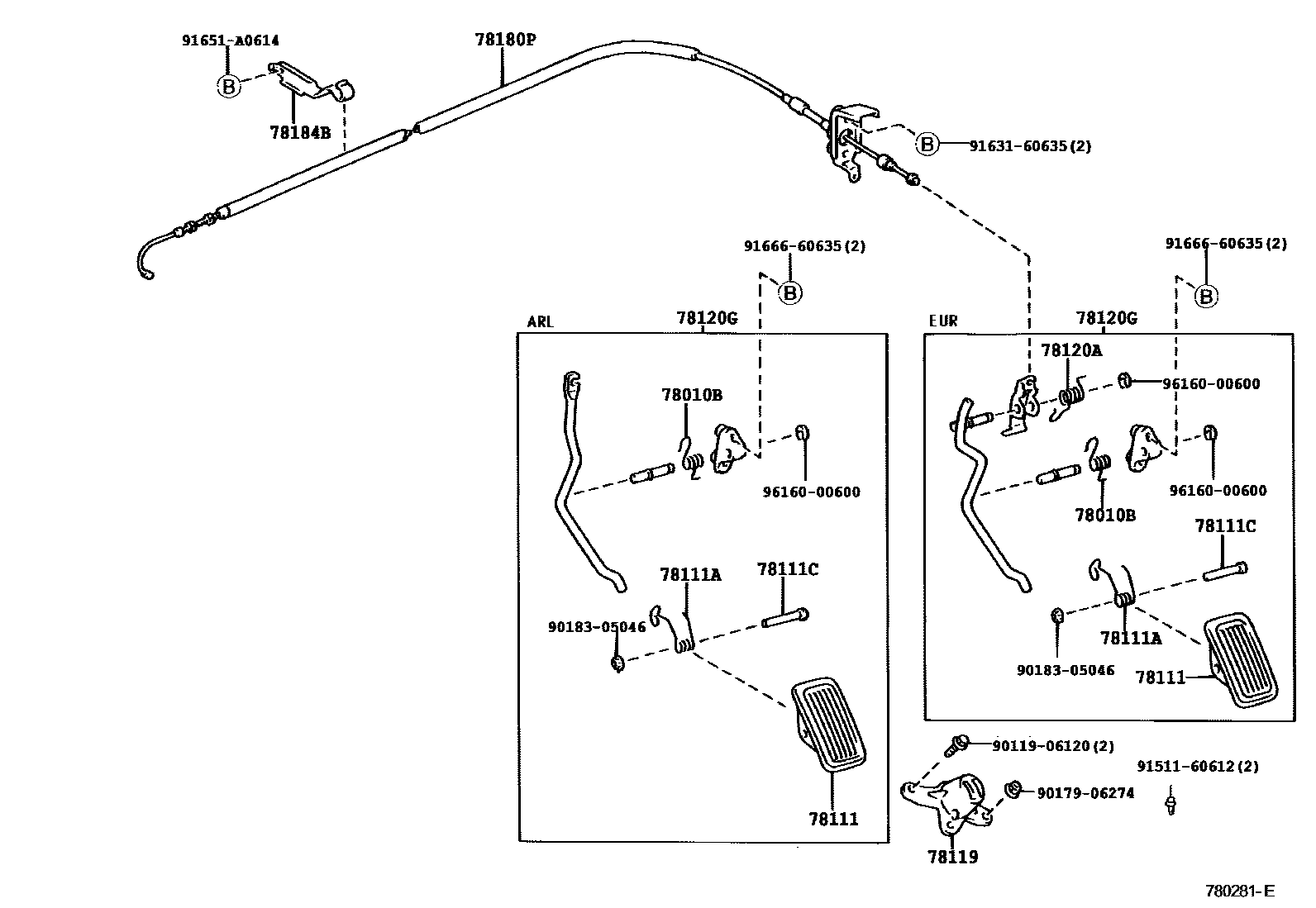

ACCELERATOR LINK

0001 1 0002 1 0003 1

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-18103iJZS160199708

78111PEDAL, ACCELERATOR

main78111-22020iJZS160199708-200007

main78111-33030iJZS160,UZS161..LHD200007

78111ASPRING (FOR ACCELERATOR PEDAL)

main90905-08001iJZS160199708

78111CPIN (FOR ACCELERATOR PEDAL)

main90241-05022iJZS160199708

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-30090iJZS160..GCC199708

main78119-30110iJZS160..ARL199708

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-29022iJZS160..EUR199708

78120GROD ASSY, ACCELERATOR PEDAL

main78010-30020iUZS161..RHD200007

main78010-30040iUZS161..LHD200007

main78120-3A080iJZS160..LHD..EUR199708-200007

main78120-3A081iJZS160..LHD..EUR200007

main78120-3A100iJZS160..ARL199708

main78120-3A110iJZS160..RHD..EUR199708

main78120-3A120iJZS160..GCC199708-200007

main78120-3A121iJZS160..GCC200007

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A600iJZS160..LHD199708-199801

main78180-3A610iJZS160..RHD199708

main78180-3A650iJZS160..LHD199801-199908

main78180-3A670iJZS160..LHD199908

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-30250iJZS160..RHD199708

9011906120

main90119-06120

9017906274

main90179-06274

9018305046

main90183-05046

9151160612

main91511-60612

9163160635

main91631-60635

91651A0614

main91651-A0614

9166660635

main91666-60635

9616000600

main96160-00600

17 parts on this diagram · 3 diagrams in section
